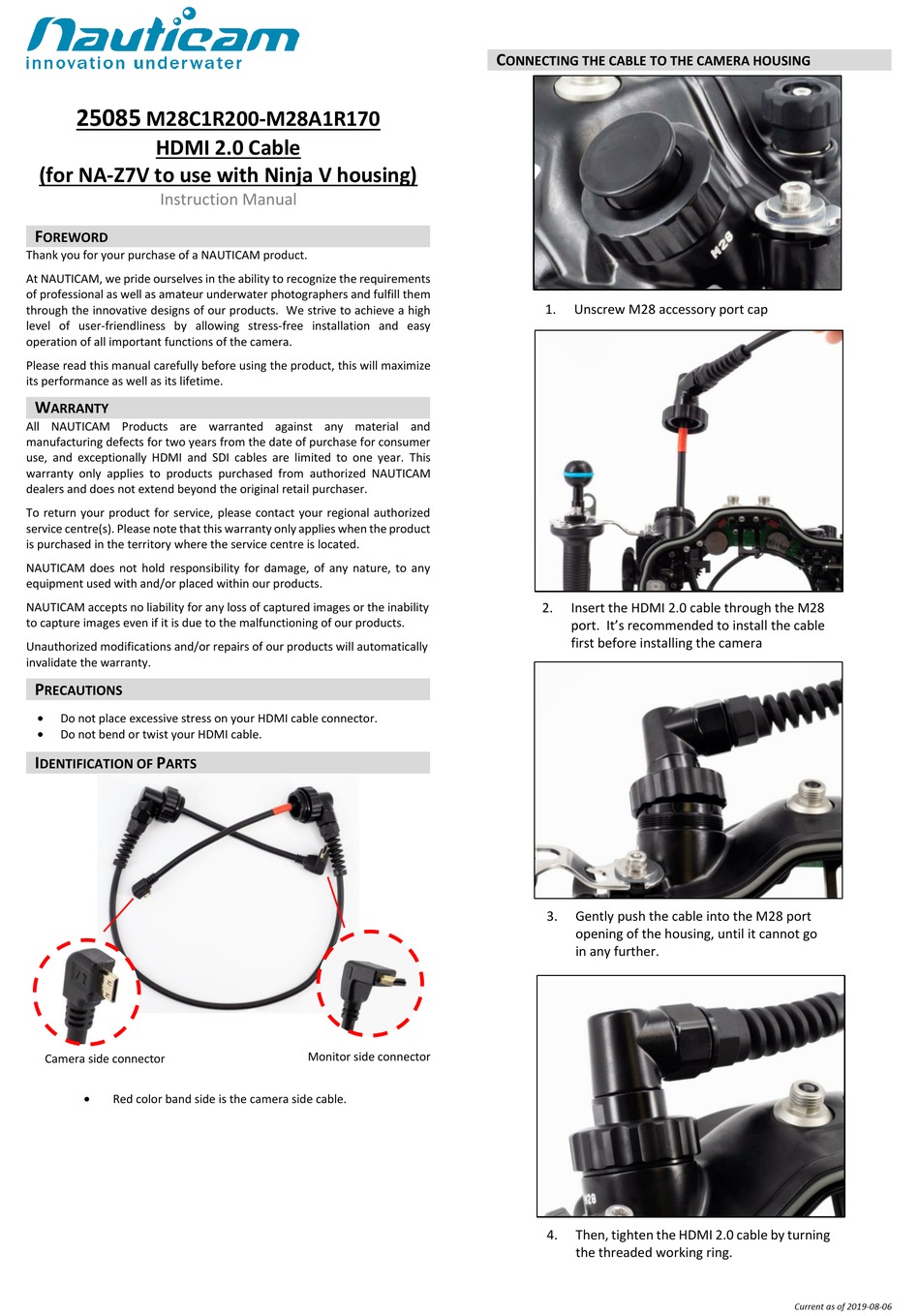

Nauticam M28C1R200-M28A1R170 Instruction Manual

25085
M28C1R200-M28A1R170
HDMI 2.0 Cable
(for NA-Z7V to use with Ninja V housing)
Instruction Manual
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use, and exceptionally HDMI and SDI cables are limited to one year. This
warranty only applies to products purchased from authorized NAUTICAM
dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.
P
RECAUTIONS

Do not place excessive stress on your HDMI cable connector.

Do not bend or twist your HDMI cable.
I P
DENTIFICATION OF ARTS
Camera side connector

Red color band side is the camera side cable.
Monitor side connector
C
ONNECTING THE CABLE TO THE CAMERA HOUSING
1. Unscrew M28 accessory port cap
2. Insert the HDMI 2.0 cable through the M28
port. It's recommended to install the cable
first before installing the camera
3. Gently push the cable into the M28 port
opening of the housing, until it cannot go
in any further.
4. Then, tighten the HDMI 2.0 cable by turning
the threaded working ring.
Current as of 2019-08-06
