Nauticam 26308 Instruction Manual

26308 8 8 8 TTL Converter for Nikon 2630 2630 2630 TTL Converter for Nikon TTL Converter for Nikon TTL Converter for Nikon
Instruction Manual
F F F F
OREWORD OREWORD OREWORD OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center is
located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
Product photos may differ from actual products.
P P P P
RECAUTIONS RECAUTIONS
RECAUTIONS RECAUTIONS
• Use only batteries approved for use in this product, do not mix old and
new batteries.
• Check the battery terminals before installing into the product.
• Remove batteries for storage, do not store the product in an
environment of high humidity.
• Do not leave the product in direct sunlight for prolonged periods.
• Keep out of reach of children, failure to do so could result in injury.
• Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in mal-
function.
I I I I P P P P
DENTIFICATION OF DENTIFICATION OF ARTS ARTS
DENTIFICATION OF DENTIFICATION OF ARTS ARTS

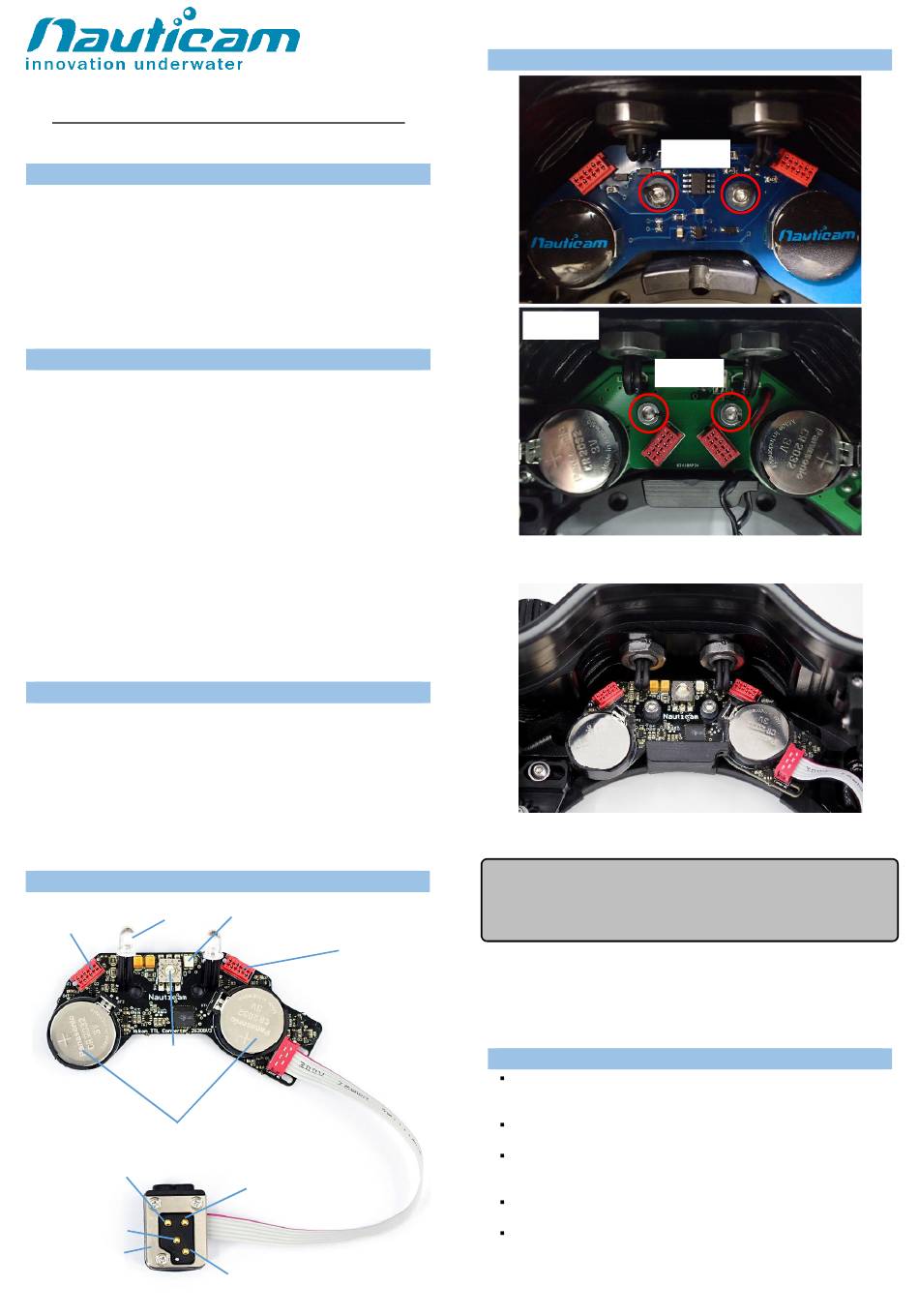

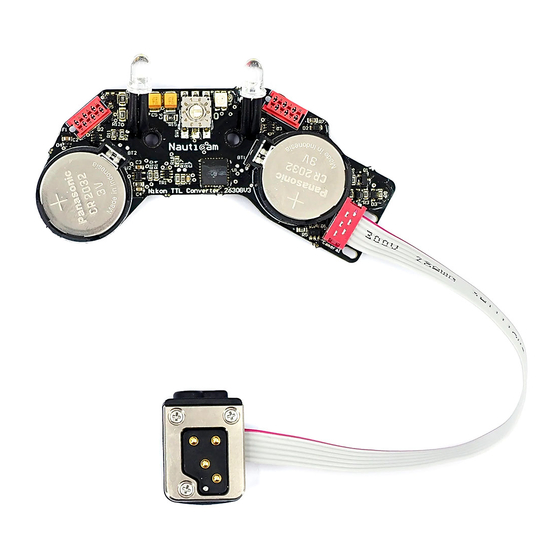

Status Indicator
Socket for electric
LED
bulkhead
TTL-converter switch
Battery compartment
Ready Clock
connector
Trigger connector
Ground connector
Socket for electric
bulkhead
TTL Data
connector
connector
TTL on/off
connector
connector
I I I I
NSTALLATION NSTALLATION
NSTALLATION NSTALLATION
NA-D500
Remove the original LED flash trigger from the housing by unscrewing
the two screws as indicated above.
Install the TTL converter and simultaneously insert both LEDs into the
optical bulkheads.
ATTENTION: Using any thin long tool (for example a small allen key) to
push both LEDs as deep inside the optical bulkheads as possible. The LED
must be close to the transparent optical element inside the bulkhead to get
normal quality of TTL work, otherwise you will get a wrong exposure of
underwater shots.
Insert CR2032 batteries into battery holders. Before installation check
that "plus" terminal of each battery is in Up position.
Carefully check fiber optical cables. Recommended to use only original
NAUTICAM fiber optical cables. In case of using bad quality or damaged
cables you will get a wrong exposure of underwater shots.
C C C C C C C C
ABLE ABLE ABLE ABLE ONNECTIONS ONNECTIONS ONNECTIONS ONNECTIONS
TTL-Converter maintains synchronization for underwater strobes by
Fiber Optical cable connection and by electric cable connection as
well.
Maximum 2 pcs Nauticam Fiber Optic cables can be connected (via
housing optical bulkheads).
IMPORTANT! Nauticam Dual fiber optic cables cannot support
IMPORTANT! IMPORTANT! IMPORTANT!
reliable TTL operation at optical bulkheads in this system, because of
their connector construction. Please use only single fiber optic cables.
Maximum 2 pcs Electric cables can be connected (via housing
electric bulkheads).
Dual electric cables ("Sea&Sea", "Ikelite") are supported by system at
each electric bulkhead as well.
Remove
Remove
