Instruction Manual for
21150 Extension Ring 50 with Lock III
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognise the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Each product is individually inspected and water pressure tested to ensure
optimum quality.
Please read this manual carefully before using the product, this will maximise
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorised modifications and/or repairs of our products will automatically
invalidate the warranty.
I P
DENTIFICATION OF ARTS

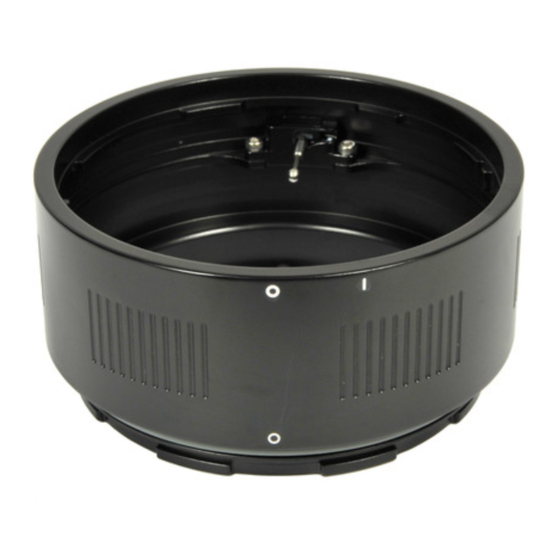

Extension ring
Locking pin
Locking tab for use with earlier version "pin locking" extension rings
Confirm that the extension ring is unlocked, with the locking pin pointing
upwards as shown.
Alignment
"O" mark
Align the "I" mark on the extension ring with the WHITE dot on the port.
Alignment "I"
mark
Gently push the extension ring towards the port until it cannot go any
further.
M E
OUNTING THE XTENSION
--- continue on next page ---
R P
ING ON A ORT
