Nauticam 70 Instruction Manual

Instruction Manual for

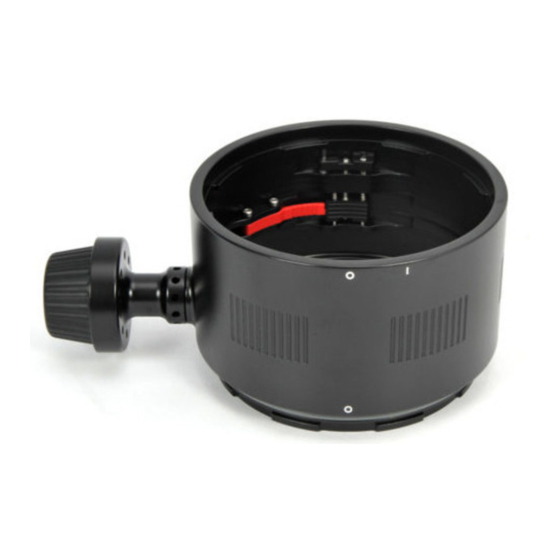

Extension Ring 70 with Focus knob for
Canon EF 11-24mm f/4L USM
PN# 21271
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of
our products. We strive to achieve a high level of user-
friendliness by allowing stress-free installation and easy operation
of all important functions of the camera.
Please read this manual carefully before using the product, this
will maximize its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased
from authorized NAUTICAM dealers and does not extend beyond
the original retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only
applies when the product is purchased in the territory where the
service center is located.
NAUTICAM does not hold responsibility for damage, of any nature,
to any equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or
the inability to capture images even if it is due to the
malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
M P
OUNT ON THE ORT
Please follow the instructions below to mount the Extension Ring
on a port.
1. Confirm that the Extension Ring is
unlocked, with the locking lever pointing
upwards as shown.
2. Align the "I" mark on the extension ring
with the WHITE dot on the port.
Gently push the extension ring towards the
port until it cannot go any further.
3. Turn the extension ring clockwise until the
white dot on the extension ring aligns with
the white dot on the port.
4. Push the locking device inwards. Ensure
that the extension ring is securely locked
with the port
To unlock, release the locking device and
reverse the above procedures.
Current as of 2020-05-25
