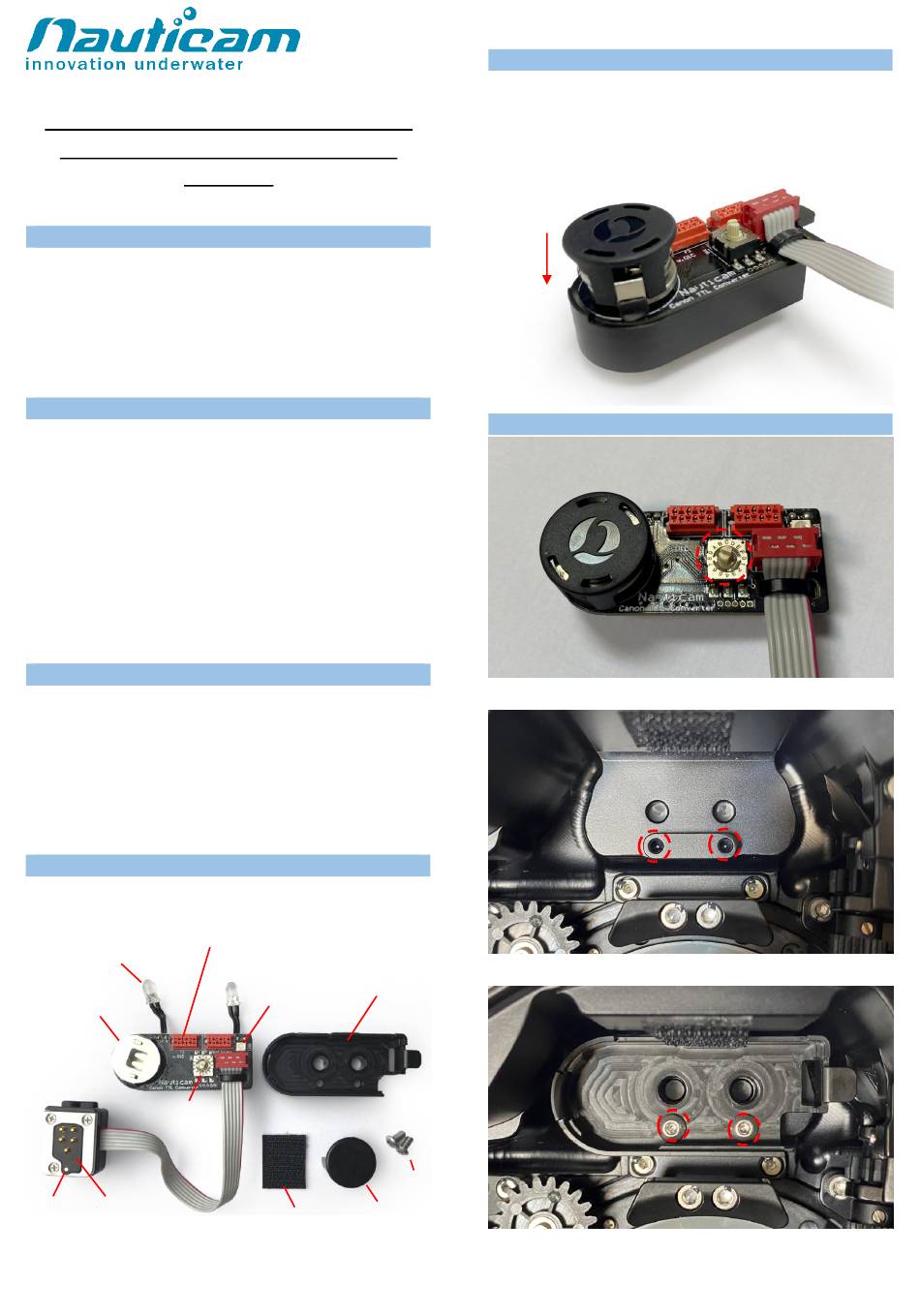

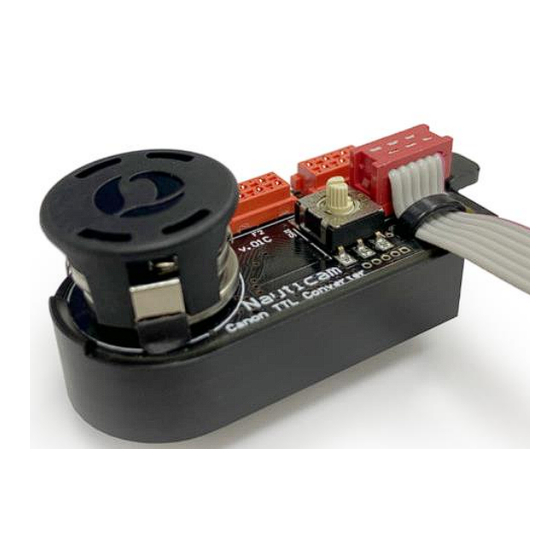

Nauticam 26323 Instruction Manual

26323
TTL Flash Trigger for Canon II - S
(For R6II from A571776 and R7 from
A583226)
Instruction Manual
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service center(s). Please note that this warranty only applies when the product
is purchased in the territory where the service center is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.
P
RECAUTIONS
 Use only batteries approved for use in this product, do not mix old and new
batteries.
 Check the battery terminals before installing into the product.
 Remove batteries for storage, do not store the product in an environment
of high humidity.
 Do not leave the product in direct sunlight for prolonged periods.
 Keep out of reach of children, failure to do so could result in injury.
 Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in mal-
function.
I P
DENTIFICATION OF ARTS
Socket for electric bulkhead
LED
Battery holder
TTL-converter
switch
Hot shoe
Locking pin
connector
PCB bracket
Status indicator
Screws
Battery holder bracket
Velcro
B I
ATTERIES NSTALLATION
Insert 2 x CR1632 batteries into battery holder， please check that the "+"
terminal of each battery is at 'Up' position. Gently push the battery holder
bracket down onto the battery holders. Reverse the above steps to remove
the batteries.
H I
OUSING NSTALLATION
Set the TTL-Converter rotary switch according to your strobes
Open the housing and find the two screws hole as indicated above.
Install the PCB bracket with the provided two screws.
Current as of 2023-09-22
