14.3 Connection Settings
Using the Channel 1 Connection Settings page you can modify the TCP Port number. The default
values are listed in Table 7.

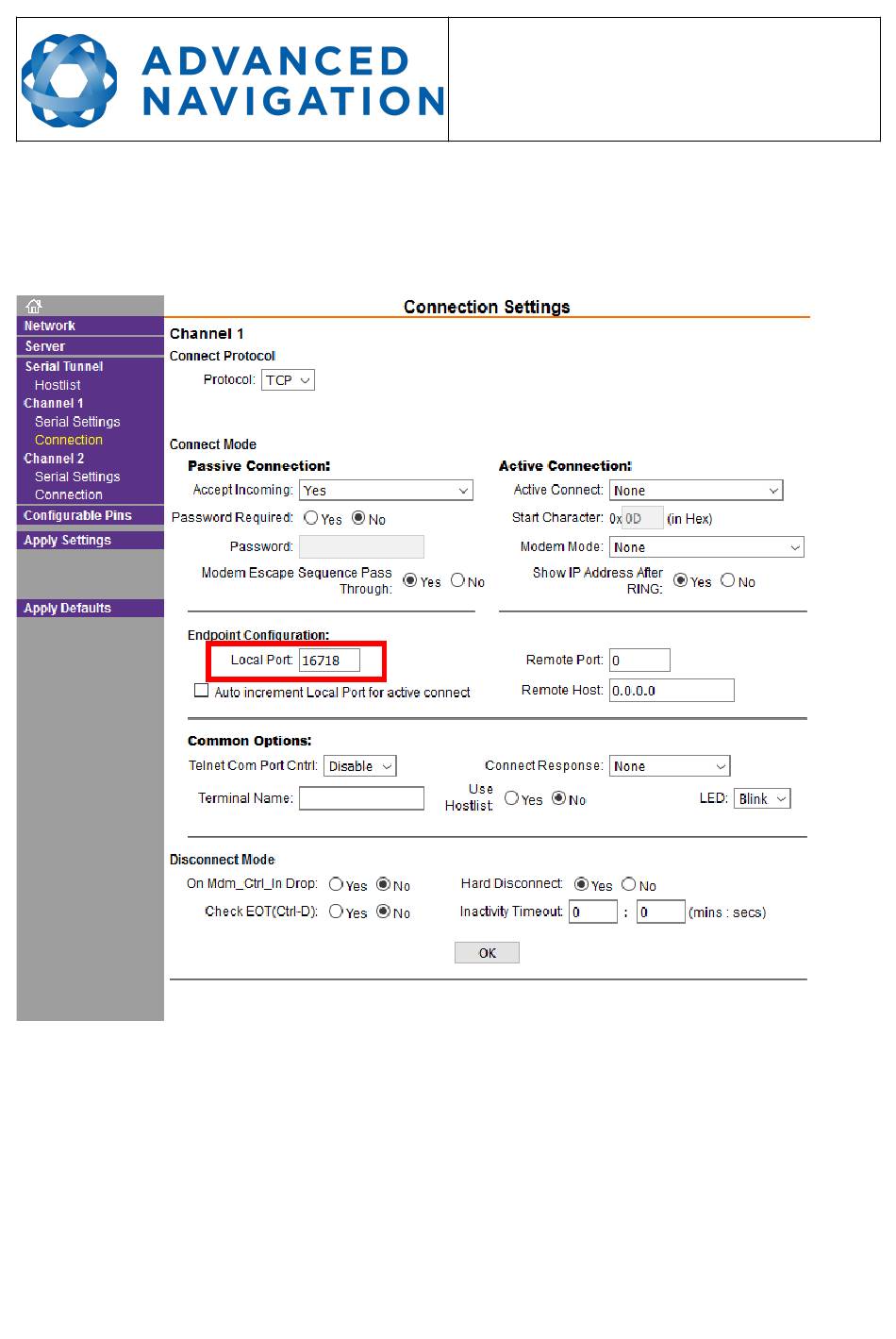

Illustration 7: Screenshot of Ethernet interface Connection Settings page
Click OK when done.
WARNING: if you reset the Ethernet interface back to its factory default settings using the
Apply Defaults page, you will need to reset the Channel 1 and Channel 2 Local Port
numbers from the default values of 10001 and 10002 to 16718 and 16719.
