14.2 Serial Settings
The Primary port is assigned to Channel 1 of the Ethernet interface. Using the Channel 1 Serial
Settings pages you can modify the baud rate used to connect the Spatial FOG Dual to the internal
Ethernet interface.
It is strongly recommended you do not modify the baud rates for Channel 1. These baud rates are
pre-configured to communicate at 115200 bps directly with the Spatial FOG Dual. If it is necessary
to change these rates, they must also be changed on the Spatial FOG Dual to match. Please
contact support@advancednavigation.com

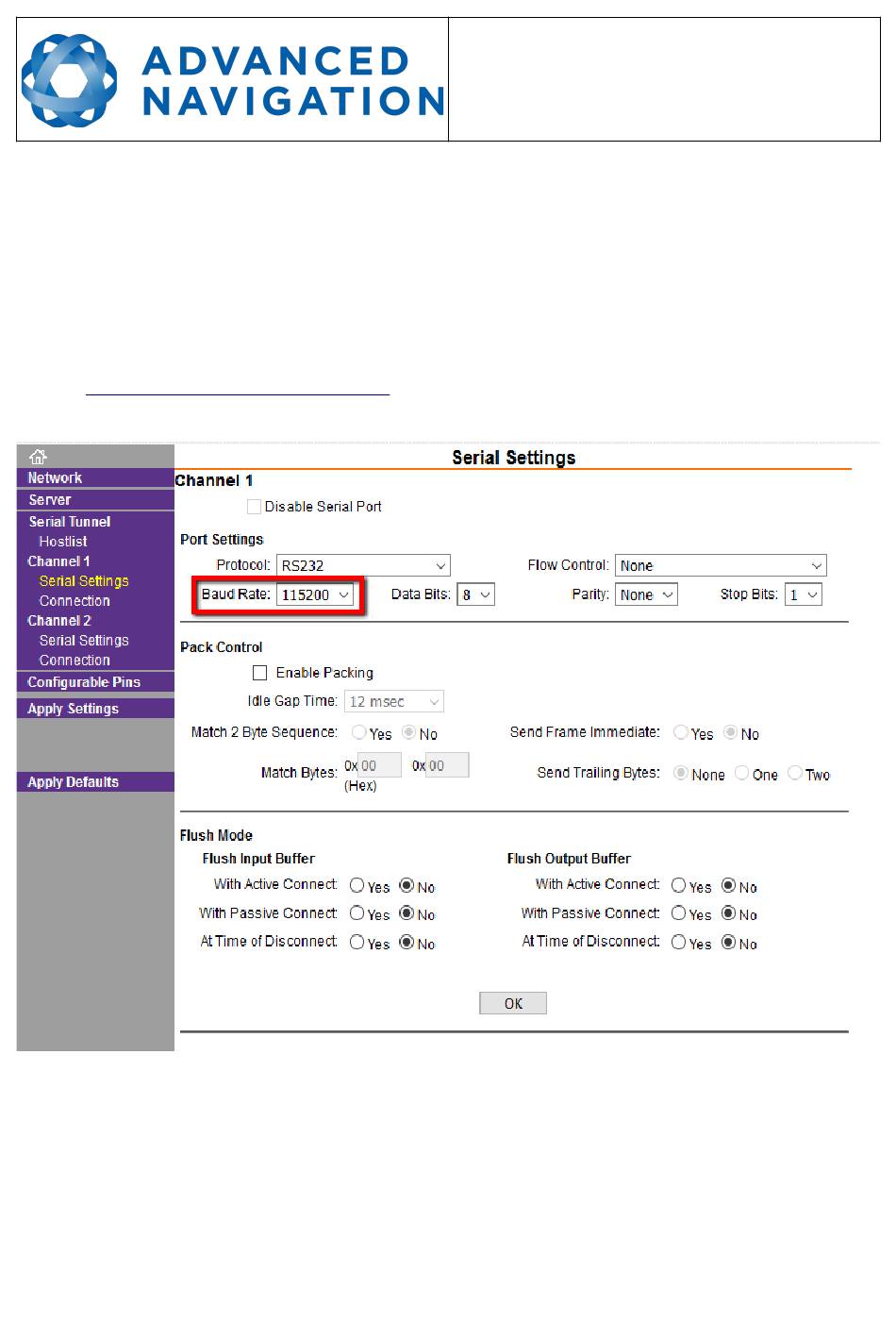

Illustration 6: Screenshot of Ethernet interface Serial Settings page
Click OK when done.
WARNING: if you reset the Ethernet interface back to its factory default settings using the
Apply Defaults page, you will need to set the CPU Performance Mode on the Server
Settings page to High, and then reset the Channel 1 and Channel 2 baud rates from the
default values of 9600 baud to 115200.
Spatial FOG Dual ETH
Supplementary Reference Manual
before you make any changes.
