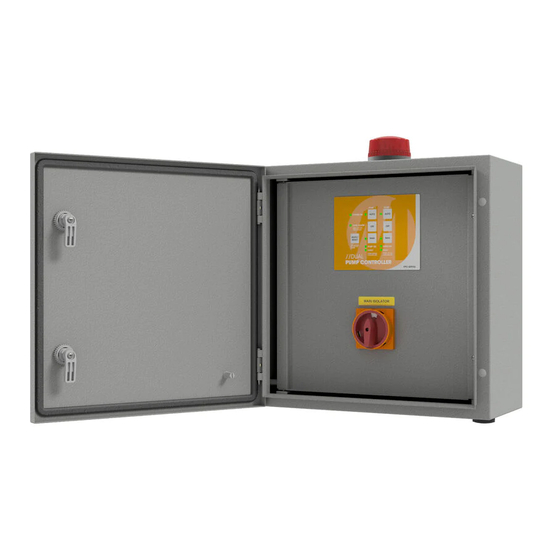

Summary of Contents for Matelec FPC-30020-CON

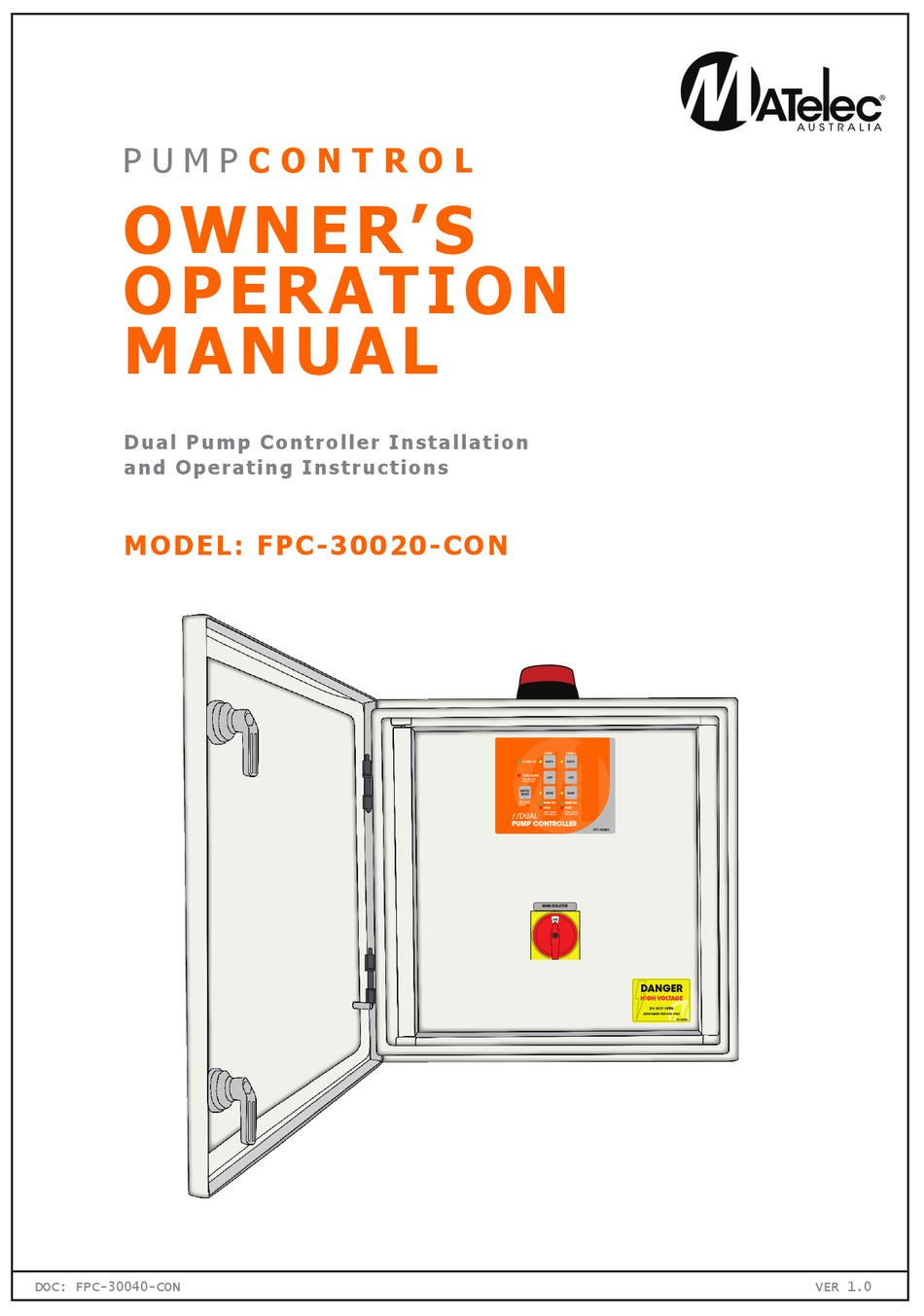

  • Page 1 C O N T R O L P U M P OW NE R’S OP ER ATION MANUAL Dua l Pu m p Co ntro ll e r Inst all ation an d O perating Instructio ns MOD EL: FP C-3002 0-CON PUMP ON PUMP ON FAULT...
  • Page 2: Table Of Contents

    Your Dual Pump Controller reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished MATelec Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’...
  • Page 3: Installation

    INSTALLATION MOUNTING FRONT SIDE VIEW 1. Controller enclosure must be mounted in a vertical position. 2. Ensure mounting method does not compromise enclosure weather proof rating. PUMP ON PUMP ON FAULT FAULT Mounting 3. Ensure access to main isolator is Frame/ MAIN ISOLATOR Wall...
  • Page 4: Getting Started

    OPERA TIO N This controller can perform control functions for most Dual Pump pumping applications. It is more than likely that the control parameters have already been set up for your particular application, however, hereunder you will find details of the setup and configuration options. There are 6 DIP switches located on the lower side of the control module, which allows for selecting “mode”...
  • Page 5 The basic logic on which a High or Low Level Alarm is determined, is set out in the Table below: Input 1 Input 2 Input 3 Input 4 Pump Alarm State Low Level Pump Stop Pump Start High Level Closed Open/Closed Open Open...
  • Page 6 In pressure pump mode some of the optional features are disabled, including maximum run alternation, anti-seize and maximum idle timers In order to activate current loop mode the enclosure must be opened and jumper J10 moved to the “current loop enabled”...
  • Page 7: Hrh-5 Data Sheet

    Sensitivity adjustable by a potentiometer (5-100kΩ) Measuring frequency 10Hz prevents polarization of liquid and raising oxidation of measuring probes Galvanically separated supply voltage UNI 24.. 240 VAC/DC HRH-5 DATA SHEET Output contact 1xchangeover/SPDT 8A/250V AC1 1-MODULE, mounting onto a DIN rail Device description Supply voltage terminals Terminals for conection of...
  • Page 8 Galvanically separated supp Output contact 1xchangeove EAN code 1-MODULE, mounting onto a 8595188136396 HRH-5 /UNI Device description HRH-5 Technical parameters Functions: Supply terminals: A1 - A2 Voltage range: 24... 240 V AC/ DC (AC 50 - 60 Hz) Indication of supply voltage Input: max.
  • Page 9 Output contacts i / Silver Alloy ) Connection Monitoring of two levels Monioring of one level V DC to 131 °F) F to 158 °F) ensors) Tank with Tank with monitored level monitored level 10 terminals Function Function PUMP UP Function PUMP DOWN x 0.7˝...
  • Page 10: Circuit Diagram

    CIRCUIT DIAGRAM...
  • Page 11: Notes

    NOTE S...
  • Page 12: At A Glance

    Manual Pumping Mode FLASHING A prime loss fault has occurred. DISTRIBUTED BY: INSTALLATION DATE: SERIAL NUMBER: MANUFACTURED BY MATelec AUSTRALIA EMAIL: info@matelecaustralia.com.au MATelec reserves the right to alter technical specifications without notice.
