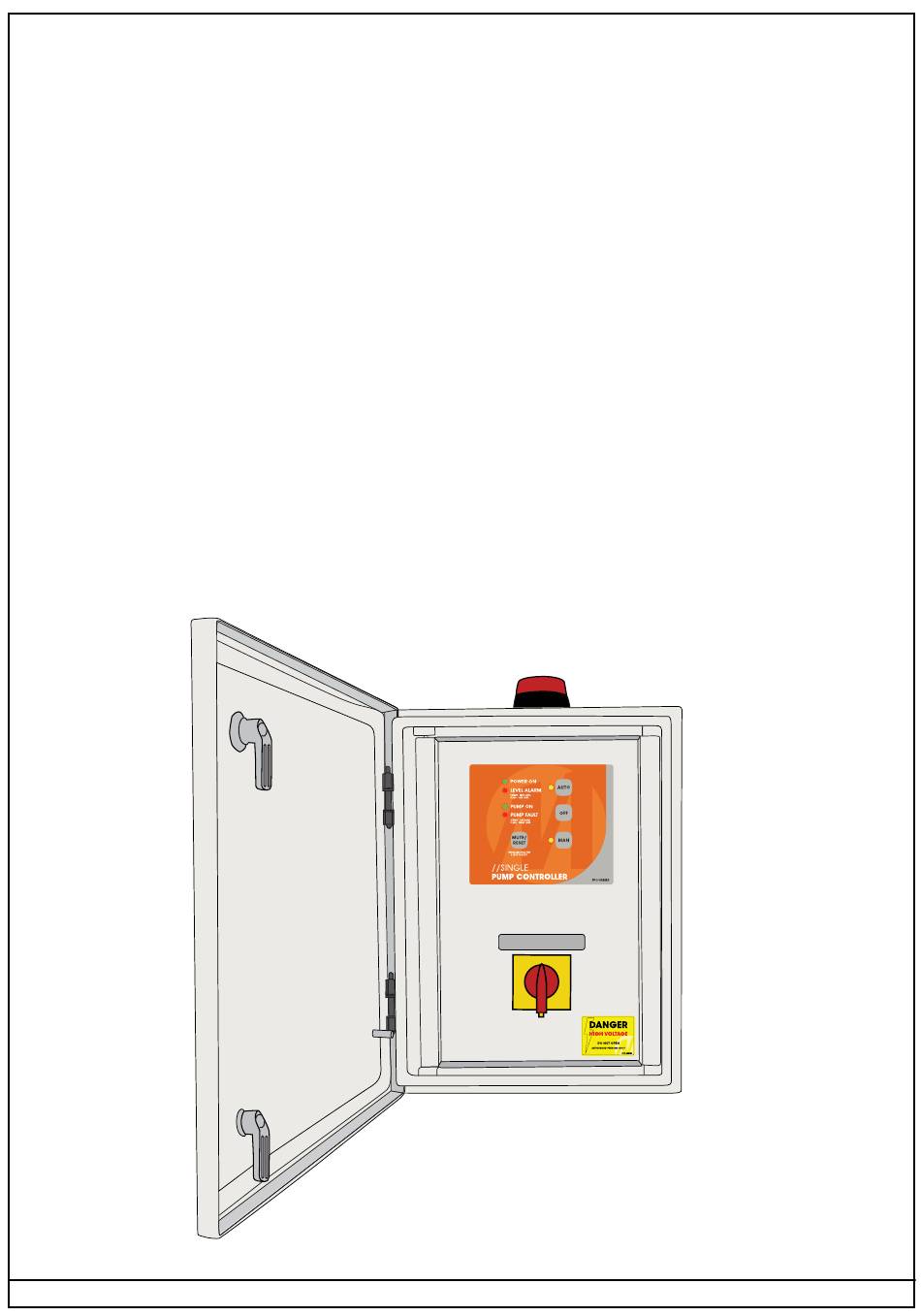

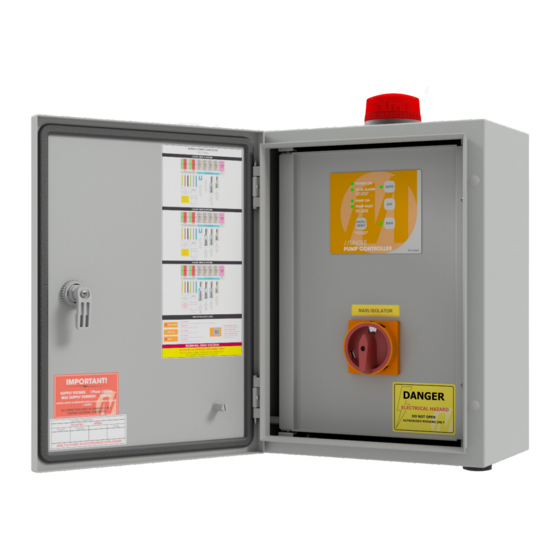

- Page 1 C O N T R O L P U M P OWNER ’ S OPER ATI O N MANU AL Single Pump Controller Installation and Operating Instructions MODEL: FPC-15205 MAIN ISOLATOR DOC: FPC 15205 REVISED: 072415...
- Page 2 WELCOME TO SINGLE PUMP CONTROL Your Single Pump Controller reflects the superior quality and attention to details in esign, engineering and manufacturing that has distinguished MATelec Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’...
- Page 3 INST ALLATIO N MOUNTING 1. Controller enclosure must be FRONT VIEW SIDE VIEW mounted in a vertical position. 2. Ensure mounting method does not compromise enclosure weather proof rating. 3. Ensure access to main isolator is not restricted. Mounting 4. Ensure cables/conduits Frame/ Wall entering the panel have...
- Page 4 OPER A TIO N This controller can perform control functions for most Single Pump pumping applications. It is more than likely that the con- There are 6 DIP switches located on the lower side of the control module, which allows for selecting “mode” and “feature” options, as per the following table: DIP Switch Position...
- Page 5 The basic logic on which a High or Low Level Alarm is determined, is set out in the Table below: Input 1 Input 2 Input 3 Input 4 Pump Alarm State Low Level Pump Stop Pump Start High Level Closed Open/Closed Open Open...
- Page 6 In pressure pump mode some of the optional features are disabled, including maximum run alternation, anti-seize and maximum idle timers. Mode ‘Current Loop’: Level Transducer (4-20mA) Configuration In order to activate current loop mode the enclosure must be opened and jumper J10 moved to the “current loop enabled”...
- Page 7 CIR C U IT DIA GRA M 240 Vac Supply MSW1 Main Isolator TOL1 Active Neutral 240VAC Thermal Pump Contactor 3P Overload Circuit Breaker 2A 240V 240N Transformer 12Vac 0Vac 12 Vac Contactor 18A 240Vac TOL1 NC Contact Stop Start High Strobe Buzzer...
- Page 8 Pump switched on to run. Turns all pumps off ON STEADY FAULT pump fault/overload If selected (the LED indicator occured. FLASHING set to Manual Pumping Mode A prime loss fault has occured. INSTALLATION DATE: DISTRIBUTED BY: SERIAL NUMBER: MANUFACTURED BY MATelec AUSTRALIA EMAIL: info@matelecaustralia.com.au...
