P U M P
O WNE R'S
O PE RAT I ON
M ANU AL

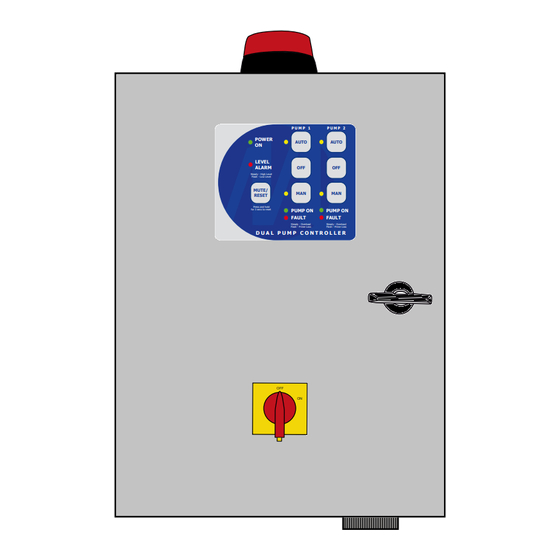

Dual Pump Controller Installation and
Operating Instructions
MODEL: FPC-30000
DOC: DPC 30000
C O N T R O L
P U M P 1
P U M P 2
POWER
AUTO
AUTO
ON
LEVEL
ALARM
OFF
OFF
Steady - High Level
Flash - Low Level
MUTE/
MAN
MAN
RESET
Press and hold
for 3 secs to reset
PUMP ON
PUMP ON
FAULT
FAULT
Steady - Overload
Steady - Overload
Flash - Prime Loss
Flash - Prime Loss
D U A L P U M P C O N T R O L L E R
REVISED: 010611
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Matelec FPC-30000
Summary of Contents for Matelec FPC-30000
- Page 1 C O N T R O L P U M P O WNE R’S O PE RAT I ON M ANU AL Dual Pump Controller Installation and Operating Instructions MODEL: FPC-30000 P U M P 1 P U M P 2 POWER AUTO AUTO LEVEL...
- Page 2 WELCOME TO DUAL PUMP CONTROL Your Dual Pump Controller reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished MATelec Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’...
-
Page 3: Installation
Bottom the weather proof rating of the Bottom enclosure. CONNECTION WIRING CONNECTION DETAIL FPC-30000 & FPC-30005 INPUT 3 INPUT 4 INPUT 1 HIGH START LEVEL LEVEL LEVEL FLOAT SWITCH CONNECTIONS... -
Page 4: Operation
OPERAT I O N This controller can perform control functions for most Dual Pump pumping applications. It is more than likely that the con- trol parameters have already been set up for your particular application, however, hereunder you will find details of the set up and configuration options. - Page 5 The basic logic on which a High or Low Level Alarm is determined, is set out in the Table below: Input 1 Input 2 Input 3 Input 4 Pump Alarm Low Level Pump Stop Pump Start High Level State Closed Open/Closed Open Open...
- Page 6 Maximum Run and Alternation Mode With DIP Switch 3 set to “Off” the unit will alternate as usual each time a pump start condition occurs. Additionally, the controller will automatically alternate pump duty if a pump has been running continuously for 30 minutes (maximum run timer) Setting this DIP Switch to “On”...
-
Page 7: Circuit Diagram
Dual Pump Controller ® CIR CU IT D I A GR AM FPC 30000 Australia P U M P 1 P U M P 2 POWER AUTO AUTO LEVEL ALARM Steady - High Level Flash - Low Level MUTE/ RESET Press and hold PUMP ON PUMP ON... - Page 8 MANUFACTURED BY MATelec AUSTRALIA EMAIL: info@matelecaustralia.com.au 3. Grey PMS Cool Grey 3U 1. Blue PMS 2757U MATelec reserves the right to alter technical specifications without notice 2. Dark Blue PMS 295U 3. Grey PMS Cool Grey 3U 1. Blue PMS 2757U 2.
