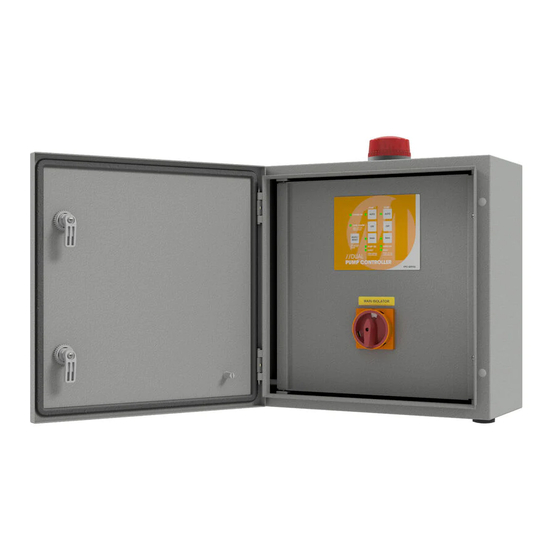

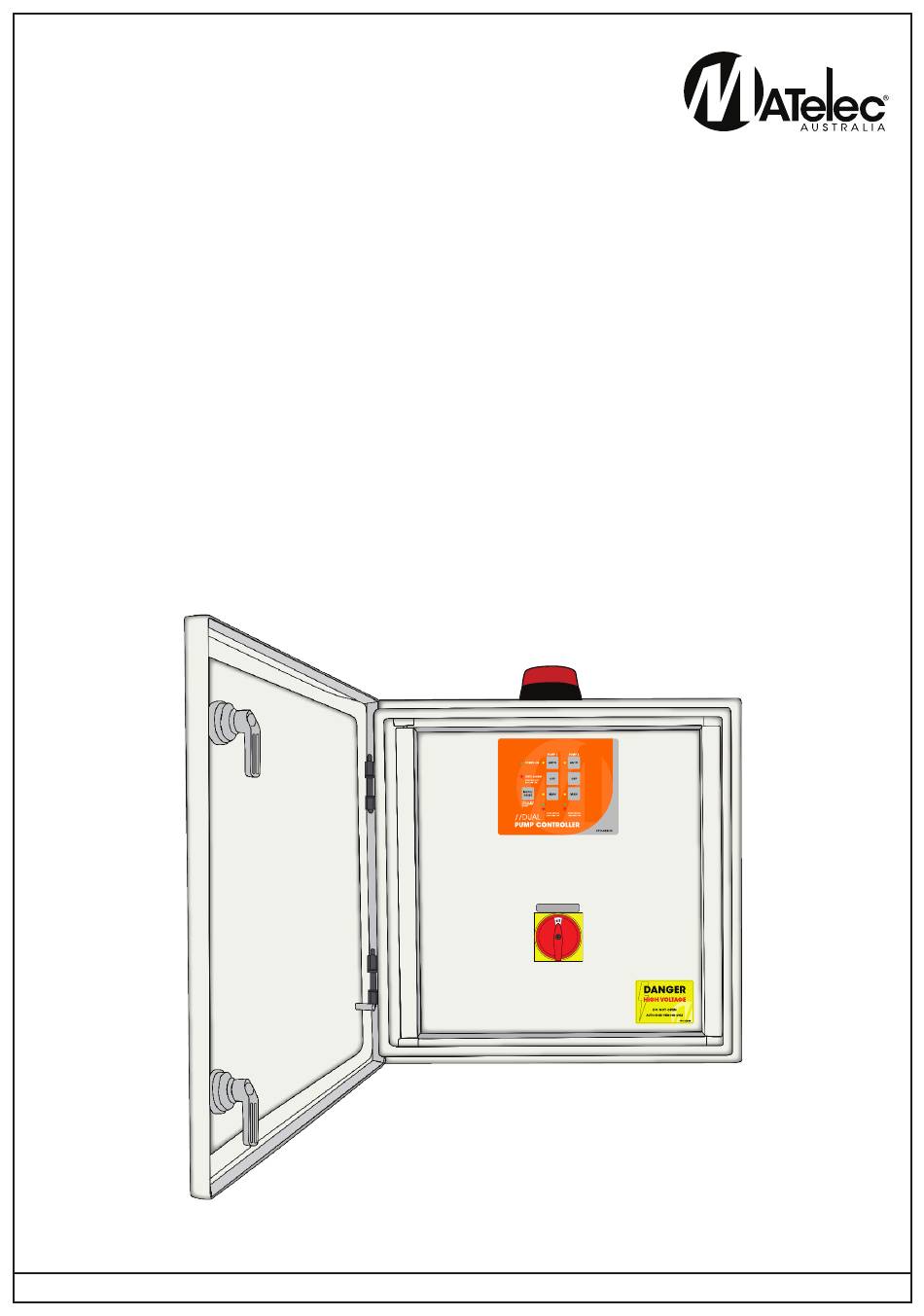

- Page 1 OW NE R’S OP ER ATION MANUAL Dua l Pu m p Co ntro ll e r Inst all ation an d O perating Instructio ns MOD EL: FP C-30040 PUMP ON PUMP ON FAULT FAULT MAIN ISOLATOR DOC: FPC-30040 VER 2.0...
- Page 2 Your Dual Pump Controller reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished MATelec Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’...
- Page 3 SUPPLY Thermal Switch INPUT SWITCHES PUMP 1 PUMP 2 415Vac Connections 12Vdc Connections Volt/Free INSTALLATION BRIDGE IF NOT REQUIRED 415Vac MAINS POWER MOUNTING SUPPLY HIGH LEVEL START BRIDGING LEVEL WIRE TO FRONT SIDE VIEW REMAIN IN 1. Controller enclosure must be LOW LEVEL PUMP 2 PUMP 1...
- Page 4 OPERA TIO N This controller can perform control functions for most Dual Pump pumping applications. It is more than likely that the control parameters have already been set up for your particular application, however, hereunder you will find details of the setup and configuration options. There are 6 DIP switches located on the lower side of the control module, which allows for selecting “mode”...
- Page 5 The basic logic on which a High or Low Level Alarm is determined, is set out in the Table below: Input 1 Input 2 Input 3 Input 4 Pump Alarm State Low Level Pump Stop Pump Start High Level Closed Open/Closed Open Open...
- Page 6 In pressure pump mode some of the optional features are disabled, including maximum run alternation, anti-seize and maximum idle timers In order to activate current loop mode the enclosure must be opened and jumper J10 moved to the “current loop enabled”...
- Page 7 CIRCUIT DIAGRAM PUMP ON PUMP ON FAULT FAULT 12Vdc TOL 1 TOL 2 CONTACTOR COILS PUMP 2 KEYPAD CONNECTION PUMP 1 KEYPAD CONNECTION KEYPAD CONNECTION PUMP 2 PUMP 2 PUMP 1 PUMP 1 PUMP 1 PUMP 2 PUMP 1 PUMP 2 PUMP 1 PUMP 2 PIN 1 FAULT...
- Page 8 Manual Pumping Mode FLASHING A prime loss fault has occurred. DISTRIBUTED BY: INSTALLATION DATE: SERIAL NUMBER: MANUFACTURED BY MATelec AUSTRALIA EMAIL: info@matelecaustralia.com.au MATelec reserves the right to alter technical specifications without notice.
