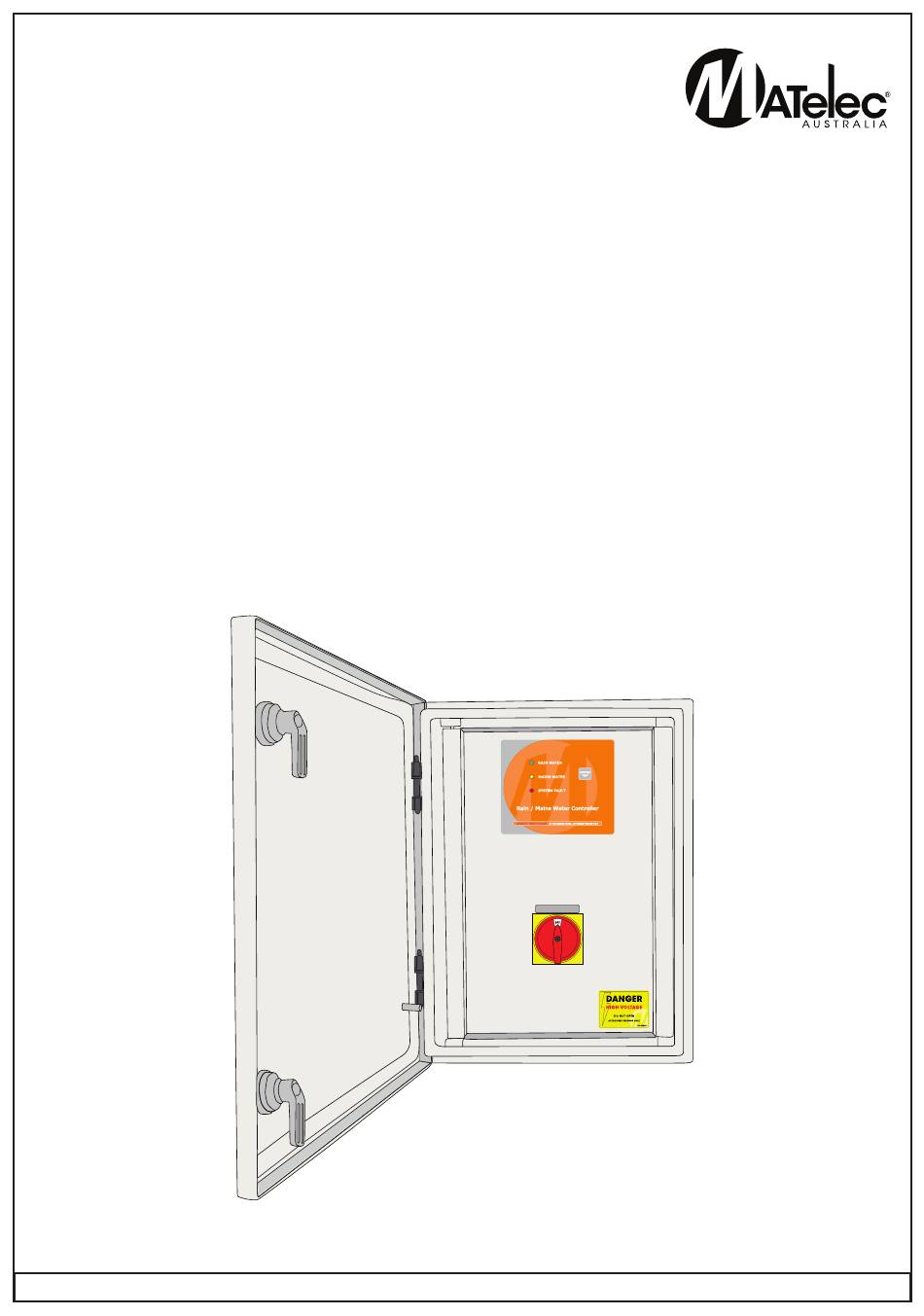

- Page 1 OP ER ATION MANUAL Ra in/ Ma ins Wate r Contr o lle r I n sta lla t io n and Op e ra ting Instru ction s MOD EL: FP C-12725 MAIN ISOLATOR DOC: FPC-12725 ME82 VER 1.1...
- Page 2 Congratulations on the purchase of this product. Your Liquid Level Control product reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished MATelec Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator many years of functional, reliable and ‘user friendly’ operation.
-
Page 3: Installation
3. Ensure access to main isolator is not restricted. Mounting Frame/ MAIN ISOLATOR Wall 4. Ensure cables/conduits entering the panel have mechanical protection and that the penetrations are sealed and do not compromise the weather proof rating of the enclosure. Bottom Bottom C O NNECT IO N WIRING CONNECTION DETAIL FPC-12725 FLOAT PRESS VALVE SWITCH SWITCH SUPPLY PUMP INPUT SOLENOID 415Vac 12Vdc BLUE REQUIRED 415Vac ® Australia... -
Page 4: Getting Started
G ETTI NG START ED O PERA TIONS The unique MATelec Rain/Mains Water Controller is designed to provide a continuous supply of water for a variety of uses, whilst prioritising and maximising the usage of Rain Water. The system comprises a Controller, a unique Valve and a Liquid Level Switch. The controller not only monitors the level of stored Rain Water, switching the valve accordingly, but also provides a switched output for the control of power to a pressure pumping system If Rain Water becomes available, the valve through which Mains Water is being supplied, is automatically pulsed closed by the controller, and at the same time, the 240Vac pump output contacts are energised. In the event of either ‘Rain Water Depletion’, “Prime Loss’ (if set up), ‘Power Failure’ or ‘Pump Failure’ the controller will immediately pulse the valve open, and de-energise the pump output contacts. The controller has a ‘System Test’ function which, if initiated, changes the status of the system to enable the operator to check valve and pump function at the press of a button. This test button doubles as a Reset Button to enable the operator to clear faults without having to enter the live voltage area of the enclosure. This product is ideally setup for Industrial and Commercial applications such as playing fields, golf courses and large commercial properties with multiple toilets, where a ’high flow’ system is required. The controller is suited to an outdoor installation, and is housed in a weatherproof lockable metal enclosure. - Page 5 FEATU RES • Unlimited pump options above ground or submersible • Compatible with an entire range of high low “head loss’ valves • No pressure reducing valves • No continuously actuated solenoid valves • Test Button - Provides change of system status, including pump and valve switching •...
- Page 6 NOTE S...
-
Page 7: Circuit Diagram
C IRCUIT D IAGRAM 415 Vac Supply A2 A3 MSW1 Main Isolator TOL1 RAIN WATER SYSTEM TEST MAINS WATER 415VAC Pump SYSTEM FAULT Contactor 3P Thermal Overload Circuit Breaker 2A Contactor 18A 240Vac A N E E A N C NO PUMP SUPPLY ME82... - Page 8 INDI C ATO RS PU SH B UT TONS ON STEADY Rain/Tank Water is in use RAIN WATER Press to reset fault or momentary SYSTEM FLASHING SYSTEM change valve state TEST The Pump is Running ON STEADY MAINS WATER Mains/Town Water is in use INSTALLATION DATE: INSTALLATION DATE: ON STEADY Either a Pump (overload) or SYSTEM FAULT a Prime Loss (if setup) Fault has occurred DISTRIBUTED BY: SERIAL NUMBER: SERIAL NUMBER: MANUFACTURED BY MATelec AUSTRALIA EMAIL: info@matelecaustralia.com.au MATelec reserves the right to alter technical specifications without notice.
