P U M P
OWNE R 'S
OP ERATI ON
M ANUA L
E c o no Re circul ati ng C ontr ol le r Insta llat ion
an d O perating Ins tr uctio ns
MOD EL: F PC-30002
DOC: FPC-30002
C O N T R O L
AUTO
PUMP 1
PUMP 2
MAN
MAN

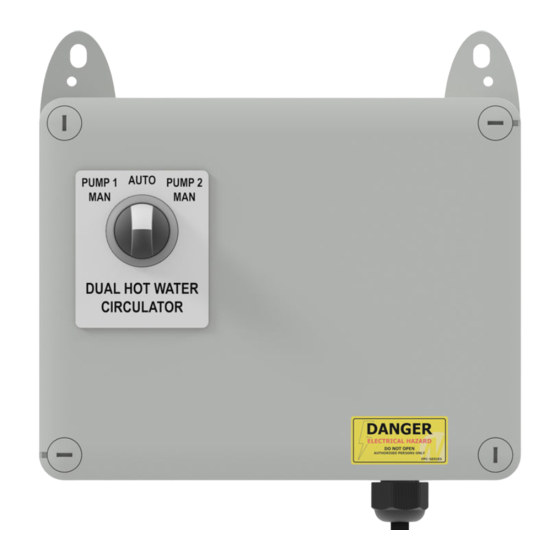

DUAL HOT WATER
CIRCULATOR
-DANGER-
HIGH VOLTAGE
DO NOT OPEN COVER
AUTHORISED
PERSONS ONLY
FPC-SERIES
VER 1.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Matelec FPC-30002
Summary of Contents for Matelec FPC-30002
- Page 1 E c o no Re circul ati ng C ontr ol le r Insta llat ion an d O perating Ins tr uctio ns MOD EL: F PC-30002 AUTO PUMP 1 PUMP 2 DUAL HOT WATER CIRCULATOR -DANGER- HIGH VOLTAGE DO NOT OPEN COVER AUTHORISED PERSONS ONLY FPC-SERIES DOC: FPC-30002 VER 1.0...
- Page 2 I NST ALLATION MOUNTING FRONT 1. Controller enclosure must be mounted in a vertical position. 2. Ensure mounting method does not compromise enclosure weather proof rating. AUTO PUMP 1 PUMP 2 3. Ensure cables/conduits entering the panel have mechanical DUAL HOT WATER CIRCULATOR protection and that the penetrations are sealed and do...
- Page 3 SETTING UP MATELEC TIME CLOCK C OM- 3 031 4 23:36 1. To start switch, press Reset key AUTO 2. To adjust the present time, please press key, then press D+, H+, M+ to adjust the Days, Hours and Minutes.
- Page 4 OPERATION • Weatherproof Poly Enclosure • Pump 240Vac 6Amp (MAX) • Auto/Manual Selection • Mounting Brackets Included CIRCU IT DIAGRAM 10AMP PROGRAMMABLE TIMER SUPPLY PUMP 1 PUMP 1 R1/2 TIME AUTO CLOCK PUMP 2 PUMP 2...
