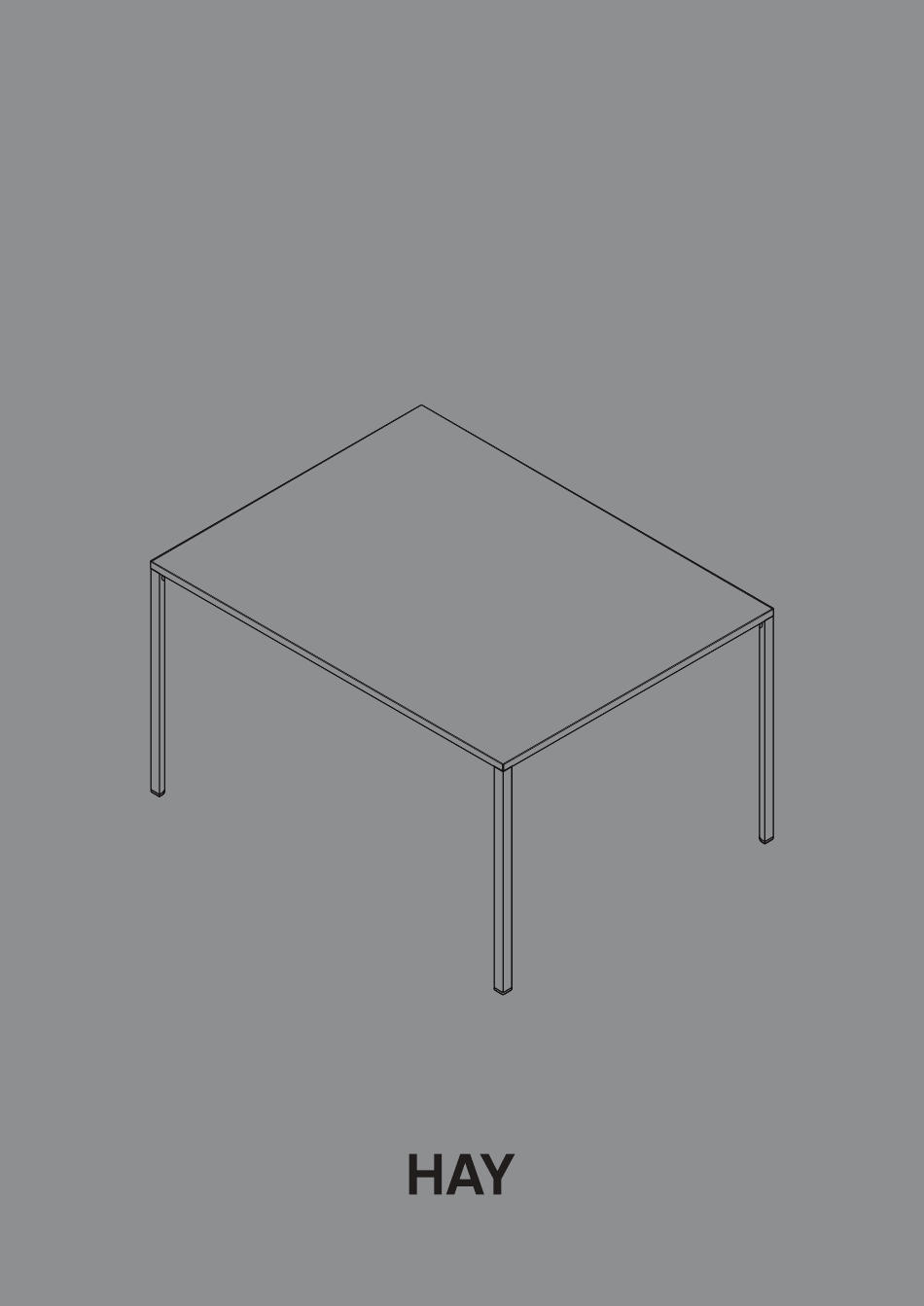

– INSTRUCTION MANUAL –
NEW ORDER
TABLE GROUP 2
4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A
DESIGN BY STEFAN DIEZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEW ORDER 4A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hay NEW ORDER 4A

Summary of Contents for Hay NEW ORDER 4A

  • Page 1 – INSTRUCTION MANUAL – NEW ORDER TABLE GROUP 2 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A DESIGN BY STEFAN DIEZ...

  • Page 3: Table Of Contents

    – TABLE OF CONTENTS – TABLES TABLE OVERVIEW PARTS OVERVIEW TABLE ASSEMBLY INSTRUCTIONS 6-16 CONNECTORS TABLE WALL CONNECTOR INSTRUCTIONS 17-20 FRONT SHELF CONNECTOR INSTRUCTIONS 21-24 END SHELF CONNECTOR INSTRUCTIONS 25-28 END TRAY CONNECTOR INSTRUCTIONS 29-31 CABLE MANAGEMENT CABLE TRAY INSTRUCTIONS 32-34 CABLE CLIP INSTRUCTIONS 35-36...

  • Page 4: Table Overview

    – TABLE OVERVIEW – It is important to start by identifying your table model to ensure you follow the correct assembly instructions.                   ...
  • Page 5 – PARTS – TABLE PART  Corner knot*  Frame profile  Leg*  Tabletop  Extra support bar  Footrest**   Extra support bar   Support bar   Frame   Tabletop   Legs  ...
  • Page 6 – INFORMATION ON SUPPORT BARS – The tables in this manual use extra support bars (ESB) to reinforce their construction. You will find information below on how to mount them and find their correct position. (EXTRA SUPPORT BAR) The small dotted markings on the table frame should align with the marks indicated on the support bar connector.
  • Page 7 – SUPPORT BAR POSITIONS – POSITION TABLE          TABLE FRAME PROFILE 50 CM POSITION TABLE          TABLE        ...
  • Page 8     Insert the brackets into the two shortest table frame profiles . Then mount the    extra support bar connectors on both frame profiles and fasten them with       screws using tool .
  • Page 9  Insert the corner knots into the two table frame profiles from Step 1.  Then connect them with the other two profiles to close the frame.  Place the extra support bar/bars in between.
  • Page 10       Secure the frame with screws using tool in each corner.       ...
  • Page 11        Fasten the extra support bars with screws using tool       ...
  • Page 12 ONLY FOR HIGH TABLES 5A, 6A, 8A AND 12A WITH FOOTREST         Mount the legs to the footrest with screws using tool Start by loosely tightening all the screws before tightening them all completely. ...
  • Page 13  Connect the legs by threading them onto the tap of the corner knot.       Secure with screws using tool       ...
  • Page 14  Mount the tabletop by inserting it into one of the short ends. While applying upwards pressure in the middle, push the other short end down into place.
  • Page 15     Fasten the tabletop with the clips from underneath. Distribute the clips evenly.       Secure them with screws using tool          ...
  • Page 16 If the floor is uneven and the table is unstable, adjust the height of the feet until the table is stable.
  • Page 17 – INSTRUCTION MANUAL – TABLE WALL CONNECTOR – PARTS –    Connector x2 Wall connector x2 Screw x4...
  • Page 18  Start by inserting the wall connectors into the frame profile that is facing the wall.
  • Page 19  Mark the placement for the wall connector according to the height measurements below. Check that the holes are level and the connectors are fastened in a suitable and secure way before you start drilling (See page 43). High table 1097 mm Low table 737 mm...
  • Page 20  Mount the table from the top. Make sure that the connectors are parallel to the wall   connectors . Screw the bracket into place using the 4 screws and torx key. Finally mount the tabletop as described in the table instructions (page 14).

  • Page 21: Front Shelf Connector Instructions

    – INSTRUCTION MANUAL – FRONT SHELF CONNECTOR – PARTS –   Shelf connector x2 Screw x4...
  • Page 22  Mount the shelf connnectors onto the groove on the bottom of the shelf.
  • Page 23  Connect the table from the front. Then connect the shelf connector by angling it so that the profile locks into the groove at the bottom of the table frame, as illustrated below. WHEN MOUNTING You may need to apply some extra pressure to lock the connector in place.
  • Page 24  Finally, secure the connector from below with screws...

  • Page 25: End Shelf Connector Instructions

    – INSTRUCTION MANUAL – END SHELF CONNECTOR – PARTS –    End shelf connector x1 Screw x2 Screw x2...
  • Page 26 Unscrew the 2 sets of screws on the underside of the shelf to which the table is to be   mounted. Then mount the end shelf connector with screws...
  • Page 27 Connect the table from the top and make sure that the profile on the end shelf  connector locks into the groove on the bottom of the table frame, as illustrated below. WHEN MOUNTING You may need to apply some extra pressure to lock the end shelf connector in place.
  • Page 28  Finally, secure the end shelf connector from below with screws...

  • Page 29: End Tray Connector Instructions

    – INSTRUCTION MANUAL – END TRAY CONNECTOR – PARTS –   End tray connector x1 Screw x2...
  • Page 30 Connect the table from the top and make sure that the profile on the end tray  connector locks into the groove at the bottom of the table frame, as illustrated below. WHEN MOUNTING You may need to apply some extra pressure to lock the end tray connector in place.
  • Page 31   Finally, secure the end tray connector from below with screws...

  • Page 32: Cable Tray Instructions

    – INSTRUCTION MANUAL – CABLE TRAY WITH AND WITHOUT PLUG SOCKET – PARTS –    Tray Connector Screw x4 (for plug socket) (for plug socket)
  • Page 33  Mount the tray from the bottom by angling the tray and sliding the top profile into the groove on the table’s support bar. Push the tray forward to lock it into place.
  • Page 34 Mounting a STEP module (STEP trays only).  Mount the connectors on each side, as illustrated below.  Finally, mount the STEP module and lock it into place with screws...

  • Page 35: Cable Clip Instructions

    – INSTRUCTION MANUAL – CABLE CLIP...
  • Page 36 Mount cable clips from below by clicking them into the groove on the table frame (or a support bar), as illustrated below.

  • Page 37: Cable Guide Instructions

    – INSTRUCTION MANUAL – CABLE GUIDE...
  • Page 38 Mount the cable guide by pressing it into the groove on the inside of the table leg, starting from the bottom. Insert the cables through the slits. To remove the guide, pull it out starting from the bottom flap.

  • Page 39: Wall Mounting Guideline

    - GUIDELINE - WALL MOUNTING WOODEN WALLS Use suitable wood screws. CONCRETE OR BRICK WALLS Use suitable screws and expansion plugs. DRYWALL OR CHIPBOARD Use suitable expanding bolts. PLEASE NOTE These are only intended as guidelines. The buyer is responsible for the wall’s bearing capacity and for ensuring the correct mounting method is used.

  • Page 40: Care And Maintenance

    – CARE & MAINTENANCE – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your furniture. Please find our Care & Maintenance...
  • Page 44 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com ITEM NO. 850012 24/01/2022...
