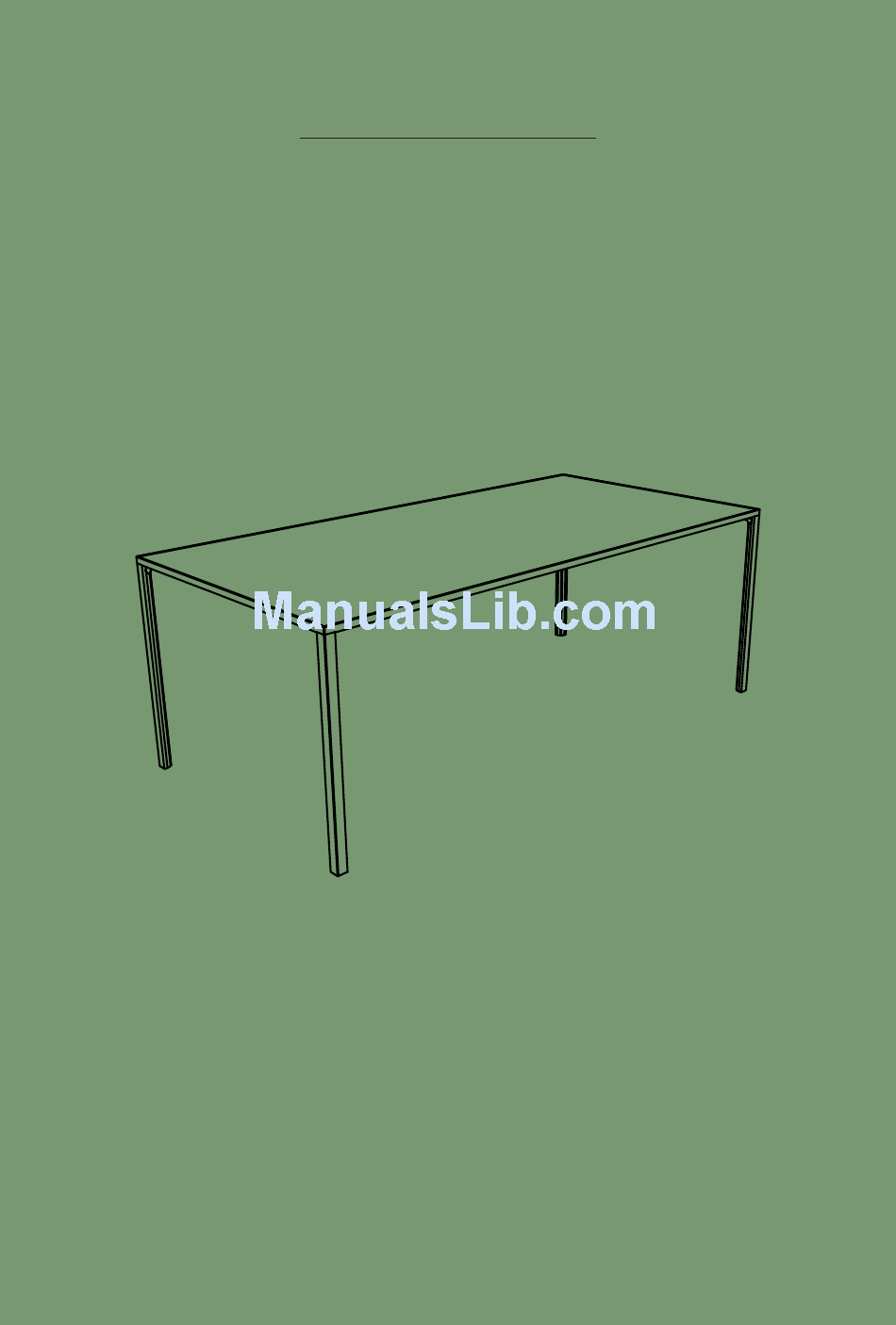

> I N ST R U C T I O N S M A N U A L <
N E W O R D E R TA B L E
B y S T E FA N D I E Z
HAY
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEW ORDER TABLE and is the answer not in the manual?

Questions and answers

Related Manuals for Hay NEW ORDER TABLE

Summary of Contents for Hay NEW ORDER TABLE

  • Page 1 > I N ST R U C T I O N S M A N U A L < N E W O R D E R TA B L E B y S T E FA N D I E Z...
  • Page 2 New Order Table works as a free standing table for the dining room, office or conference room but the functionality of the...
  • Page 3 > C A R E A N D M A I N T E N A N C E < When you move the table, make sure to lift it rather than Lacquered wood / For daily maintenance, wipe the pulling or pushing it, as that would damage the legs surface with a clean, dry cloth.
  • Page 4 > C O N T E N T S < PAGE 8-17 WITHOUT SUPPORT BAR PAGE 18-31 WITH 1 SUPPORT BAR PAGE 32-45 WITH 2 SUPPORT BARS PAGE 46-60 WITH 3 SUPPORT BARS...
  • Page 5 > W I T H O U T S U P P O R T B A R < > PA R T S < Frame profile long Short frame profile Leg x 4 Tabletop x 1 Corner knot x 4 Leg screw Frame screw Allen key...
  • Page 6 MOUNTING CORNER KNOTS MOUNTING FRAME PROFILES Insert the two corner knots in the short frame profile. Make sure Slide the frame profiles firmly onto the corner knots. the corner knots are pushed all the way in.
  • Page 7 ALIGNING FRAME PROFILE MOUNTING THE FRAME PROFILE In the other end of the table frame align and push the short frame profile into When mounting the frame profiles to the corner knot it is of great importance the long frame profile. that the two frame profiles align without gaps or unevenness.
  • Page 8 SECURING THE FRAME PROFILES MOUNTING THE LEGS Use the supplied torx key to fixate each corner using 8 screws. Make sure that the legs are pressed firmly against and onto the corner knots leaving no gaps. Any gaps can lead to difficulties when inserting the leg screws. x 32 FRAME SCREWS Locate the bag of screws named...
  • Page 9 MOUNTING THE LEGS PUSHING THE MIDDLE Firmly press all 4 legs onto the corner knots. Push the center of the tabletop gently upwards while guiding the Insert the leg screws in the holes in the frame profile and secure the legs by free side of the tabletop into the frame.
  • Page 10 > W I T H 1 S U P P O R T B A R < > PA R T S < Connector x 2 Support bar Corner knot x 4 connector x 2 Frame profile long Support bar x 1 Short frame profile...
  • Page 11 MOUNTING CONNECTOR Insert one connector in the short frame profile. Repeat by inserting one connector in the other short frame profile. Leg x 4 Tabletop x 1 MOUNTING SUPPORT BAR CONNECTOR Leg screw Frame screw Support bar Locate the mark on the short frame profile. x 48 screw x 8 Allen key...
  • Page 12 ALIGNING SUPPORT BAR CONNECTOR MOUNTING CORNER KNOTS Locate the center mark on the frame profile. Align the support bar connector so that Insert the two corner knots in the short frame profile. Make sure the mark on it aligns with the mark on the frame profile. the corner knots are pushed all the way in.
  • Page 13 MOUNTING SUPPORT BAR AND FRAME PROFILES ALIGNING SUPPORT BAR CONNECTOR SIDE Firmly push the support bar onto the support bar connector and slide the frame In the other end of the table frame align and push the short frame profile into profiles firmly onto the corner knots.
  • Page 14 SECURING SUPPORT BAR MOUNTING THE FRAME PROFILE Using the supplied allen key fixate the support bar to the support bar connector. When mounting the frame profiles to the corner knot it is of great importance that the two frame profiles align without gaps or unevenness. SUPPORT BAR SCREWS Locate the bag of screws named Support Bar Screws...
  • Page 15 1 1. SECURING THE FRAME PROFILES MOUNTING THE LEGS Use the supplied torx key to fixate each corner using 8 screws. Make sure that the legs are pressed firmly against and onto the corner knots leaving no gaps. Any gaps can lead to difficulties when inserting the leg screws. x 32 FRAME SCREWS Locate the bag of screws named...
  • Page 16 MOUNTING THE LEGS PUSHING THE MIDDLE Firmly press all 4 legs onto the corner knots. Push the center of the tabletop gently upwards while guiding the Insert the leg screws in the holes in the frame profile and secure the legs by free side of the tabletop into the frame.
  • Page 17 > W I T H 2 S U P P O R T B A R S < > PA R T S < Connector x 2 Support bar Corner knot x 4 connector x 4 Frame profile long Support bar x 2 Short frame profile x 2...
  • Page 18 MOUNTING CONNECTORS Insert two connectors in the short frame profile. Repeat by inserting two connectors in the other short frame profile. Leg x 4 Tabletop x 1 MOUNTING SUPPORT BAR CONNECTORS Leg screw Frame screw Support bar Locate the marks on the short frame profile. x 48 screw x 16 Allen key...
  • Page 19 ALIGNING SUPPORT BAR CONNECTOR MOUNTING CORNER KNOTS Locate the outer mark on the short frame profile. Align the support bar connector so that Insert the two corner knots in the short frame profile. Make sure the mark on it aligns with the mark on the frame profile. Repeat on the other short frame profile. the corner knots are pushed all the way in.
  • Page 20 MOUNTING SUPPORT BARS AND FRAME PROFILES ALIGNING SUPPORT BAR CONNECTOR SIDE Firmly push the support bars onto the support bar connectors. In the other end of the table frame align and push the short frame profile Slide the frame profiles firmly onto the corner knots. into the long frame profile and support bars.
  • Page 21 SECURING SUPPORT BARS MOUNTING THE FRAME PROFILE Using the supplied allen key fixate the support bar to the support bar connector. When mounting the frame profiles to the corner knot it is of great importance that the two frame profiles align without gaps or unevenness. SUPPORT BAR SCREWS Locate the bag of screws named Support Bar Screws.
  • Page 22 1 1. SECURING THE FRAME PROFILES MOUNTING THE LEGS Use the supplied torx key to fixate each corner using 8 screws. Make sure that the legs are pressed firmly against and onto the corner knots leaving no gaps. Any gaps can lead to difficulties when inserting the leg screws. x 32 FRAME SCREWS Locate the bag of screws named...
  • Page 23 MOUNTING THE LEGS PUSHING THE MIDDLE Firmly press all 4 legs onto the corner knots. Push the center of the tabletop gently upwards while guiding the Insert the leg screws in the holes in the frame profile and secure the legs by screwing free side of the tabletop into the frame.
  • Page 24 > W I T H 3 S U P P O R T B A R S < > PA R T S < Corner knot x 4 Support bar connector x 2 Connector x 6 Extra support bar connector x 4 Frame profile long x 2 Support bar x 1 Extra support bar x 2...
  • Page 25 MOUNTING CONNECTORS Insert three connectors in the short frame profile. Repeat by inserting three connectors in the other short frame profile. Leg x 4 Short frame profile Tabletop x 1 MOUNTING SUPPORT BAR CONNECTORS Leg screw x 4 Frame screw Support bar Extra support bar Locate the marks on the short frame profile.
  • Page 26 ALIGNING SUPPORT BAR CONNECTOR MOUNTING SUPPORT BAR CONNECTOR Locate the center mark on the frame profile. Align the support bar connector so that Using the supplied allen key screw in the two support bar screws mounting the mark on it aligns with the mark on the frame profile. the support bar connector to the connector.
  • Page 27 MOUNTING CORNER KNOTS MOUNTING SUPPORT BAR, EXTRA SUPPORT BARS AND FRAME PROFILES Insert the two corner knots in the short frame profile. Make sure Firmly push the support bar and the extra support bars onto the the corner knots are pushed all the way in. support bar connector and the extra support bar connectors.
  • Page 28 ALIGNING SUPPORT BAR CONNECTOR SIDE SECURING SUPPORT BAR In the other end of the table frame align and push the short frame profile into Using the supplied allen key fixate the support bar to the support bar connector. the long frame profile, support bar and extra support bar. SUPPORT BAR SCREWS Locate the bag of screws named Support Bar Screws...
  • Page 29 MOUNTING THE FRAME PROFILE SECURING THE FRAME PROFILES When mounting the frame profiles to the corner knot it is of great importance Use the supplied torx key to fixate each corner using 8 screws. that the two frame profiles align without gaps or unevenness. x 32 FRAME SCREWS Locate the bag of screws named...
  • Page 30 MOUNTING THE LEGS MOUNTING THE LEGS Make sure that the legs are pressed firmly against and onto the corner knots leaving no gaps. Firmly press all 4 legs onto the corner knots. Any gaps can lead to difficulties when inserting the leg screws. Insert the leg screws in the holes in the frame profile and secure the legs by screwing in the leg screws using the supplied allen key.
  • Page 31 PUSHING THE MIDDLE Push the center of the tabletop gently upwards while guiding the free side of the tabletop into the frame. NUDGING Work your way around the tabletop’s edge pushing down to ensure that it rests well in the frame profile.
  • Page 32 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.dk ITEM NO. 706325 5 710441 20824 2...
