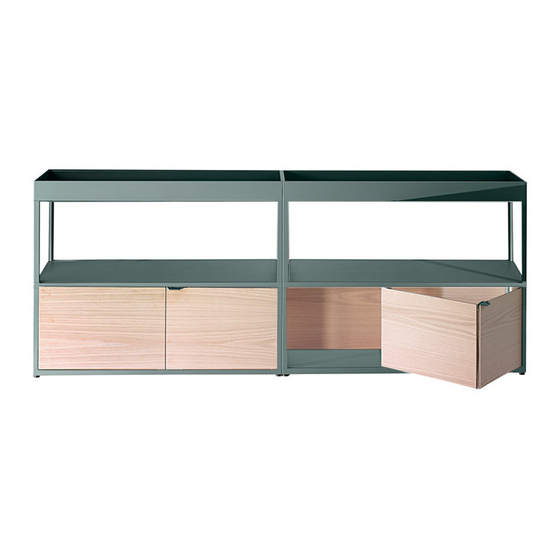

Hay NEW ORDER Instruction Manual

Shelving system
Hide thumbs Also See for NEW ORDER:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
> I N ST R U C T I O N S M A N U A L <
S H E LV I N G S Y S T E M
B y S T E FA N D I E Z
HAY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEW ORDER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hay NEW ORDER

Summary of Contents for Hay NEW ORDER

  • Page 1 > I N ST R U C T I O N S M A N U A L < N E W O R D E R S H E LV I N G S Y S T E M B y S T E FA N D I E Z...
  • Page 2 Shelving and storing units form the backbone of New Order Workspace Elements. Attached or detached tables in different heights for sitting as well as standing enable an...
  • Page 3 > C A R E A N D M A I N T E N A N C E < When you move the shelving system make sure to lift it scratched or appears matt, use lacquer care. Avoid using rather than pulling or pushing it, as that would damage detergents containing silicone, as that would seal the the mountings.
  • Page 4 > PA R T S < PROFILE SHELF The profiles are used to link the Shelves/Trays together. There are three types of profiles: There are three different types of shelves: Single, Double, and Corner. Top, Middle, and Bottom Shelf Top Shelf Middle Shelf Bottom Single...
  • Page 5 SHELF SHELF TRAY There are three different types of trays: The New Order System shown below is made from the following elements: Top, Middle, and Bottom 1 x Shelf Bottom 1m, 1 x Shelf Middle 1m, 1 x Tray Top 1m, 2 x Single Profile Sets...
  • Page 6 6 x SHELF DISCLAIMER The New Order System shown above is made from the following elements: The assembly instructions is to be used as a guide showcasing the 1 x Shelf Bottom 1m, 4 x Shelf Middle 1m, 1 x Shelf Top 1m, 5 x Single Profile Sets concept of the system.
  • Page 7 Place the bottom Shelves/Trays in the desired position and formation. LEVELING USING THE FEET If the New Order bottom Shelves/Trays are not level, adjust them by unscrewing the four adjustable feet. They can either be adjusted by unscrewing by hand or with an allen key.
  • Page 8 MOUNT PROFILE SET SCREW PLACEMENT When mounting the profiles to the Shelf/Tray make sure that the set screws are pointing towards the middle of the Shelf/Tray. DOUBLE PROFILE Mount the Double Profile where two Shelves/Trays need to be connected. CORNER PROFILE SINGLE PROFILE Mount the Corner Profile where three Mount the Single Profile in each outer...
  • Page 9 MIDDLE SHELVES/TRAYS The New Order System is constructed in a way that requires you to assemble one complete layer at a time. When a layer is finished you can move on to the next. Alternating between profiles and Shelves/Trays until you reach the top.
  • Page 10 The Top Shelves/Trays have only a connector on the bottom Each profile contains set screws that lock into the Shelf/Tray in order to stabilize the construction. side and a clean top. When you have finished building the New Order system make sure to tighten all set screws.
  • Page 11 > I N S T R U C T I O N S M A N U A L < N E W O R D E R PA N E L S B y S T E FA N D I E Z...
  • Page 12 > PA R T S < INSERT THE PANEL CLIPS Mount the clips in the grooves on the top and bottom of the panel. PANELS FOR SHELF There are four different types of panels: Side Panel, Back Panel 1m, Back Panel 1.5m, Back Panel 2m SIDE PANEL SOFTENING THE PLASTIC The plastic panel clip needs a small wiggle in...
  • Page 13 INSERTING THE PANELS INSERT THE PANEL CLIPS Mount the clips in the grooves on the top and bottom of the panel. WOODEN PANEL END FIRST PLASTIC PANEL END SECOND Insert the end of the panel made from wood Insert the end of the panel made from plastic into the profile first.
  • Page 14 MOUNTING THE PLASTIC SNAP LOCK SECURE THE PANEL IN PLACE After the wooden end of the panel is inserted in the profile move the plastic end Secure the panel in place with the clips between the panel and profile. of the panel to the second profile SNAPPING INTO PLACE The plastic end of the panel is made to bend thereby snapping into place in the groove in the profile.
  • Page 15 INSERT THE SIDE PANEL INSERT THE PANEL CLIPS Slide the panel from the inside of the shelving system. Mount the clips in the grooves on the top and bottom of the panel. Insert the wooden end of the panel into the groove in the profile. Make sure that the recess is pointing outwards.
  • Page 16 > I N S T R U C T I O N S M A N U A L < N E W O R D E R S L I D I N G D O O R S B y S T E FA N D I E Z...
  • Page 17 The cut out must be facing up when mounting the sliding doors SLIDING DOOR/DOORS There are two different door setups depending on your New Order dimensions. Systems 1m and below use a single Sliding Door whereas systems longer than 1m use two Sliding Doors.
  • Page 18 MOUNTING SLIDING DOOR TOP GLIDER The plastic panels snap into the groove in the profile securing the Sliding Door. Push the Glider in the groove on the top Shelf/Tray. Rotate it to hang the glider securely from the Shelf/Tray. 90° BOTTOMS UP Begin by inserting the bottom part of the plastic part into the groove in the profile and apply pressure moving upwards..
  • Page 19 BOTTOM GLIDER DOOR TO GLIDER Push the glider in the groove on the bottom Shelf/Tray. Align the end of the door that is not fixed to the shelving system to the Gliders. Rotate it to secure the Glider to the Shelf/Tray. TOP GLIDER BOTTOM GLIDER Start by pressing the Sliding Door into the top...
  • Page 20 MOUNTING THE HANDLE DOUBLE SECURITY Align the Handle with the holes in the recessed part of the Sliding Door. Press the pins into the Sliding Doors and allow the plastic bracket on the rear of the Sliding Door The Handle should be facing out relative to the shelving system. to snap to the Handle.
  • Page 21 > I N S T R U C T I O N S M A N U A L < N E W O R D E R W H E E L S B y S T E FA N D I E Z...
  • Page 22 > PA R T S < UNSCREW FEET Turn the bottom Shelf/Tray over and unscrew the feet from the base. WHEELS There are two different types of wheels: Wheel with brake, Wheel without brake STANDARD FEET MOUNTING WHEELS Mount the wheels using the supplied wrench. WHEEL WHEEL WITH BRAKE...
  • Page 23 > I N S T R U C T I O N S M A N U A L < DIAGONAL MOUNTING Mount identical wheels diagonally to ensure optimal stability. N E W O R D E R WA L L M O U N T I N G B R A C K E T Retighten all wheels three to four weeks after assembly.
  • Page 24 > PA R T S < LEVELING THE BRACKETS Use a spirit level to make sure the Wall Mounting Brackets are level prior to drilling. WALL MOUNTING BRACKETS There are two types of Wall Mounting Brackets: Brackets for Shelves and Brackets for Trays MARK HOLES While the Wall Brackets are held in place mark the center of the holes using a pen.
  • Page 25 DRILL HOLES UNSCREW FEET Remove the Wall Brackets and proceed to drill the holes using a drill for Remove feet or wheels before mounting the shelving system to the wall. the supplied dowel and screws. Turn the bottom Shelf/Tray over and unscrew the feet from the base. DOWEL AND SCREWS MOUNTING THE SHELVING SYSTEM Insert the provided dowel in the drilled holes.
  • Page 26 Brackets in extension of each other. PANELS FOR WALL MOUNT When mounting the special panel for the wall mounted New Order it is of great importance that the two cutouts point upwards. Otherwise they will not snap into place and the panel can not be mounted. The installation of the...
  • Page 27 > I N S T R U C T I O N S M A N U A L < N E W O R D E R B O O K E N D B y S T E FA N D I E Z...
  • Page 28 > PA R T S < INSERTING THE BOOKEND Start by inserting the Shelf Bookend in the groove in the Shelf. BOOKENDS There are five types of Bookends: Shelf Book Divider Left, Shelf Book Display, Shelf Book Divider With Stopper, Shelf Book Divider Right and Tray Book Divider LOWERING INTO PLACE Having inserted the end of the Bookend in the groove lower it until it rests on the Shelf.
  • Page 29 INSERTING THE BOOKEND Start by inserting the Tray Bookend in the groove in the Tray. LOWERING INTO PLACE Having inserted the end of the Bookend in the groove lower it until it rests on the Tray.
  • Page 30 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.dk...
