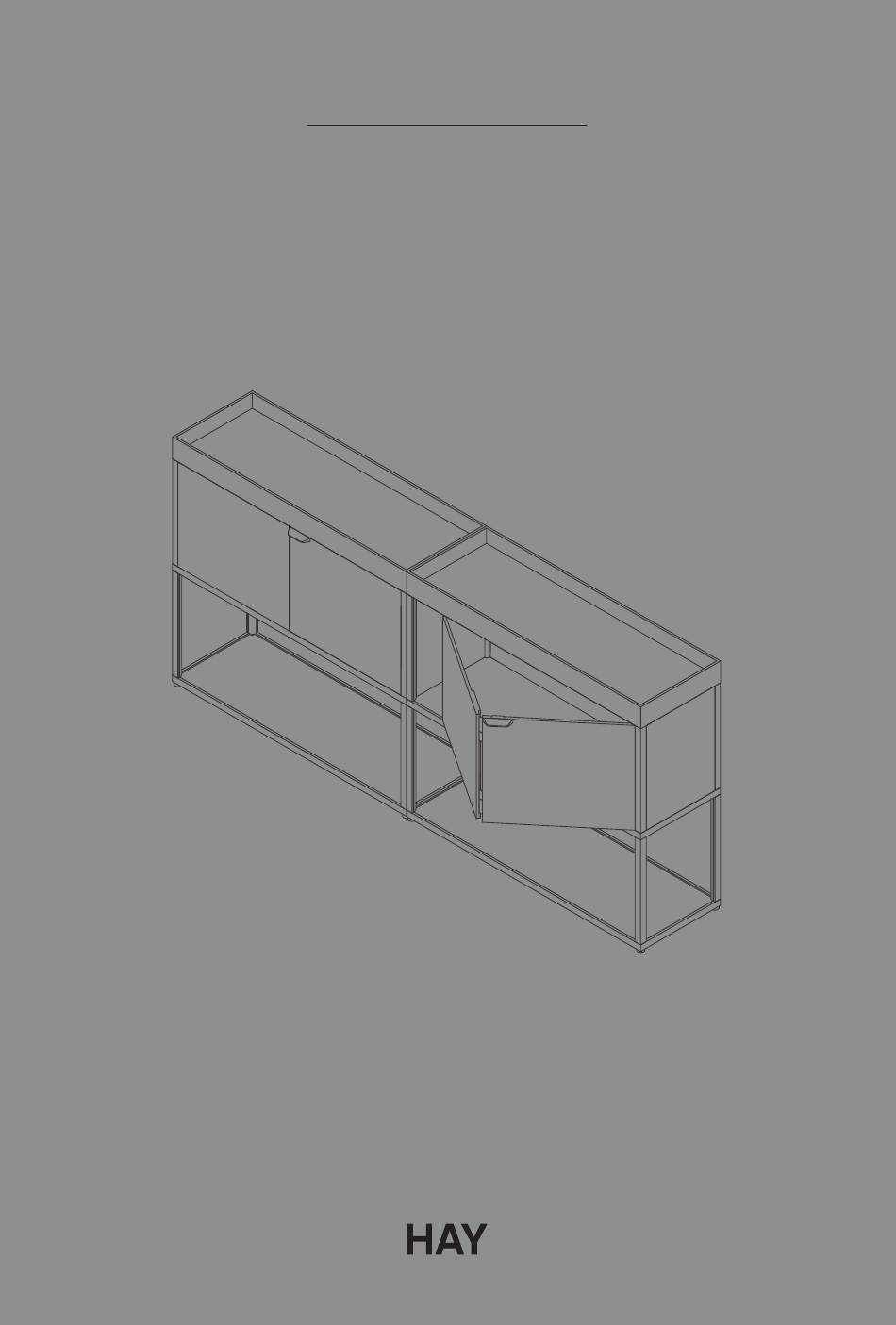

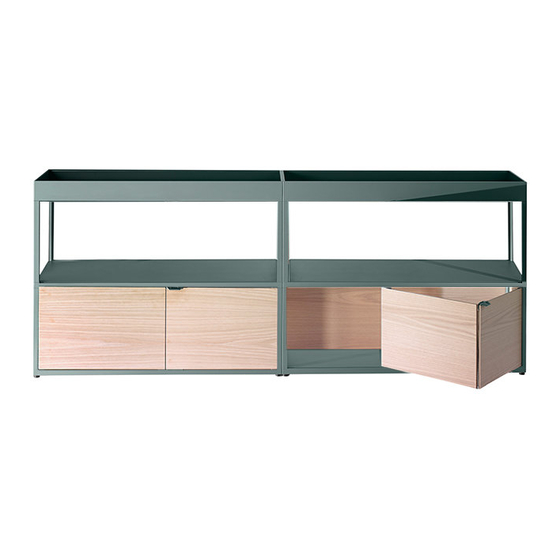

INSTRUCTION MANUAL
N E W O R D E R
CREDENZA
B y S t e f a n D i e z

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEW ORDER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hay NEW ORDER

Summary of Contents for Hay NEW ORDER

  • Page 1 INSTRUCTION MANUAL N E W O R D E R CREDENZA B y S t e f a n D i e z...

  • Page 3: Care And Maintenance

    CARE AND MAINTENANCE CAUTION With a little care, you can prolong the life of your furniture. • Avoid improper use such as putting your feet on the shelf, Follow the instructions for the materials of your specific or standing on it. product to make sure it stays in the best shape for as long as possible.
  • Page 4 PARTS Top Shelf (X2) Single Profile (X8) Middle Shelf (X2) Double Profile (X4) Bottom Shelf (X2) Allen Key (X1) Back Panel (X2) Safety Brackets (X2) Metal Doors (X2) Side Panel (X4) Door Clip (X4)
  • Page 5 • Level For a video that demonstrates how to assemble your • Drill New Order storage, visit www.hay.com/assembly • Allen Key (provided) • Six anchor screws, select proper screws for the type of wall the Credenza will be mounted to.
  • Page 6 3. Mount Double and Single Profiles DOUBLE PROFILE Mount the Double Profiles in the middle, to connect the two Bottom Shelves. SINGLE PROFILE Mount the Single Profiles in each outer corner of the credenza. SET SCREW PLACEMENT When mounting the Profiles to the shelf make sure that the set screws are pointing towards the middle of the shelf.
  • Page 7 4. Each Profile contains set screws that lock into the shelf in order to stabilize the construction. When you have finished building the Credenza make sure to tighten all set screws.
  • Page 8 5. Install the Middle Shelves, the second level of Profiles and the Top Shelves.

  • Page 9: Panel Installation

    PANEL INSTALLATION 1. First, install Back Panels by inserting the panel edge into the channels on the underside of the Top Shelf. 2. When the Panel is in place, use an Allen Key to depress the tabs (x7 per Panel) to lock the Panel in place. 3.

  • Page 10: Door Installation

    DOOR INSTALLATION 1. Attach Clips to the underside of the Top Shelf and the surface of the Middle Shelf by snapping into their respective channels. 2. Rest right side of the door on the Middle Shelf. Snap left door hinge into the two Clips while applying pressure to the back of the Clip.

  • Page 11: Safety Brackets

    SAFETY BRACKETS 1. Clip bracket (A) into back side of the Middle Shelf channel, turn up 90degrees so it is flush with bottom side of Middle Shelf. 2. Match bracket (B) to underside of bracket (A). 3. Mark the location of where you will anchor bracket (B) into the wall with screws.
  • Page 13 Havnen 1 8700 Horsens Denmark www.hay.com 05242019...
