– INSTRUCTION MANUAL –
NEW ORDER
TABLE 1A, 2A
DESIGN BY STEFAN DIEZ

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEW ORDER 1A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hay NEW ORDER 1A

Summary of Contents for Hay NEW ORDER 1A

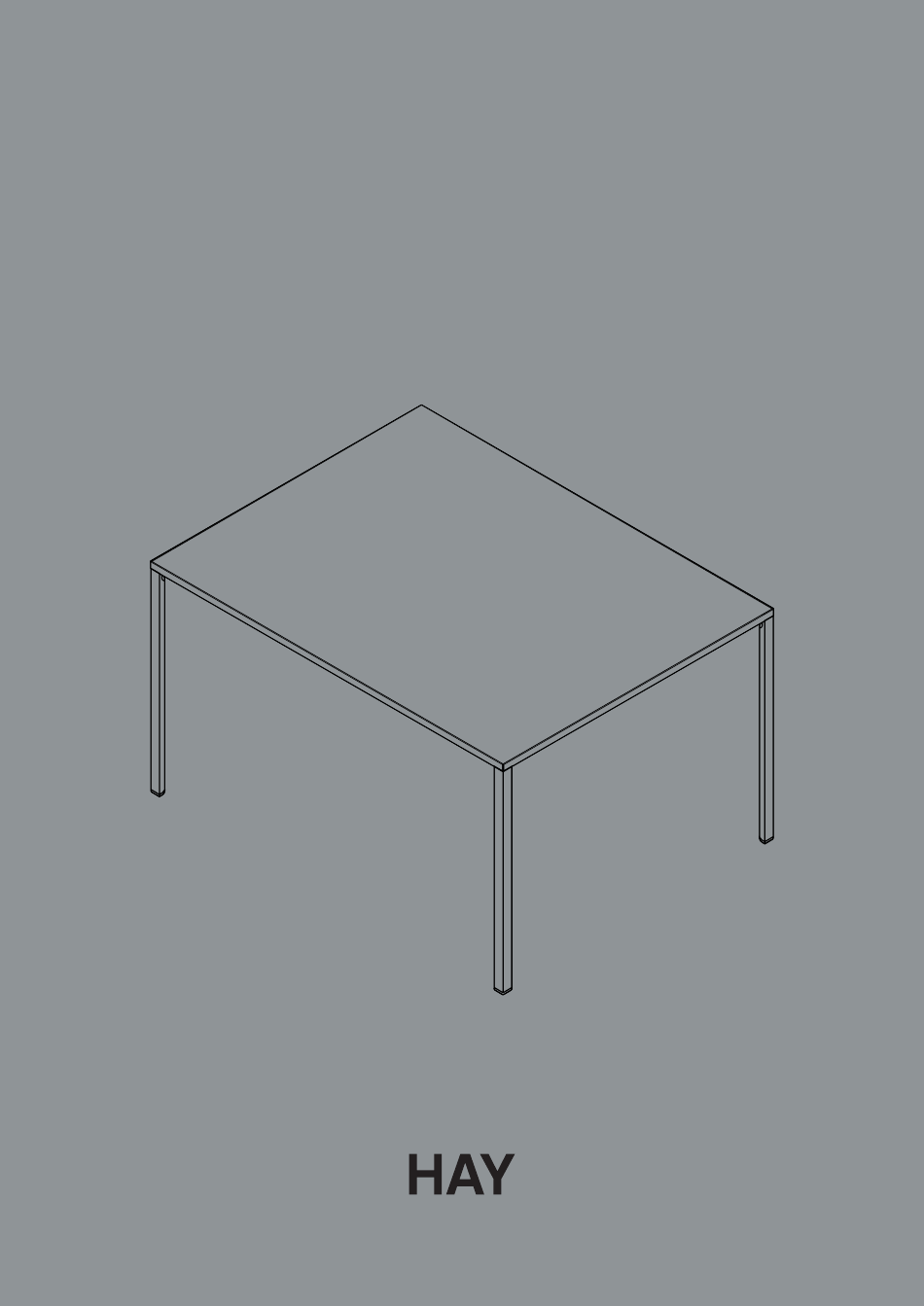

  • Page 1 – INSTRUCTION MANUAL – NEW ORDER TABLE 1A, 2A DESIGN BY STEFAN DIEZ...
  • Page 3 – INTRODUCTION – Developed in collaboration with HAY, Stefan Diez’s New Order is a modular shelving and table system designed to fit the ever-changing boundaries of contemporary workspace and living environments. The simple open-grid construction serves as a flexible and functional framework, enabling the user to create customised open or closed storage solutions with optional drawers, doors and panels.
  • Page 5 – TABLE OVERVIEW – It is important to start by identifying your table model to ensure you follow the correct assembly instructions.                   TABLE TABLE 100x50...
  • Page 6 – PARTS – TABLE                   TABLE TABLE PART  Corner knot *  Frame profile  Leg *  Tabletop   Frame ...
  • Page 7   Insert the corner knots into the two shortest table frame profiles . Then connect these with the two longest profiles to close the frame.
  • Page 8       Secure the frame with screws using tool in each corner.     M5x8 T15   ...
  • Page 9  Connect the legs by threading it onto the tap of the corner knot.       Secure with screws using tool       ...
  • Page 10  Mount the tabletop by inserting it into one of the short ends. While applying upwards pressure in the middle, push the other short end down into place.
  • Page 11     Fasten the tabletop with the clips from underneath. Distribute the clips evenly.       Secure them with screws using tool          ...
  • Page 12 If the floor is uneven and the table is unstable, adjust the height of the feet until the table is stable.

  • Page 13: Care And Maintenance

    – CARE AND MAINTENANCE – CAUTION / Use coasters under damp, hot or coloured objects to avoid permanent With a little care you can prolong the life stains. of your furniture. Follow the instructions for the materials of your specific product to / Avoid partially covering the surface, make sure that it stays in the best shape for example with tablecloths, or place...
  • Page 14 – CARE AND MAINTENANCE – LINOLEUM / Wipe with a clean cloth wrung in water or in a solution of water and a neutral detergent or soap flakes. Remove soap residue immediately using a clean, dry cloth. / If the surface is scratched or appears matt, use a care product especially suited to linoleum.
