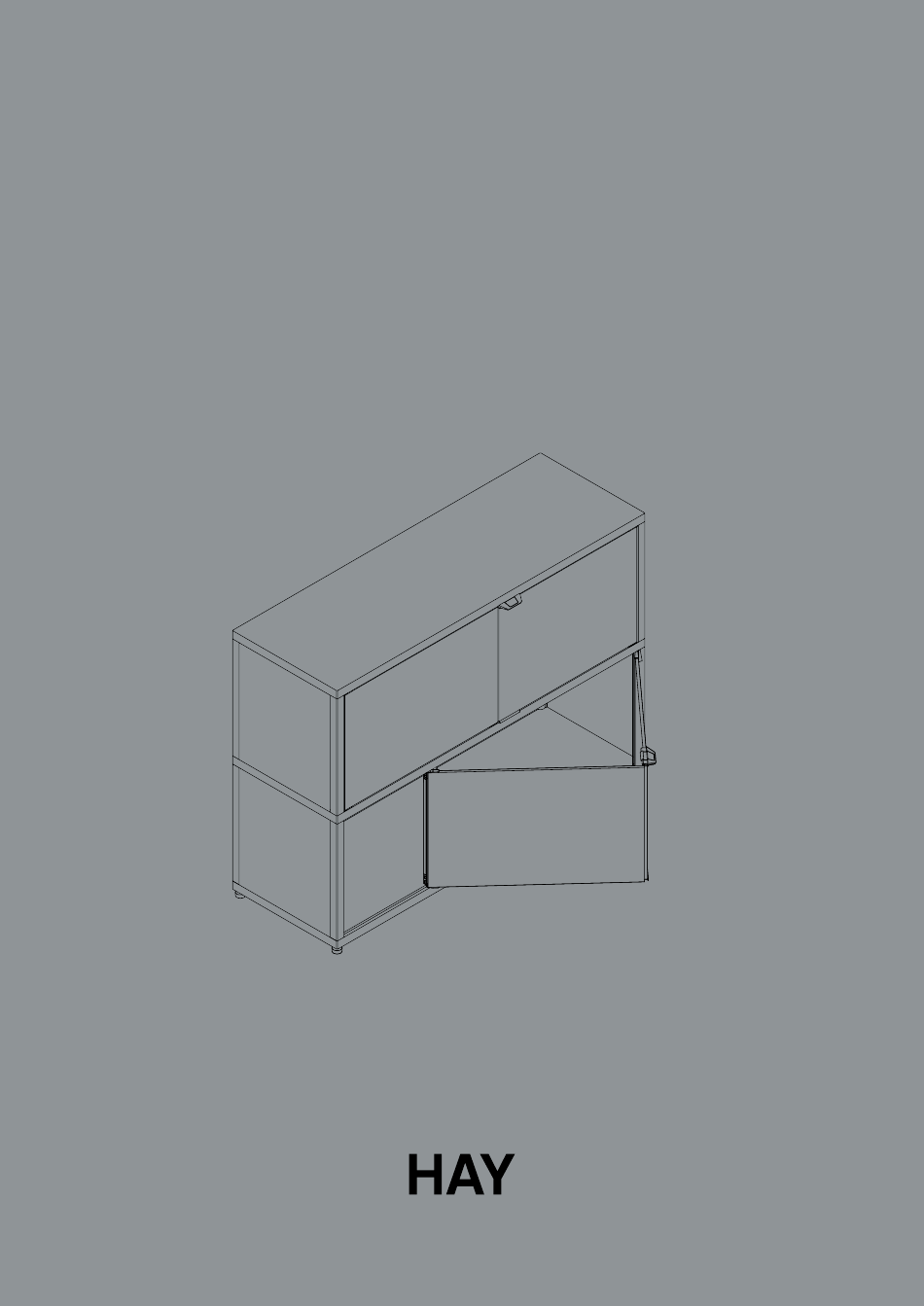

– INSTRUCTION MANUAL –
NEW ORDER
WOODEN PARTS
DESIGN BY STEFAN DIEZ

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEW ORDER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hay NEW ORDER

Summary of Contents for Hay NEW ORDER

  • Page 1 – INSTRUCTION MANUAL – NEW ORDER WOODEN PARTS DESIGN BY STEFAN DIEZ...
  • Page 3 SAFETY INSTRUCTIONS FOR NEW ORDER – NEW ORDER SAFETY INSTRUCTIONS – MAX WEIGHT DRAWERS = 30 KG / PER LAYER SAFETY BRACKETS DO NOT CLIMB MAX BUILDING HEIGHT FREESTANDING FREESTANDING CONNECTED WITH FLOOR WITH WALL SAFETY BRACKETS SAFETY BRACKETS ALWAYS USE SAFETY BRACKETS...
  • Page 4 – INSTRUCTIONS – WOODEN SET...
  • Page 5 – WOODEN SLIDING DOOR AND PANEL SETS OVERVIEW – Wooden set 100 Wooden set wall 100 Wooden set left 100 Wooden set left wall 100 Wooden set 150 Wooden set wall 150...
  • Page 6 – PARTS –   Wooden back panel Wooden sliding door  Wooden side panel   Back panel fastener Slider hook...
  • Page 7  Start by inserting the panel clips into the grooves on the top  and bottom of the back panel SOFTENING THE PLASTIC The panel clip needs to be wiggled slightly to facilitate a smoother assembly. IF MOUNTING WALL PANELS Make sure to turn the panel so the cutout section is facing upwards.
  • Page 8 Make sure that you start by mounting the wooden end first. PLASTIC TAP END Insert this end after the wooden end. WOODEN END Insert this end first.
  • Page 9 Mount the panel through the inside of the shelf. Make sure the wooden end fits into the groove in the shelf profile.
  • Page 10 Then push in the other side so the plastic tap bends and locks in place.
  • Page 11  Insert the back panel fastener into the grooves on the top and bottom of the back panel.
  • Page 12  Mount the side panels in the same way as the back panel.
  • Page 13  Insert the slider hooks into the grooves on the top and bottom of the shelf.
  • Page 14  Mount the sliding door by inserting the bottom plastic hinge into the profile groove and apply pressure moving upwards. (The action is mirrored if it is a left door) 90°...
  • Page 15  Align the end of the door with the slider hooks . Press the end hinge into the hooks while supporting the hooks with your hand. Test the door by sliding it. PLEASE NOTE Support the hooks from the back with your hand while clicking in the door.
  • Page 16 – CARE & MAINTENANCE – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your furniture. Please find our Care & Maintenance...
  • Page 20 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com ITEM NO. 850002 3/1 1/2021...
