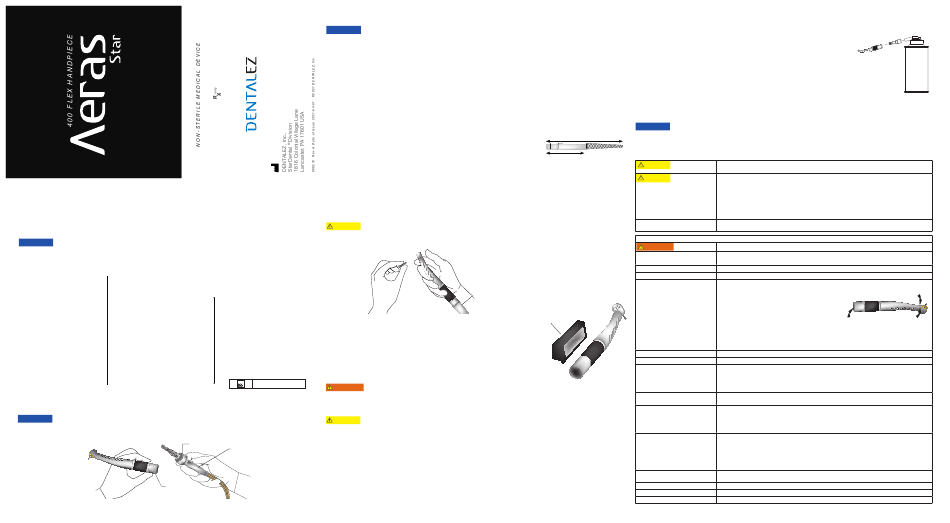

DentalEZ Aeras 400 Flex Quick Start Manual

DO NOT USE FOR ORAL SURGERY
Before operating the handpiece, carefully read and follow all of these instructions. Save these instructions for future reference
and observe all warnings and cautions.
INDICATIONS FOR USE:
The Aeras 400 Flex High Speed Handpieces are used by trained dental professionals for a variety of procedures
TM
including but not limited to caries and amalgam removal, restorative work and crown preparations.
NOTICE
The Aeras 400 Flex handpiece contains a Radio Frequency Identification Tag. The RFID Tag is passive and does not emit radio
waves until activated by a RFID reader within a range of approximately 6 inches.
CONTENTS SPECIFICATIONS
Aeras 400 Flex High-Speed Handpieces are designed to fit a 6-Pin Flex Multiflex Lux
SPECIFICATIONS
Aeras 400 Flex Handpiece, Fiber Optic handpiece connects to standard ISO Type C (6-Pin Tubing)
HANDPIECE INSTALLATION
Fiber Optic tubing. The Aeras 400 Flex Handpiece, non-Fiber Optic connects to standard 4 hole tubing.
HANDPIECE OPERATION
Aeras 400 Flex FO Type: High speed fiber optic with
RFID TAG
a flex swivel and replace-
SAFETY INSTRUCTIONS able autochuck turbine
Operating Air Pressure: 38 to 43 psi
LUBRICATION
Air Consumption: 1.8 SCFM @ 43 psi
-FOR LUBRICATED HANDPIECES ONLY Water Consumption: 84 ml/min @ 26 psi
No Load Speed: 436,000 rpm @ 43 PSI
CLEANING & STERILIZATION
Connection: 360° quick-disconnect
TROUBLESHOOTING
flex swivel with 4-Line and
6-Pin ISO configuration
TURBINE REPLACEMENT
and fiber optics
REPLACEMENT PART
Power: 23 watts
Weight: 63g
- NUMBERS & ACCESSORIES
RFID Frequency: 902-928 MHZ
WARRANTY
RFID Protocol: EPC GEN2
HANDPIECE INSTALLATION
NOTICE To prevent premature damage to the turbine, do not exceed recommended pressure when using flex swivel.
Snap Aeras 400 Flex handpiece onto 6-pin Flex Swivel. (Fig. 1)
6-PIN FLEX SWIVEL
400 FLEX
HANDPIECE
FIG. 1
HANDPIECE OPERATION
NOTICE
To prevent premature damage to the turbine, do not exceed 43 psi when using a Flex Swivel.
AI R A ND WAT E R ADJ U ST M E NT
1. AIR PRESSURE - Use an air pressure gauge, StarDental Part #262591 for 4/6-Line: set pressure to: 38-43 psi - Aeras 400 Flex
handpieces, If a gauge is not available, set pressure at delivery head allowing 1 psi pressure loss for every foot of tubing. (See
specifications for recommended operational pressure.) For example, if you want to operate at 38 psi and you are using either 5 feet or 12
feet of tubing, then the pressure should be set at the delivery head to compensate for the air pressure losses. 5ft. tubing 38 psi + 5 psi = 43
psi or 12 ft tubing 8 psi + 12 psi = 50 psi
2. WATER PRESSURE – Adjust water volume in tandem with chip air volume at the delivery head to obtain satisfactory spray mist.
Use standard length concentric diamond and carbide burs with .0628" nominal diameter friction grip shanks designed for high speed
handpieces .(Fig. 2) Every StarDental Diamond Bur meets specifications below for recommended lengths. Contact your dealer for a complete
list of StarDental Diamond Burs.
StarDental autochuck turbines have the following bur requirements: Use only burs with hardened,
tempered steel shanks or carbide shanks. Every StarDental Bur maintains required hardness. Before
use, verify concentric rotation by operating handpiece outside the oral cavity in a safe place.
NOTE: Do not use burs that produce excessive noise or do not run concentrically. Do not use burs that
are modified, eccentrically designed, or have bent or 'soft' (non-heat treated) shanks.
AUTOCHUCK BUR CHANGING SYSTEM
1. Insert bur into autochuck until resistance is felt. (Fig. 3)
2. Depress autochuck end cap button and continue to feed-in bur until it clicks and stops.
3. Release end cap button. Now, apply light inward force to the dental bur. This will help set the chucking mechanism for initial start up. (Always
tug on bur after it has been installed to confirm that it is secured).
4. To remove, grasp handpiece firmly so your thumb touches the end cap and push until a slight 'click' is noticed.
5. Pull bur straight out.
6. Release end cap.
CAUTION : Never depress the autochuck end cap button or rest the end cap against any part of the oral anatomy during handpiece
operation. Depressing the end cap while a bur is rotating can activate the chuck mechanism and result in end cap heat-up and/or loss
of bur retention.
swivel. The
®
Aeras 400 Flex non-FO Type: High speed with a flex
swivel and replaceable
autochuck turbine
Operating Air Pressure: 38 to 43 psi
RFID TAG
Air Consumption: 1.8 SCFM @ 43 psi
Water Consumption: 84 ml/min @ 26 psi
TO ACTIVATE RFID TAG
No Load Speed: 436,000 rpm @ 43 PSI
1. RFID Tag is passive. Activation and operation of RFID capabilities requires a compatible
Connection: 360° quick-disconnect flex
(EPC GEN2) reader system operating in the 902-928 MHZ band.
swivel with 4-Line ISO
configuration 2. Pass handpiece within 6 inches of the reader with a sideways orientation as shown to the right (Fig 4).
Power: 23 watts
3. The RFID Tag is programmed from the factory with the handpiece serial number.
Weight: 63g
RFID Frequency: 902-928 MHZ
RFID Protocol: EPC GEN2
SAFETY INSTRUCTIONS
135°C
Sterilizable up to 135°C
WARNING:
TO MINIMIZE RISK OF SERIOUS INJURY:
• Always insert bur the full length of the chuck. If you attempt to extend it from the chuck, the bur may dislodge during use and possibly injure
you or your patient.
CAUTION:
TO MINIMIZE RISK OF INJURY OR DAMAGE TO HANDPIECE OR AUTOCHUCK:
• Replace turbine when handpiece does not run at full speed or runs noisily.
• U se only recommended burs. An improperly clamped or bent bur, usually indicated by sudden high-pitched sound or increased vibration
during use, may dislodge injuring you or your patient.
TUBING COUPLER
• FOLLOW THESE SAFETY INSTRUCTIONS:
- Confirm bur is secure by tugging on it after it is loaded
- Verify concentric rotation by operating handpiece outside oral cavity. Do not use if it does not run concentrically or runs with
excessive noise.
- Do not operate handpiece without an installed bur.
- Always use burs with overall length of less than 24 mm. Shank length must be at least 7.3 mm. This includes most short shank burs.
(see Handpiece Operation)
TUBING
- When using autochuck, never depress end cap while bur is rotating.
AUTOCHUCK BUR CHANGING SYSTEM
MAXIMUM 24.0 MM
MINIMUM 7.3 MM
SHANK LENGTH
FIG. 3
RFID READER
LUBRICATION
FOR LUBRICATED HANDPIECES ONLY
For maximum turbine life do not exceed recommended pressure.
NOTE: Lubricate handpiece daily with Handpiece Lubricant, StarDental Part
#264183, and prior to each sterilization procedure. (Fig. 5)
1. Disconnect handpiece.
2. Shake lubricant can well before using.
3. Thread Flex Lubricated Lubricant Tip onto can nozzle.
4. Press handpiece onto Flex Lubricated Lubricant Tip until handpiece stops.
5. Place rag around handpiece.
6. Holding firmly, press spray button on can for one second.
7. Remove handpiece from Flex Lubricated Lubricant Tip.
NOTE: Never operate handpiece without bur in place.
8. With bur in place connect handpiece to tubing, operate for 20 seconds to expel excess lubricant.
9. Wipe off excess lubricant from handpiece.
NOTICE
LubeFree handpieces contain a LubeFree ceramic bearing turbine. This turbine uses a sophisticated ceramic bearing design
and therefore, requires no lubrication. To ensure the life of, and to prevent damage to, this turbine - do not lubricate it. If it gets lubricated even
OVERALL LENGTH
once, it MUST then continue to be lubricated for the rest of its life.
CLEANING & STERILIZATION
It is the responsibility of the user to use only FDA compliant sterilizing equipment and accessories that
CAUTION:
are capable of meeting the manufacturers recommendations below.
FIG. 2
CAUTION: Do not exceed 135° C
To prevent damage to the bur, use an autoclavable bur block.
DO NOT USE:
• dry heat sterilizer • cold sterilizers • ultrasonic cleaners
• chemical disinfectors • immersion techniques • surgical milk
• surface wipes • hand soaps • detergents
• sterilizer bags • surface sprays • containing disinfectants
LIMITS ON REPROCESSING Repeated processing has minimal effect on this handpiece. End of life is normally determined by wear
and damage due to use.
INSTRUCTIONS
WARNING: Handpieces and burs must be cleaned and sterilized before first use and after each patient.
CONTAINMENT & It is recommended that handpieces are reprocessed as soon as is reasonably practical following use.
TRANSPORTATION:
PREPARATION FOR CLEANING: Remove handpiece from swivel. No further disassembly is required.
CLEANING - AUTOMATED: Washer-disinfectors are not recommended.
CLEANING - MANUAL: CLEANING HANDPIECES: (Fig.6)
Remove debris from external surfaces using a small brush and isopropyl
alcohol. Clean internal surfaces of the handpiece at the swivel
connection location using a small brush and isopropyl alcohol.
FIG. 4
Optical surfaces can be cleaned with a cotton swab soaked in
isopropyl alcohol. Dry thoroughly. Repeat after each patient.
CLEANING DIAMOND BURS:
• After each use, clean the diamond bur by running it against a wet diamond cleaning stone.
• To mechanically clean, the diamond bur should be held in a solution of either enzymatic presoak,
Sparkl Dental Instrument Cleaner StarDental Part# 205472, or water.
®
• Rinse the bur thoroughly and allow it to dry, then Sterilize – See Sterilization.
LUBRICATION: Lubricate - For Lubricated Handpieces ONLY - See 'Lubrication' instruction section
DISINFECTION: Use steam sterilization exclusively for complete sterility as outlined below.
MAINTENANCE: Use Junk-Out High Speed Chuck Cleaner Kit (263790) once a week prior to sterilization to ensure optimum
working condition of the chuck. Instructions for cleaning the chuck are included in the Junk-Out kit.
See Turbine Replacement section of this manual for additional information.
Handpiece should be routinely maintained, checked for corrosion, worn parts, etc. and should be replaced
on an as needed basis.
INSPECTION & See Handpiece Operation or Troubleshooting sections of this manual.
FUNCTION TESTING:
PACKAGING: Single: A standard sterilization packaging material must be used. Ensure that the pack is large enough
to contain the handpiece without stressing the seals.
In Sets: Handpieces may be loaded into dedicated instrument trays or general purpose sterilization trays.
Ensure that cutting edges are protected and do not exceed the tray manufacturer's limit per tray. Wrap the
trays using appropriate packaging materials and methods.
WRAPPED INSTRUMENT GRAVITY TYPE AUTOCLAVE:
• Minimum of 15 minutes at 132° C
STERILIZATION:
• Minimum of 30 minutes at 121° C
PRE-VACUUM AUTOCLAVE:
• Minimum of 4 minutes at 132° C
Note: Do not exceed 135° C
DRYING: Dry the handpiece for 30 minutes minimum using the sterilization dry cycle and allow the handpiece to cool
to room temperature in bag prior to use. If moisture is present, increase your sterilizer dry cycle appropriately.
STORAGE: Store in bag after sterilization until ready to use.
ADDITIONAL INFORMATION: Do not exceed the sterilizer manufacturer's guidelines for load capacity.
MANUFACTURER CONTACT: See front or back panels of this manual.
Fig. 5
264147
OPTICAL SURFACE (1 OF 2)
INTERNAL SURFACE
Fig. 6
