DentalEZ AERAS Star Installation Manual

Before operating the motor, carefully read and follow all of these instructions. Save these instructions
for future reference and observe all warnings and cautions.
INDICATIONS FOR USE
The Aeras TM low speed dental motors are used by trained dental professionals to facilitate various dental procedures
requiring cutting, drilling, polishing and pin setting.
The Aeras Titan motor contains a Radio Frequency Identification Tag. The RFID Tag is passive and
NOTICE
does not emit radio waves until activated by a RFID reader within a range of approximately 2 inches.
CONTENTS SPECIFICATIONS
SPECIFICATIONS
5,000 rpm Motor: Aeras TM (StarDental part #266270 and 266279) 5K RFID
Motor.
INSTALLATION SWIVEL MOTOR
20,000 rpm Motor: Aeras TM (StarDental part #266271 and 266280) 20K RFID
INSTALLATION NON SWIVEL MOTOR
Motor.
OPERATION
• No Lubrication Required
CLEANING & STERILIZATION • Recommended Air Pressure: 40-45 psi (swivel motor)
• Air Flow: 2.1 SCFM @ 40-45 psi at Maximum Power Point (swivel motor)
RFID TAG
• Rotation: Forward and Reverse
APPLICATION GUIDE
• 4-Line Connection (Fixed Back End)
• RFID Frequency:902-928 MHZ
TROUBLESHOOTING
• RFID Protocol:EPC GEN2
REPLACEMENT PART NUMBERS
WARRANTY

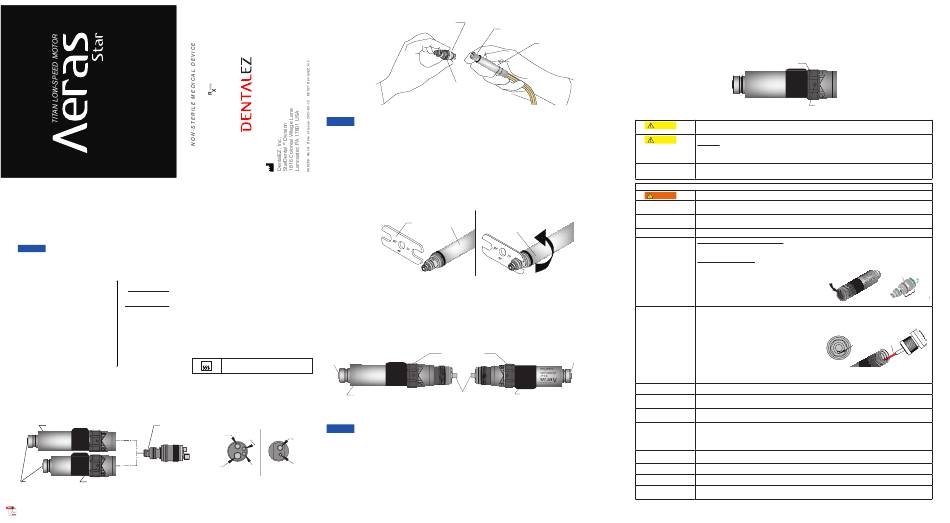

INSTALLATION - SWIVEL MOTORS
FIG.1 AND FIG. 2
FIG. 1
5K MOTOR SWIVEL

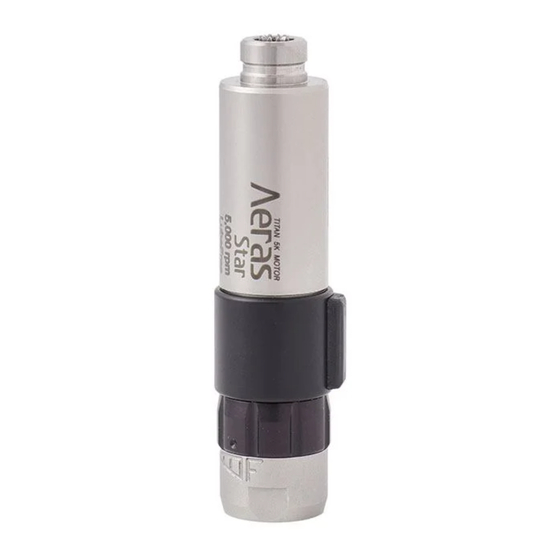

Aeras TITAN 5K MOTOR
Star
5,000 rpm
LubeFree
TITAN 20K MOTOR
Aeras
EXHAUST AIR
Star
20,000 rpm
LubeFree
DRIVE GEAR 20K MOTOR
Select the motor appropriate for tubing based on power requirements. Examine connection of the motor and
1.
swivel tubing configuration as these must match configuration of delivery
FIG. 3
NOTE: If delivery unit has oil/mist lubrication, detach and drain; motor needs no lubrication.
To prevent damage to bearings, before installing always check drive air pressure by using air pressure
NOTICE
gauge, StarDental Part #262591 (4/6-Line) between swivel and tubing and obtain a reading. Adjust air pressure
at delivery head until gauge reads 40-45 psi while operating motor in full forward position and with foot control
completely depressed.
2. Disconnect swivel from motor if necessary. Grasp the swivel in front of the bearing assembly between the
thumb and index finger as shown.(Fig. 3)
3. Slide tubing coupler until the end of the ISO connector is exposed; hold in hand as shown
securing the tubing.
4. Align and insert swivel tubes into the ISO connector holes.
5. While applying slight pressure to hold
threads. Continue threading coupler clockwise until hand tight against the swivel.
FIG. 4
6. Using the wrench as shown,(Fig. 4) tighten the swivel to the tubing coupler. Be sure to turn tubing coupler,
not swivel. DO NOT OVER TIGHTEN.
NOTE: This joint loosens over time, resulting in air leakage and loss of power. Check for tightness periodically.
7. Connect motor to swivel.
INSTALLATION - NON SWIVEL MOTORS
DRIVE
GEAR
135°C
Sterilizable up to 135°C
Aeras TITAN 5K MOTOR
Star
5,000 rpm
LubeFree
5K MOTOR
NOTE: If delivery unit has oil/mist lubrication, detach and drain; motor needs no lubrication.
FIG. 2
NOTICE To prevent damage to bearings, before installing always check drive air pressure by using air pressure
DRIVE AIR gauge, StarDental Part #262591 (4/6-Line) between motor and tubing and obtain a reading. Adjust air pressure
DRIVE AIR
WATER
at delivery head until gauge reads 40-45 psi while operating motor in full forward position and with foot control
completely depressed.
Examine rear end connector of motor.(Fig. 5) Verify motor matches tubing connector of delivery system.
1.
WATER
To connect motor to tubing, align drive air and exhaust tubes with mating ISO connector holes in coupler.
2.
AIR
4-LINE TUBING
2/3-LINE TUBING 3. While applying slight pressure to hold tubing in connector holes, slide tubing coupler forward and engage threads.
Continue threading tubing coupler clockwise until hand tight against the motor. DO NOT OVER TIGHTEN.
NOTE: This joint loosens over time, resulting in air leakage and loss of power. Check for tightness periodically.
system tubing.
SWIVEL
ISO CONNECTOR
TUBING
COUPLER
BEARING ASSEMBLY
TUBING
with fingers
fittings in the connector holes, slide coupler forward and engage
TUBING
WRENCH
COUPLER
TURN COUPLER WHILE HOLDING
SWIVEL IN PLACE
DIRECTION & SPEED
CONTROL RING DRIVE
GEAR
FIG. 5
20K MOTOR
REAR END CONNECTOR
OPERATION
The 120° rotation speed adjustment ring sets direction and speed. To run motor forward at full speed, rotate
ring towards the letter 'F' while operating the foot control. Rotate to the letter 'R' to yield full speed in reverse.
Vary speed by rotating ring in either direction towards center. Note the small depression for the current setting.
After setting, the motor runs at current speed and direction until reset. Pausing the motor is not needed to alter
direction or speed using the ring. (Fig. 6)
120° ROTATION SPEED
ADJUSTMENT RING
TITAN 5K MOTOR
Aeras
Star
5,000 rpm
LubeFree
CLEANING & STERILIZATION
It is the responsibility of the user to use only FDA compliant sterilizing equipment and accessories that are capable
CAUTION
of meeting the manufacturers recommendations below.
Do not exceed 135°C
CAUTION
Do not use:
• dry heat sterilizer • cold sterilizers • ultrasonic cleaners
• immersion techniques • sterilizer bags containing disinfectants
• detergents • surface wipes • surface sprays
LIMITS ON Repeated processing has minimal effect on these attachments. End of life is normally determined by wear and
damage due to use.
REPROCESSING
INSTRUCTIONS
The handpiece motor must be cleaned and sterilized before first use and between patient use.
WARNING
It is recommended that motors are reprocessed as soon as is reasonably practical following use.
CONTAINMENT AND
TRANSPORTATION
Remove motor from swivel if applicable or tubing.
PREPARATION FOR
CLEANING
Washer-disinfectors are not recommended.
CLEANING AUTOMATED
Cleaning the Swivel & mating Motor Parts: To optimize operation of the swivel connector, clean all internal
CLEANING MANUAL
surfaces of the motor with a cotton swab soaked in isopropyl alcohol until clean. Clean area around bearing/spring
assembly at rear of swivel using isopropyl alcohol and a toothbrush.(Fig. 7) Dry both using syringe air.
Sterilizing Handpiece Motor: After each patient,
flush air by running handpiece motor for 20
seconds. Remove attachment. Clean all internal
surfaces at rear of handpiece motor with a cotton
swab soaked in isopropyl alcohol until clean. Clean all
external surfaces using a small toothbrush with
isopropyl alcohol. Dry thoroughly. Place handpiece
motor and swivel in sterilization bag. Follow the sterilization
guidelines as stated by the manufacturer of your sterilizer.
The Titan Motor is LubeFree and, therefore, requires no lubrication.
MAINTENANCE &
However, at times debris from the delivery system's drive air tubing collects in the motor. This build-up may cause
LUBRICATION:
sluggish motor operation. To ease, place 3 drops of DentaLube II, StarDental Part #262539 into the drive air tube of
motor (Fig 8), and alternately operate the motor in forward and reverse.
FIG. 8
Motor should be routinely maintained, checked for corrosion, worn parts, ect and should be replaced on an as
needed basis.
Use steam sterilization exclusively for complete sterility as outlined below.
DISINFECTION:
INSPECTION & FUNCTION See Installation, Operating Recommendations, and/or Troubleshooting sections of this manual.
TESTING:
Single: A standard sterilization packaging material must be used. Ensure that the pack is large enough to contain
PACKAGING:
the item without stressing the seals.
Gravity Type Autoclave: Pre-Vacuum Autoclave:
WRAPPED INSTRUMENT
• Minimum of 15 minutes at 132° C • Minimum of 4 minutes at 132° C
STERILIZATION:
• Minimum of 30 minutes at 121° C
Do not exceed 135° C
Dry the motor for 30 minutes minimum using the sterilization dry cycle and allow the motor to cool to room
DRYING:
temperature in bag prior to use. If moisture is present, increase your sterilizer dry cycle appropriately.
Store in bag after sterilization until ready to use.
STORAGE:
ADDITIONAL INFORMATION: Do not exceed the sterilizer manufacturer's guidelines for load capacity. Use only paper or paper/plastic bags.
MANUFACTURER See first or last panels of this manual.
CONTACT:
FIG. 6
SMALL DEPRESSION
• chemical disinfectors
• hand soaps
• surgical milk
SWIVEL BEARING/
SPRING ASSEMBLY
INTERNAL
SURFACES
FIG. 7 CLEAN
RED TIP
APPLICATOR
DRIVE AIR
