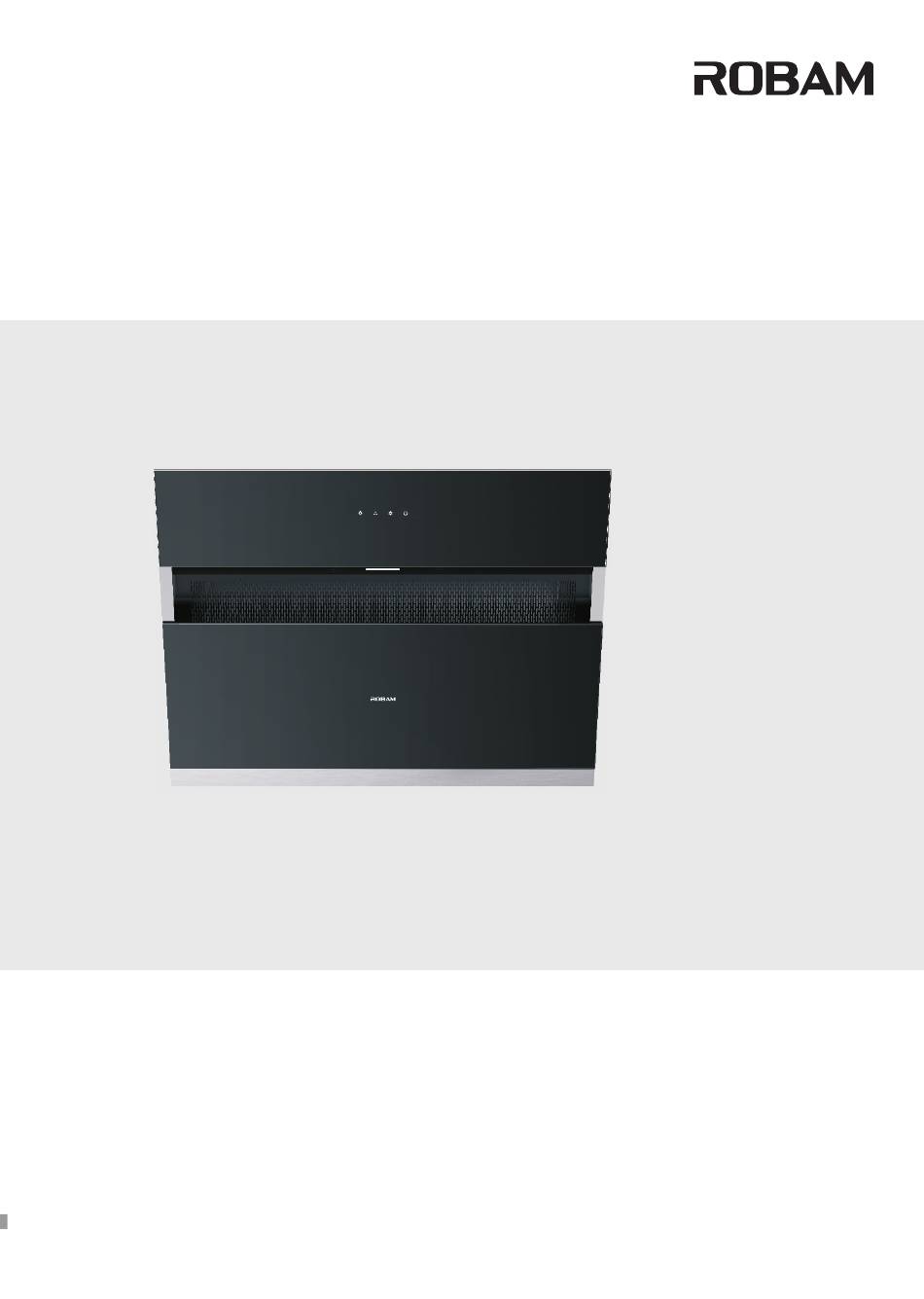

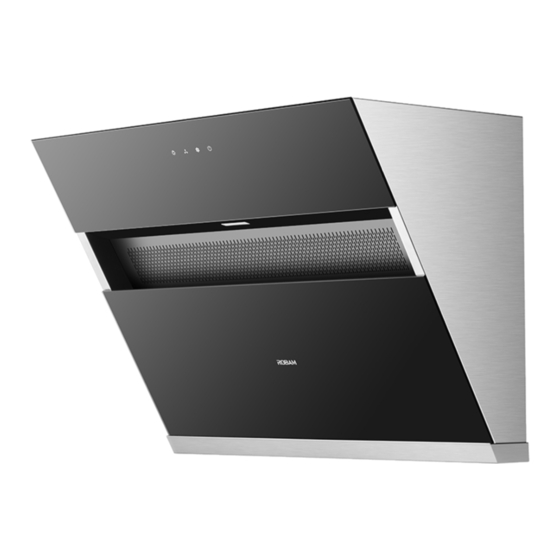

- Page 1 User Manual Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can send e-mail to overseas@robam.com, request for an electronic manual. CXW-218-A651 Range Hood...
-
Page 2: Table Of Contents
CONTENTS Safety Precaution........................1 Important Information......................4 Product Description .........................5 Packing List..........................5 Installation..........................6 User Manual..........................8 Maintenance...........................9 Removal of Components.......................10 Circuit Diagram........................11 Troubleshooting of General faults..................12... -
Page 3: Safety Precaution
Touch Disassembly Execution Earthed Electric Shock Please use this product according to manual strictly, or ROBAM shall not take any responsible Warning caused by improper operation. Danger Don't allow children or weakling to use range hood separately, or it may cause electric shock or other accident. - Page 4 Range Hood Danger Please turn off range hood immediately if pan got fire (range hood shall aggravate fire if it’s working) and extinguish fire by effective action. Strict For example, cover flame by metal cover, turn off gas valve immediately Execution and remove inflammable things.
- Page 5 Range Hood Warning This appliance just for household use only.And it’s not allowed to exhaust dangerous or explosive matter or air. It should be put under dry and Strict ventilation environment without dangerous air. Execution The range hood and electric circuit must be installed by skilled and trained personnel with required qualification.
-
Page 6: Important Information
Range Hood Notice Because the installation is difficult and hood is heavy, the installation Strict shall be executed by professional person based on manul. Execution Don't break electric wire or other invisible equipment when cutting Strict something or drilling holes on ceiling. Execution When range hood is using in well sealed building, it should have air inlet Strict... -
Page 7: Product Description
Range Hood Product Description Technical Data ≤53dB Model CXW-218-A651 Noise Power Supply Rated Power Input 220W 220V~ 50Hz Total Pressure Efficiency Rated Main Motor Power Input ≥23% 218W Lamp Power (max) ≤2W Nominal Wind Pressure 330Pa × × 700×358×500 Dimension (L... -
Page 8: Installation
Range Hood Installation Warning 1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels, the discharge of air must fulfill the requirements of local regulations. 2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is prohibited, as it will result in loose pipe and accidental drops. - Page 9 Range Hood Installation 安装 Hole size of the Note: All data units in the following diagram are expressed in mm. Wall exhaust pipe Ø200 Figure 2 Figure 1 Ceiling Movable Decorative Panel (Self-made) Hanging pin mounting hole Ceiling hole sizes(Projection size of the hood top) Figure 3 50-55 Ø10...
-
Page 10: User Manual
Range Hood Install the aluminum exhaust pipe ●Drilling position of the aluminum exhaust pipe (public flues do not require drilling) a.Aluminum exhaust pipe and hob facing the window: Remove one of the glasses and install a plywood with ventilation holes or punch directly on the glass. b.Hob away from the window: Install the aluminum exhaust pipe through the window that is close to the hob and connected outside;... -
Page 11: Maintenance
Range Hood After the power supply of the range hood is turned on, press the bright key to turn on the lighting lamp, and then press this key to turn off the lighting. Lighting After the power supply of the range hood is turned on, press the weak gear key, and the impeller rotates at a low speed to smoke (i.e. -
Page 12: Removal Of Components
Range Hood ●Please regularly check and clean the oil cup. As shown in the right figure, hold the oil cup with both hands, pull it out and pour out the waste oil. ●The range hood shall be started before cooking. ●Please unplug it during long-term shutdown, but please do not pull hard. -
Page 13: Circuit Diagram
Range Hood Removal and installation of the whole body Removal steps: 1. Unplug the power plug; 2. Take out the protective net (see "Disassembly of Protective Net" for details); 3. Unscrew 2 screws under the upper glass combination and 3 screws at the top, and take out the upper glass combination; 4. -
Page 14: Troubleshooting Of General Faults
Range Hood Troubleshooting of general faults Fault Cause Solution No response after pressing any icon The power plug is not connected (e.g. the impeller does not rotate, Plug in the power plug properly or there is power failure or the light is off) Pressing the lighting icon, the The light is damaged or Replace the light or plug in the plug... - Page 15 Edition: A Publication Date: May, 10, 2020...
