Summary of Contents for Robam CXW-200-A609

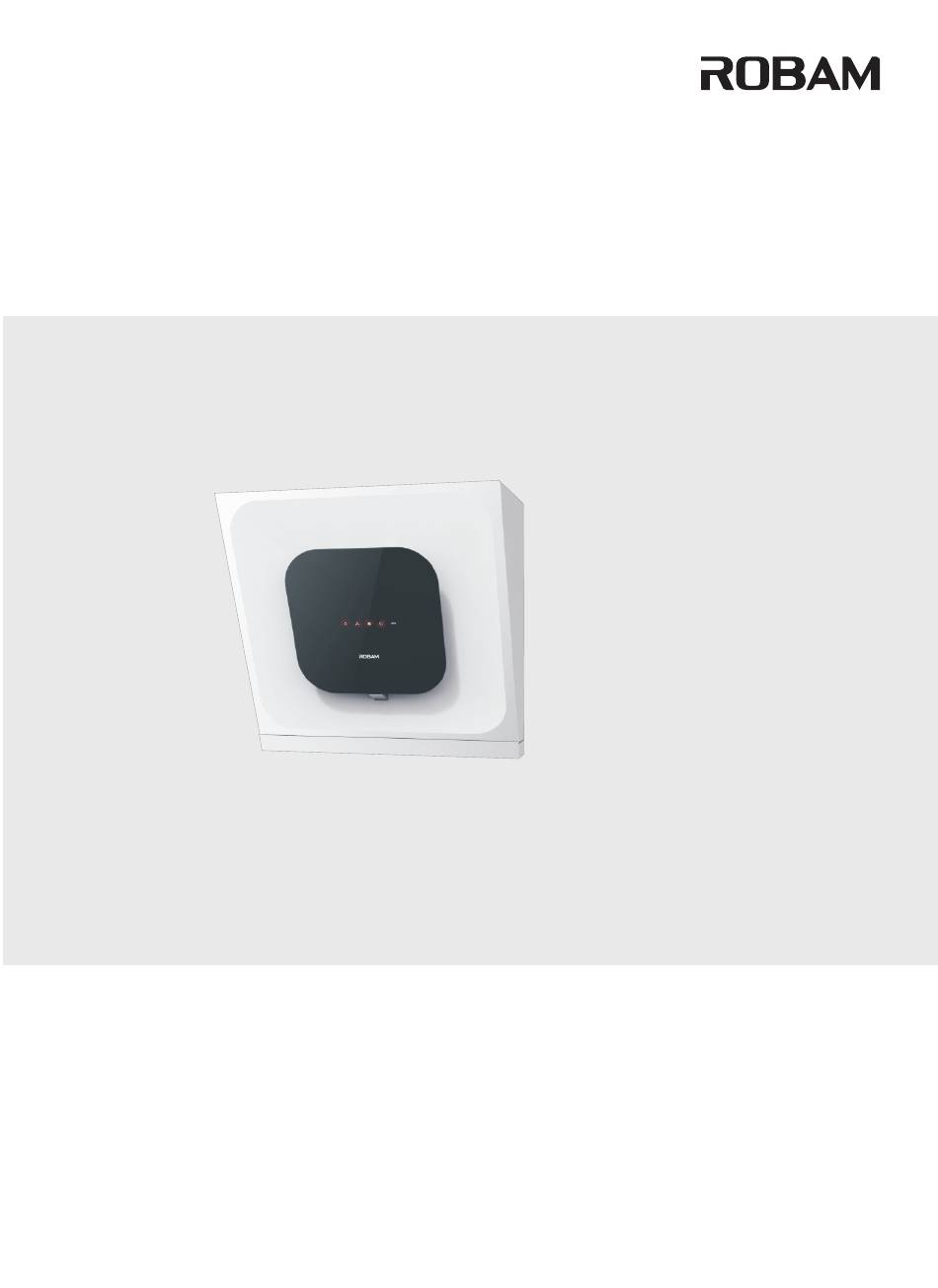

- Page 1 User Manual Before operating this unit, please read the ser manual completely and keep it. CXW-200-A609 CXW-220-A610 Range Hood...
-
Page 2: Table Of Contents
CONTENTS ......................1 Safety Precaution ....................3 Important Information ......................4 Product Overview .........................4 Packing List ........................5 Installation ......................7 Use Instruction ....................8 Maintenance and Services ......................8 Prats Removal ......................10 Circuit Diagram .....................10 General Troubleshooting... -
Page 3: Safety Precaution
Touch Execution Earthed Electric Shock Disassembly Please use this product according to manual strictly, or ROBAM shall not take any Warning responsible caused by improper operation. Danger Don't allow children or weakling to use Don’t touch plug, electric parts or... - Page 4 Range Hood Warning Range hood must be installed, Put out the stove fire in time when it is not used. That the stove fire bakes d i s a s s e m b l e d o r m a i n t a i n e d b y the range hood directly is prohibited.
-
Page 5: Important Information
Range Hood Notice The gas from range hood shall not be T h e t e m p e r a t u r e f o r r a n g e h o o d exhausted to hot flue used for burning gas or working can’t exceed 40℃. -
Page 6: Product Overview
Range Hood Product Overview Product Parameter Noise A609:≤57dB A609:≤58dB CXW-200-A609 Model CXW-220-A610 W A610:224W Rated Whole Machine input power A609:204 Power Supply 220-240V 50Hz Rated Main Motor input power W A610:220W A609:200 Total Pressure Efficiency ≥23 Max lighting power ≤2W 2 ×... -
Page 7: Installation
Range Hood Installation Warning 1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels,the discharge of air must fulfill the requirements of local regulations 2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is prohibited, as it will result in loose pipe and accidental drops. - Page 8 Range Hood Installation 安装 Note: All data units in the following figures are in mm Picture 1 Picture 2 Movable decoration panel Air duct drill sizeφ200 Wall (made by yourself) Projected dimension at top of range hood Hung ceiling drill size drawing (Projected dimension at top of range hood) ●Determine the position : keep two holes level,...
-
Page 9: Use Instruction
Range Hood Connect the ALUM-NOD First connect the ALUM-NOD without air duct fixed strip with air duct interface, sealed by adhesive tape of air duct and straighten the ALUM-NOD to outdoor directly. When the wall hole is larger than ALUM-NOD, the air duct can be pulled to outdoor directly;... -
Page 10: Maintenance And Services
Range Hood Maintenance and Services Warning 1.There is a fire risk if cleaning is not carried out in accordance with the instructions. 2.Cleaning and maintenance shall be conducted under outage. Electrical components such as motor, switch, and connector shall not be spoiled by water so as to prevent from accidents. It's prohibited to wash with water so as to prevent accidents. - Page 11 Range Hood loose Disassemble Procedure: 1.rotective net Rotate the screw in the hole 1-2 cycles counterclockwise by cross screwdriver to loosen pressing plate. 2.Push the pressing plate aside by finger to left or right. Pull out inner 3.Pull out the interior mesh cover. mesh cover Note: The assembly steps are opposite with the disassembly steps.
-
Page 12: Circuit Diagram
Range Hood Circuit Diagram Green/Yellow E Terminal box brown 220-240V~ L Control circuit blue black blue Green/Yellow brown(red) orange(yellow) yellow blue blue General Troubleshooting Fault Phenomenon Fault Cause Elimination Methods No response by pressing any switch Power plug is not well connected (e.g. - Page 13 、 Model A609 A610 Edition: A/0 Publication Date：April,1,2016...
