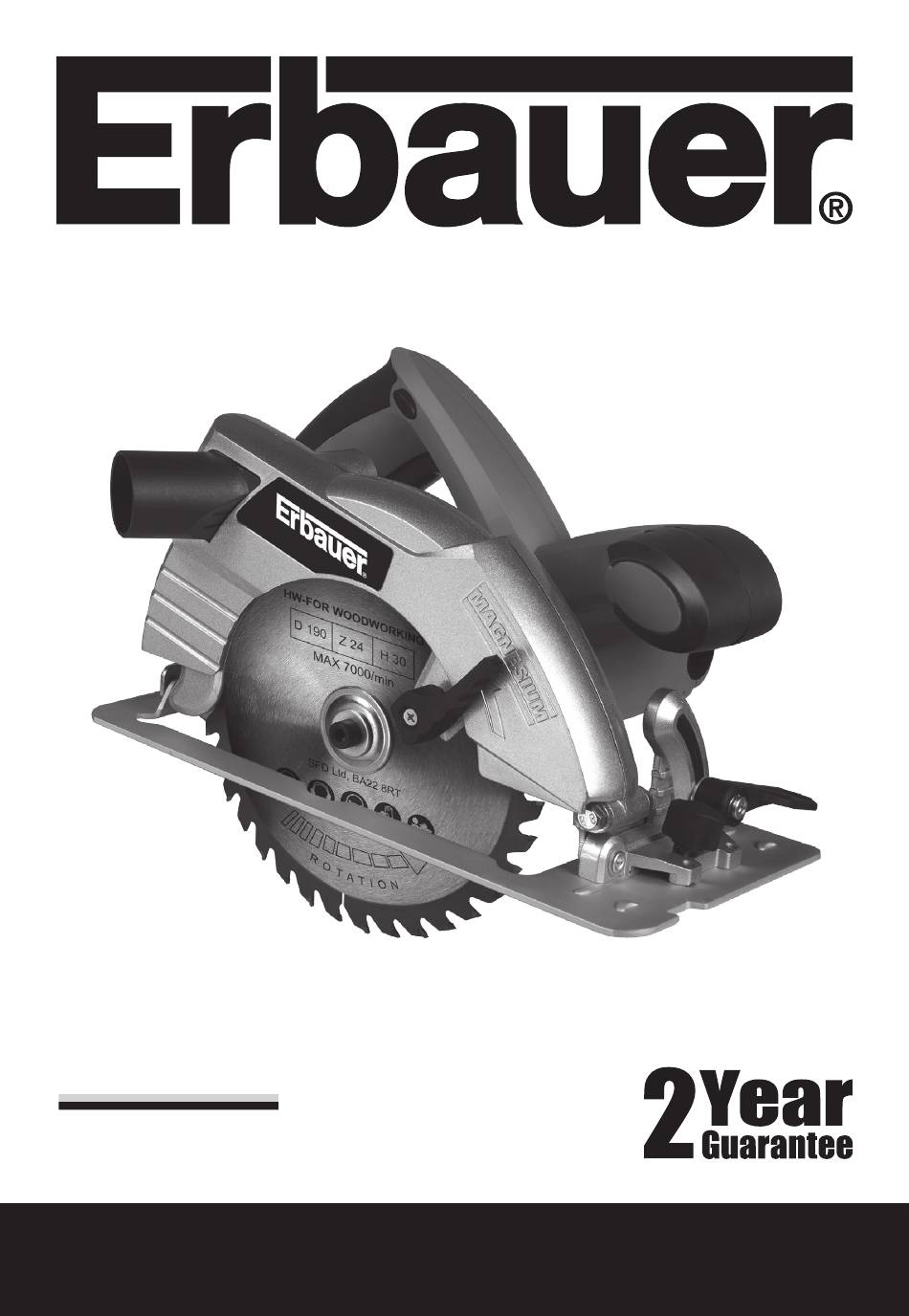

- Page 1 ERB566CSW 1500W 190mm Circular Saw ERB566CSW...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Save all warnings and instructions for future reference. power tool or battery-operated (cordless) power tool. 1. Work area safety a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. - Page 5 Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch 1500W 190mm Circular Saw ERB566CSW...
- Page 6 c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 7 If both hands are holding the saw, they cannot be cut by the blade. b) Do not reach underneath the workpiece. The guard cannot c) Adjust the cutting depth to the thickness of the workpiece. 1500W 190mm Circular Saw ERB566CSW...
- Page 8 Less than a full tooth of the blade teeth should be visible below the workpiece. d) Never hold piece being cut in your hands or across your leg. binding, or loss of control. e) Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
- Page 9 Never clamp or tie the lower guard into the open position. be bent. Raise the lower guard with the retracting handle and 1500W 190mm Circular Saw ERB566CSW...
- Page 10 other part, in all angles and depths of cut. b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. c) Lower guard may be retracted manually only for special cuts such as “plunge cuts”...
- Page 11 • Work in a well-ventilated area. designed VIBRATION daily basis and the choice of tool. Further Advice can be found at www.hse.gov.uk Cutting wood used with the current guidance on vibration. 1500W 190mm Circular Saw ERB566CSW...
- Page 12 Warning: The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles. And the tool is being used as intended by its design and these instructions. While working with this power tool, hand/arm vibrations occur.
- Page 13 SYMBOLS Warning Double insulation Wear ear protection Wear eye protection Wear safety gloves Waste electrical products should not be disposed of with household waste. or retailer for recycling advice. 1500W 190mm Circular Saw ERB566CSW...
- Page 15 LOCK-OFF BUTTON SPINDLE LOCK BUTTON DEPTH ADJUSTMENT LEVER DEPTH SCALE HEX KEY DUST EXTRACTION OUTLET INNER FLANGE BLADE BOLT OUTER FLANGE SPINDLE BEVEL SCALE CUTTING GUIDE NOTCH PARALLEL GUIDE VACUUM ADAPTOR PARALLEL GUIDE TIGHTEN SCREW 1500W 190mm Circular Saw ERB566CSW...
-
Page 16: Technical Data
TECHNICAL DATA Rated voltage Rated power No-load speed Protection class Machine weight NOISE INFORMATION A weighted sound pressure A weighted sound power ACCESSORIES Blade (Ø190xØ30x24T) Parallel guide Vacuum adapter for 35mm hose interface only Hex key 6mm... - Page 17 Press the spindle lock button (9), and use the clockwise and hold open using the lower blade Fig. 2-2 1500W 190mm Circular Saw ERB566CSW...
-
Page 18: Depth Of Cut Adjustment
Warning: Blade teeth are very sharp, the saw blade. For best cutting results , please quality you need. Fig. 2-3 5. DEPTH OF CUT ADJUSTMENT depth which shown on scale (11) and push the 6. BASE PLATE Fig. 3-1 blade breakage (See Fig. 1-1) 7. -
Page 19: Maintenance
Occasionally you Fig. 8-1 persons in order to avoid a hazard. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please Local Authority or retailer for recycling advice. For Fig. 8-2 1500W 190mm Circular Saw ERB566CSW... -
Page 20: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) instructions below. IMPORTANT BLUE =NEUTRAL Brown = Live proceed as follows. The wire which is coloured blue Warning: Never connect live or neutral wires to the earth BS1363/A plug and the correct rated fuse. Note: engaging into a socket. -
Page 21: Declaration Of Conformity
DECLARATION OF CONFORMITY Erbauer (UK) Ltd BA22 8RT Declare that the product 1500W 190mm Circular Saw ERB566CSW 2006/42/EC 2006/95/EC 2004/108/EC 2011/65/EU 2012/19/EU EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-5 1500W 190mm Circular Saw ERB566CSW...
