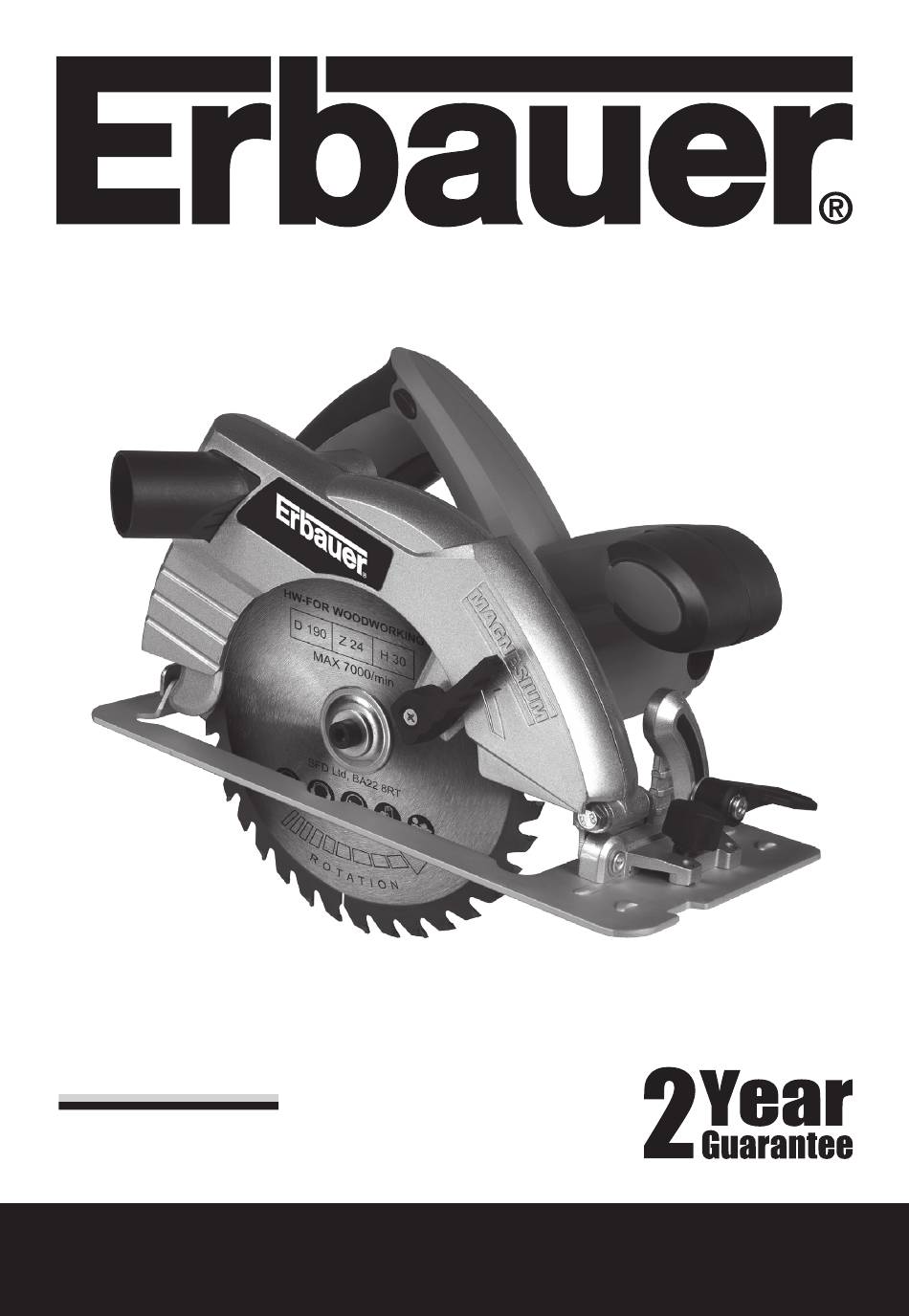

- Page 1 ERB566CSW 1500W 190mm Circular Saw ERB566CSW...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or battery-operated (cordless) power tool. - Page 5 Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. 1500W 190mm Circular Saw ERB566CSW...
- Page 6 c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 7 If both hands are holding the saw, they cannot be cut by the blade. b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. c) Adjust the cutting depth to the thickness of the workpiece. 1500W 190mm Circular Saw ERB566CSW...
- Page 8 Less than a full tooth of the blade teeth should be visible below the workpiece. d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control.
- Page 9 Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any 1500W 190mm Circular Saw ERB566CSW...
- Page 10 other part, in all angles and depths of cut. b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
- Page 11 Calculating the actual period of the actual period off use can be difficult and the HSE website has further information. The declared vibration emission been measured in accordance with a standardised test stated above and may be used to compare one tool with another tool. 1500W 190mm Circular Saw ERB566CSW...
- Page 12 The declared vibration emission value may also be used in a preliminary assessment of exposure. Warning: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.
- Page 13 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); 1500W 190mm Circular Saw ERB566CSW...
-
Page 15: Base Plate
LOCK-OFF BUTTON SPINDLE LOCK BUTTON DEPTH ADJUSTMENT LEVER DEPTH SCALE HEX KEY DUST EXTRACTION OUTLET INNER FLANGE BLADE BOLT OUTER FLANGE SPINDLE BEVEL SCALE CUTTING GUIDE NOTCH PARALLEL GUIDE VACUUM ADAPTOR PARALLEL GUIDE TIGHTEN SCREW 1500W 190mm Circular Saw ERB566CSW... -
Page 16: Technical Data
TECHNICAL DATA Rated voltage 230-240V~ 50Hz Rated power 1500W No-load speed 5000/min Blade diameter 190mm Blade bore 30mm Protection class Max. depth of cut 66mm 47mm Base plate Aluminium Machine weight 4.4Kg NOISE INFORMATION A weighted sound pressure : 75dB(A) =3.0dB(A) A weighted sound power : 86dB(A) K... -
Page 17: Intended Use
(5) whilst changing the saw blade (6). Ensure the blade bore is located on the inner flange (14) and the blade direction arrow points in the same direction as the lower blade guard (4) Fig. 2-2 1500W 190mm Circular Saw ERB566CSW... -
Page 18: Depth Of Cut Adjustment
Fig. 2-2 arrow. Check the blade surface and flanges are clean. Press the spindle lock (9) again and re-fit the outer flange (16) over spindle (17) flats, and tighten bolt 1/4 turn more than finger tight. Check the blade is securely clamped. Warning: Blade teeth are very sharp,... -
Page 19: Maintenance
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For Fig. 8-2 further information visit www.recycle-more.co.uk. 1500W 190mm Circular Saw ERB566CSW... -
Page 20: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. -
Page 21: Declaration Of Conformity
EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-5 Authorised Signatory and technical file holder Date: 05/01/15 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 1500W 190mm Circular Saw ERB566CSW...
