Original instructions
Patent Pending 1008829.2
Read instructions fully before operating this tool
ERB611MSW
(SKU NO 33776 - J1X-KZ13-2555)

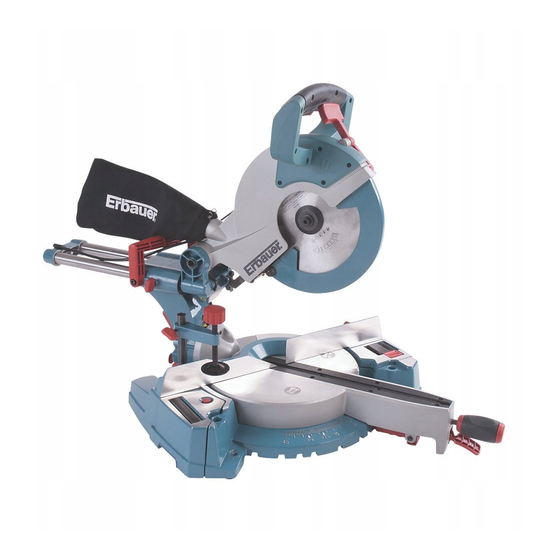

ERBAUER 254MM (10") SinglE BEVEl SliDing MiTRE SAW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERB611MSW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erbauer ERB611MSW

Summary of Contents for Erbauer ERB611MSW

  • Page 1 Original instructions Patent Pending 1008829.2 Read instructions fully before operating this tool ERB611MSW (SKU NO 33776 - J1X-KZ13-2555) ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 2 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 3 Congratulations on your purchase of a quality power tool from Erbauer ltd. This product should give you reliable service for your peace of mind this power tool does carry a 24-month guarantee, the terms of which are detailed below. if this product develops a fault within the guarantee period contact your retailer.

  • Page 4: Safety Instructions

    11 Do not abuse the cord - Never yank the cord to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 5 - This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...

  • Page 6: Health Advice

    Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 7 Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 8 17. Select saw blades in relation to the material to be cut. 18. Check the maximum depth of cut. 19. When sawing long work pieces, always use extra support to provide better support, and use clamps or other clamping devices. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 9 These lasers do not normally present an optical hazard, although staring at the beam may causeflash blindness. WARning! Do not stare directly at the laser beam. A hazard may exist if you deliberately stare into the beam, please observe all safety rules as follows: ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...

  • Page 10: Specific Safety Rules And Symbols

    Min -1 Speed Alternating Current No Load Speed Double Insulated Wear Safety Goggles Wear Ear Protection Wear Dust Mask Read Instruction Manual Laser Warning Symbol Conforms to relevant safety standards General Warning ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 11 4. lOWER BlADE gUARD 5. BlADE 6. TABlE inSERT 7. MiTRE HAnDlE 8. lASER gUiDE 9. BASE 10. TURnTABlE 11. lEFT EXTEnSiOn TABlE 12. FEnCE 13. HOlD-DOWn ClAMP 14. SliDE CARRiAgE lOCK KnOB ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 12 16. SliDE CARRiAgE 17. BEVEl lOCK HAnDlE 18. RigHT EXTEnSiOn TABlE 19. MOTOR 20. POSiTiVE STOP lOCKing lEVER 21. lOWER BlADE gUARD lOCK lEVER 22. LASER ON/OFF SWITCH 23. ADJUSTABlE CUTTing STOP ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...

  • Page 13: Technical Data

    ACCESSORIES Allen Key 1 pc, Dust Bag 1 pc, Hold-Down Clamp 1 pc & Mitre Handle 1 pc ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 14 Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 15 2) Push the stop latch knob (3) into the locking hole. iMPORTAnT To avoid damage, never carry the mitre saw by the cutting arm or the mitre handle. ALWAYS use both designated carrying handles together. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 16 WARning! Always check clamp position does not interfere with any saw operation. Before switching on, lower the saw head to ensure the clamp clears the guard and saw head assembly. Fig 7 Fig 8 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 17 G-clamps to clamp this mounting board to a stable work surface at the worksite. (See fig. 10) note: Mounting hardware is not included with this tool. Bolts, nuts, washers and screws must be purchased separately. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 18 Pay attention to the pieces removed, noting their position and direction they face. Wipe the blade collars clean of any sawdust before installing a new blade. Fig 14 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 19 Make sure the collars are clean and properly arranged. Check that the lower blade guard is functioning correctly and does not bind or stick. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 20 2) Plug saw into socket and turn on the laser beam and line it up with the pattern line. 3) Lower saw blade to pattern line and if blade is not flush with the pattern line, adjustment may be necessary. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 21 Turn one screw at a time and only ¼ turn in either direction before checking laser alignment. Maintain as far as possible the original factory pressure setting that these screws exert on the laser module. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...

  • Page 22: Adjustment Instructions

    (0°) bevel and recheck for alignment. 5) Repeat steps 1 through 4 if further adjustment is needed. 6) Tighten bevel lock handle (1) and locknut (4) when alignment is achieved. (See fig. 19) Fig 19 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 23 2) Loosen the bevel lock handle (1) and rotate the cutting head in the required direction until Fig 22 it indexes with the moulding pin (2). Tighten the bevel lock. (See fig. 22) ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 24 1) Move the table to the 0° positive stop. 2) Loosen the screw (4) that holds the indicator with a Phillips screwdriver. 3) Adjust the indicator (3) to the 0° mark and retighten screw. (See fig. 24) ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 25 If the blade touches the inside of the control arm, readjust the setting. Tighten the locknut when the correct setting is achieved.(See fig. 26) ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 26 • Place hands at least 190.5 mm away from the blade – out of the “no-hands zone” (1). (See Fig 27) • Clamp workpiece firmly against the fence to prevent movement toward the blade. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 27 • Never leave tool running unattended. Turn power OFF. Wait for all moving parts to stop. • Make workshop childproof. Lock the shop. Fig 29 Disconnect master switches. Store tool away from children and other unqualified users. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 28 (1) to lock the cutting head in position. Positive stops are provided at 0°, 33.9° and Fig 31 45°. (See fig. 31) note: When cutting at 45 degrees, ensure guard does not catch on work or machine base plate. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 29 • Let the blade reach full speed before cutting. This will help reduce the risk of a thrown workpiece. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 30 Position where convenient to adequately support long workpieces. To replace, simply slide the satellite stand back into the machine base until the release button provides positive location. (See fig. 35) Fig 35 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 31 (See fig. 38) 13. Extension Arm With the stop plate in its stored position the extension arm can be used to support long workpieces. (See fig. 38) ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 32 Fig 41 When setting the bevel and mitre angles for compound mitres, remember that the settings are interdependent – changing one changes the other, as well. (See fig. 41&42) ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 33 3) RIGHT side is fi nished piece. Outside Corner-right side 1)Position top of moulding against fence. 33.9 31.6 Right 2)Mitre table set at RIGHT 31.6 3)RIGHT side is finished piece. ERBAUER 216MM (8”) SLIDING MITRE SAW ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...

  • Page 34: Maintenance

    Develop a regular check to make sure the lower guard is working properly. Clean the lower guard of any dust or buildup with a damp cloth. ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 35 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...

  • Page 36: Environmental Protection

    5 AMP fuse must be fi tted. and a 13 AMP fuse must be fitted. 13 AMP 5 AMP FUSE BLUE N (NEUTRAL) BROWN L (LIVE) OUTER SLEEVE CABLE GRIP ERBAUER 216MM (8”) SLIDING ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 37 2002/96/EC and 2003/108/EC Waste Electrical and Electronic Equipment (WEEE) Standards and technical specifications referred to: En55014-1 En55014-2/a2 En61000-3-2 En61000-3-11 En61029-1 En61029-2-9 En60825-1 Authorised Signatory Date: 25/06/2010 Signature: Name: Peter Harries Erbauer (UK) Ltd Quality Manager ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 38 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 39 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
  • Page 40 ERBAUER 254MM (10”) SinglE BEVEl SliDing MiTRE SAW...
