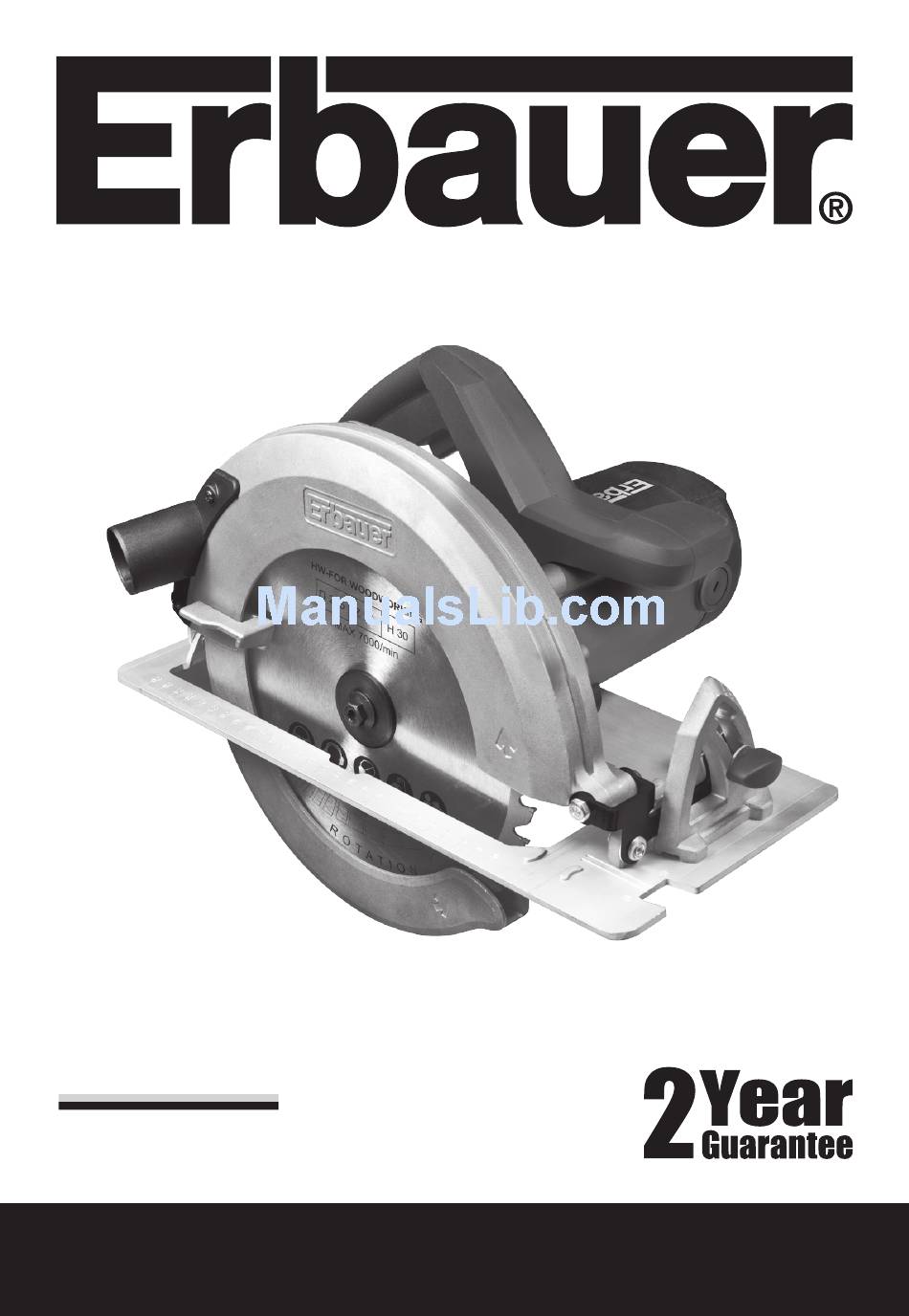

- Page 1 ERB596CSW 2000W 235mm CIRCULAR SAW ERB596CSW...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or battery-operated (cordless) power tool. - Page 5 Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. 2000W 235mm CIRCULAR SAW ERB596CSW...
- Page 6 c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 7 Less than a full tooth of the blade teeth should be visible below the work-piece. d. Never hold piece being cut in your hands or across your leg. Secure the work-piece to a stable platform. It 2000W 235mm CIRCULAR SAW ERB596CSW...
- Page 8 is important to support the work properly to minimize body exposure, blade binding, or loss of control. e. Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live”...
- Page 9 Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due 2000W 235mm CIRCULAR SAW ERB596CSW...
- Page 10 to damaged parts, gummy deposits, or a build-up of debris. c) Lower guard may be retracted manually only for special cuts such as “plunge cuts” and “compound cuts.” Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
- Page 11 How the tool is used and the materials being cut. The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles. 2000W 235mm CIRCULAR SAW ERB596CSW...
- Page 12 And the tool is being used as intended by its design and these instructions. While working with this power tool, hand/arm vibrations occur. Adopt the correct working practices in order to reduce the exposure to vibration. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
- Page 13 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); 2000W 235mm CIRCULAR SAW ERB596CSW...
- Page 15 SPINDLE LOCK BUTTON DEPTH OF CUT SCALE DEPTH OF CUT ADJUSTMENT LEVER HEX KEY (See Fig. 1-2) BLADE BOLT (See Fig. 1-2) OUTER FLANGE (See Fig. 1-2) INNER FLANGE (See Fig. 1-2) SPINDLE (See Fig. 1-2) 2000W 235mm CIRCULAR SAW ERB596CSW...
-
Page 16: Technical Data
TECHNICAL DATA Rated voltage 230-240V~ 50Hz Rated power 2000W No-load speed 4500/min Blade diameter 235mm Blade bore 30mm Bevel capacity 0-50 Max. depth of cut 85mm 65mm Protection class Machine weight 6.8kg NOISE INFORMATION A weighted sound pressure : 97dB(A) =3.0dB(A) A weighted sound power : 108dB(A) -
Page 17: Intended Use
RIGHT dust extraction machine (e.g. vacuum cleaner) to RIGHT the dust extraction outlet using a dust tube (15) vacuum adapter and a flexible hose connection. Ensure the adapter is secured with two screws. Fig. 2 2000W 235mm CIRCULAR SAW ERB596CSW... - Page 18 SAFETY ON/OFF SWITCH Your switch is locked off to prevent accidental starting. Depress lock off button (16) then on/off switch (2) and release lock off button (16). Your switch is now on. To switch off, just release the on/ off switch. HAND GRIP POSITION RIGHT Always hold your saw firmly with both hands when...
- Page 19 0° guide mark to align with your parallel guide scale. For a 45° bevel cut, use the 45° guide mark to align with your parallel guide scale. Securely clamp the parallel guide (9). Always make a trial cut to check the setting. 2000W 235mm CIRCULAR SAW ERB596CSW...
-
Page 20: Working Hints For Your Circular Saw
WORKING HINTS FOR YOUR CIRCULAR SAW If your power tool becomes too hot, run no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always use a blade suited to the material and material thickness to be cut. -
Page 21: Plug Replacement
13 Amp fuse approved to BS1362 Connect Blue to N Brown L(live) (neutral) Outer sleeve Cable grip firmly clamped 2000W 235mm CIRCULAR SAW ERB596CSW... -
Page 22: Declaration Of Conformity
Waste Electrical and Electronic Equipment (WEEE) 2012/19/EU Standards and technical specifications referred to: EN55014-1:2006+A1:2009+A2:2011 EN55014-2:1997/+A1:2001/+A2:2008 EN61000-3-2:2006/+A1:2009/+A2:2009 EN61000-3-3:2008 EN60745-1:2009+A11:2010 EN60745-2-5:2010 Authorised Signatory and technical file holder Date: 07/23/2015 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
