UM2942
User manual
Getting started with the industrial smart sensor kit based on L6364W dual IO-Link
device transceiver
Introduction
The
STEVAL-IOD04KT1
is a reference design kit that exploits the features of the
L6364W
IO-Link dual-channel device
transceiver.
The kit consists of the STEVAL-IOD004V1 main board (not available for sale), the
STLINK-V3MINI
programmer and debugger
tool, a 14-pin flat cable, and an M8 to M12 standard industrial connector adapter.
The kit acts as a modern smart industrial sensor to be connected to a master IO-Link hub (or a suitable PLC interface).
The power supply for the MCU, sensors, and other logic devices derives from the DC-DC converter controller embedded in the
L6364W.
The on-board
STM32G071EB
microcontroller runs an IO-Link demo stack v.1.1, which controls the IO-Link communication, and
the software code that manages the
L6364W
transceiver and the MEMS industrial sensors.
The tiny dimensions of the main board have been achieved thanks to the small sizes of the CSP package options of
L6364W
and STM32G071EB.
Connect the main board to an IO-Link master via the adapter and the M8 connector included in the kit for normal operation.
Connect the same board to the
STLINK-V3MINI
through the flat cable only if you want to program the
STM32G071EB
with a
new firmware.

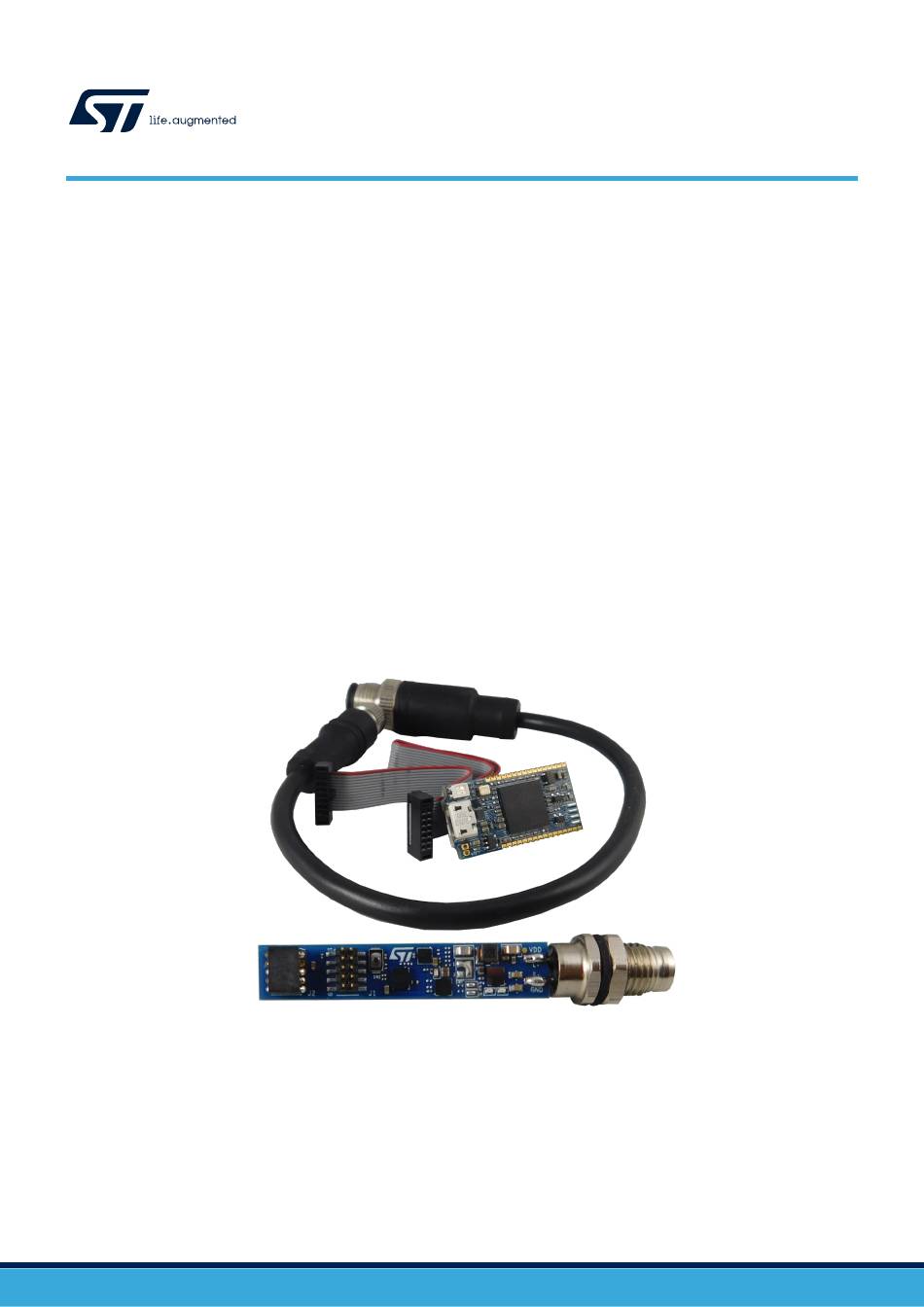

Figure 1.
STEVAL-IOD04KT1 evaluation kit
UM2942 - Rev 1 - October 2021
www.st.com
For further information contact your local STMicroelectronics sales office.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for STMicroelectronics L6364W
Summary of Contents for STMicroelectronics L6364W
-
Page 1: Figure 1. Steval-Iod04Kt1 Evaluation Kit
UM2942 User manual Getting started with the industrial smart sensor kit based on L6364W dual IO-Link device transceiver Introduction STEVAL-IOD04KT1 is a reference design kit that exploits the features of the L6364W IO-Link dual-channel device transceiver. The kit consists of the STEVAL-IOD004V1 main board (not available for sale), the... -
Page 2: Getting Started
Industrial sensor node based on STM32G071EB (mainstream Arm Cortex -M0+ RISC core MCU operating at up to 64 MHz frequency), L6364W (dual channel transceiver IC for SIO and IO-Link sensor applications), IIS2MDC (high accuracy, ultra-low-power, 3-axis digital output magnetometer) ISM330DHCX... -
Page 3: Main Board Hardware Architecture
IO-Link device. The design is centered on the STM32G071EB microcontroller, which manages the IO-Link protocol mini-stack code embedded to drive the L6364W device transceiver. The M8 4-way plug connector is strictly related to the L6364W transceiver. This connector allows establishing half duplex IO-Link communication with an IO-Link master and with a power supply rail (≤... -
Page 4: L6364
UM2942 Main board components 1.3.2 L6364 L6364 is a dual-channel transceiver for industrial sensor applications. It has been designed to support the IO-Link standard and acts as a bridge between a microcontroller with a sensor or actuator function, a supply (up to 32 V), and a signaling cable. - Page 5 UM2942 Main board components IIS2MDC includes an I²C serial bus interface that supports standard mode, fast mode, fast mode plus, and high-speed (100 kHz, 400 kHz, 1 MHz, and 3.4 MHz) as well as an SPI serial standard interface. The device can be configured to generate an interrupt signal for magnetic field detection. IIS2MDC is available in a plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range (from -40°C to +85°C).
-
Page 6: How To Run The Steval-Iod004V1 Smart Industrial Sensor
UM2942 How to run the STEVAL-IOD004V1 smart industrial sensor How to run the STEVAL-IOD004V1 smart industrial sensor To run the STEVAL-IOD004V1 main board with the STSW-IOD04K preloaded firmware, follow the procedure below. Step 1. Connect the board to an IO-Link master embedding a standard M8 4-way socket side connector. If the IO-Link master and the available cabling are M12, you can use the M8 to M12 connector adapter provided in the STEVAL-IOD04KT1... -
Page 7: Firmware Overview
UM2942 Firmware overview Firmware overview STSW-IOD04K is the firmware associated to the STEVAL-IOD04KT1 reference design kit. This firmware package is available for download at www.st.com. The package includes freely customizable C-code written examples to speed up the development time. Note: This IO-Link protocol mini-stack has some limitations regarding event management and ISDU, which are not included. -
Page 8: Schematic Diagrams
a) ISM330DHCX inemo inertial module b) IIS2MDC - Magnetometer Schematic diagrams Figure 3. STEVAL-IOD004V1 (main board) circuit schematic (1 of 4) Sensors L6364 MCU STM32G071EB SENSORS DUAL IO LINK L6364_SS L6364_SS L6364_SS USART2_TX_MCU USART2_RX_SN USART2_TX L6364_UART RX L6364_UART RX L6364_UART RX USART2_RX_MCU USART2_TX_SN USART2_RX... -
Page 9: Figure 4. Steval-Iod004V1 (Main Board) Circuit Schematic (2 Of 4)
Figure 4. STEVAL-IOD004V1 (main board) circuit schematic (2 of 4) IO-Link Device supply voltage Range 7v-32v CQ & DIO shorted together (JOIN mode) => JP3 closed 220nF 470pF default CLOSE 1-2 CQ & DIO independent (DIO mode) => JP3 open, Jp1 closed 4.7K default open L6364_CTLD... -
Page 10: Figure 5. Steval-Iod004V1 (Main Board) Circuit Schematic (3 Of 4)
Figure 5. STEVAL-IOD004V1 (main board) circuit schematic (3 of 4) 22uF NRST miniswitch 100nF 2.7K USART2_RX PA15 VSS/ASSA SYS_SWCLK PA14-BOOT0 MCU_PB5 2.7K I2C_SDA L6364_MOSI SYS_SWDIO 100nF L6364_INT SYS_SWCLK INT2_iNEMO PC14-ASC32IN L6364_UART RX USART1_TX L6364_SS PA11[PA9] PC15-ASC32OUT L6364_MISO I2C_SCL NRST L6364_CTLD 100nF SYS_SWDIO PA13... -
Page 11: Figure 6. Steval-Iod004V1 (Main Board) Circuit Schematic (4 Of 4)
Figure 6. STEVAL-IOD004V1 (main board) circuit schematic (4 of 4) INT2_iNEMO 1- select i2C 10uF 100nF ISM330DHCX 4.7K I2C_SCL IIS2DMC_DRDY IIS2DMC_DRDY SCL/SPC INT/DRDY GND2 I2C_SCL I2C_SCL NC_1 GND_2 GND1 I2C_SDA VDD_IO I2C_SDA VDDIO I2C_SDA SDA/SDI/SDO VDD_IO NC_2 GND_1 NC_3 100nF 220nF IIS2MDC 100nF... -
Page 12: Bill Of Materials
UM2942 Bill of materials Bill of materials Table 1. STEVAL-IOD04KT1 bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code Table 2. STEV Main board Not available for separate sale AL-IOD004V1 In-circuit debugger STLINK- STLINK-V3MINI V3MINI programmer for STM32 M8 to M12 adapter Cable adapter -... - Page 13 Switch E-Switch TL3780AF240QG TP1, TP2 Test point, SMD Test points Keystone 5015 Dual channel transceiver IC for SIO L6364 (CSP), CSP-19 L6364W and IO-Link sensor applications Mainstream Arm STM32G071EBY, WLCSP-25 STM32G071EBY6TR Cortex-M0+ MCU High accuracy, ultra-low-power, 3- IIS2MDC, LGA-12 IIS2MDCTR...
-
Page 14: Board Versions
UM2942 Board versions Board versions Table 3. STEVAL-IOD04KT1 versions Finished good Schematic diagrams Bill of materials STEVAL$IOD04KT1A STEVAL$IOD04KT1A schematic diagrams STEVAL$IOD04KT1A bill of materials 1. This code identifies the STEVAL-IOD04KT1 evaluation board first version. UM2942 - Rev 1 page 14/20... -
Page 15: Regulatory Compliance
UM2942 Regulatory compliance Regulatory compliance Formal Notice Required by the U.S. Federal Communications Commission FCC NOTICE: This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product. -
Page 16: Revision History
UM2942 Revision history Table 4. Document revision history Date Revision Changes 27-Oct-2021 Initial release. UM2942 - Rev 1 page 16/20... -
Page 17: Table Of Contents
UM2942 Contents Contents Getting started ..............2 Features . -
Page 18: List Of Tables
UM2942 List of tables List of tables Table 1. STEVAL-IOD04KT1 bill of materials ............12 Table 2. -
Page 19: List Of Figures
UM2942 List of figures List of figures Figure 1. STEVAL-IOD04KT1 evaluation kit ............1 Figure 2. - Page 20 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
