Operations & Service Manual

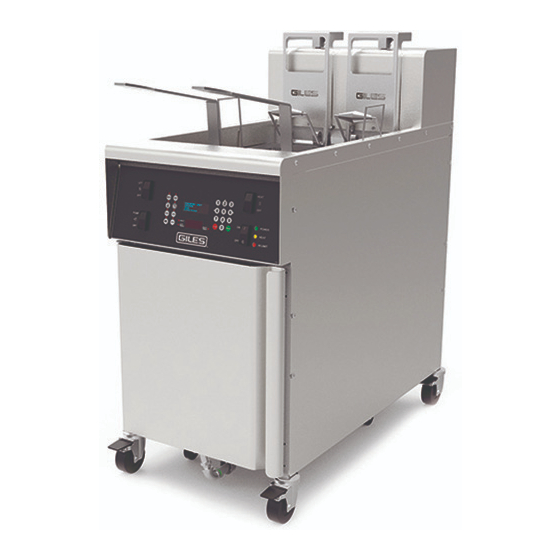

GBF−70 Electric Fryer
Single Unit
Banked Units
Double or Triple
ISO 9001 Registered • Committed to Quality
2750 Gunter Park Drive West • Montgomery, AL 36109 USA
Phone: 334.272.1457 • Toll Free: 800.554.4537
(USA & Canada Only)
Fax: 334.239.4117 • Website: www.gfse.com
Printed in USA, Form No.66320 (Rel. Date: Nov.2019, Rev. A)
