88 5660 89

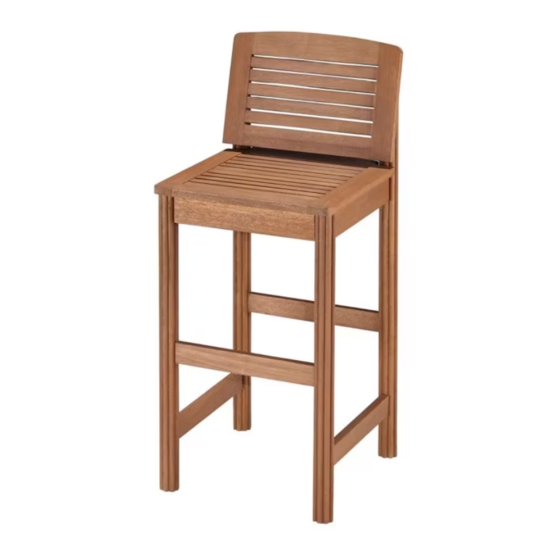

Bali Hai Bar Stool
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Backrest
1 pc.
B.
Seat
1 pc.
Hardware List
Small
Hex Wrench
1 pc.
Key Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
C.
Leg
1 pc.
E.
Stretcher
1 pc.
F.
Stretcher
2 pcs.
Wood Screw
6 pcs.(+1 extra)
servicedesk@homestyles-furniture.com
Head Cap Bolt
(Short)
2 pcs.(+1 extra)
Head Cap Bolt
2 pcs.(+1 extra)
D.
Leg
1 pc.
Head Cap Bolt
(long)
6 pcs.(+1 extra)
Cross Dowel
6 pcs.(+1 extra)
Advertisement
Table of Contents
Related Manuals for Home Styles Bali Hai Bar Stool
Summary of Contents for Home Styles Bali Hai Bar Stool
- Page 1 6 pcs.(+1 extra) 2 pcs.(+1 extra) 6 pcs.(+1 extra) 1 pc. Cross Dowel Head Cap Bolt Key Wrench 6 pcs.(+1 extra) 2 pcs.(+1 extra) 1 pc. Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 2 Assembly Instructions IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the floor.
-
Page 3: Care Instructions
CARE INSTRUCTIONS IMPORTANT – READ CAREFULLY RETAIN THIS INFORMATION FOR FUTURE REFERENCE Advisory Notes • Periodic structural checks of this furniture should be undertaken. Do not use if you have any doubts about its fitness for purpose. • Care should be exercised so as not to trap fingers in any of the hinged parts of this furniture. -
Page 4: Maintenance
Maintenance In order to maintain the appearance of the wood, regular coatings of linseed oil must be applied. The frequency will depend on the weather conditions experienced. 1. Ensure that you refer to the manufacturers guidelines of the linseed oil that you use. -
Page 5: Part List
4 pcs. Hardware List Head Cap Bolt Small Wood Screw Key Wrench 20 pcs.(+1 extra) Hex Wrench 4 pcs.(+1 extra) 1 pc. 1 pc. Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com... - Page 6 Assembly Instructions 2/3 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the floor.
- Page 7 Assembly Instructions 3/3 Head Cap Bolt STEP 3 Attach Side Panel (C) to unit with Head Cap Bolts. Head Cap Bolt STEP 4 Attach unit from Step 1 to the unit with Head Cap Bolts.
- Page 8 CARE INSTRUCTIONS IMPORTANT – READ CAREFULLY RETAIN THIS INFORMATION FOR FUTURE REFERENCE Advisory Notes • Periodic structural checks of this furniture should be undertaken. Do not use if you have any doubts about its fitness for purpose. • Care should be exercised so as not to trap fingers in any of the hinged parts of this furniture.
- Page 9 Maintenance In order to maintain the appearance of the wood, regular coatings of linseed oil must be applied. The frequency will depend on the weather conditions experienced. 1. Ensure that you refer to the manufacturers guidelines of the linseed oil that you use.
