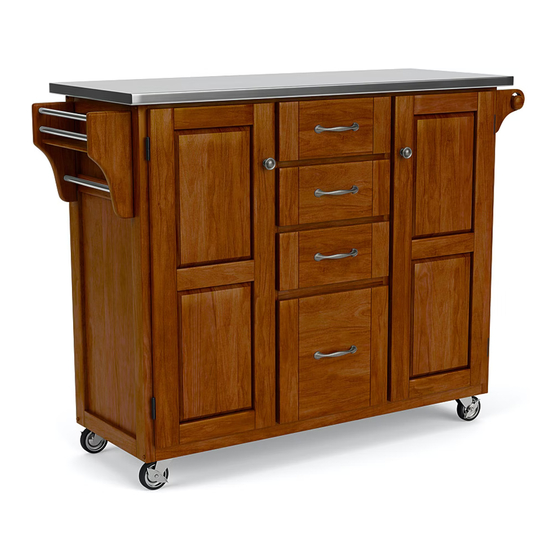

Home Styles 9100 Series Assembly Instructions

Black granite top

Hide thumbs Also See for 9100 Series:

88 9100 104C

Black Granite Top

IMPORTANT NOTE

Carefully remove all the parts from the carton and put

them individually on a soft cloth to prevent scratches

or other damages occurring to the wood parts.

We have taken great care in the design of this

product and request that you carefully and strictly

follow our assembly instructions to ensure a

completed product as it was designed.

Part List

Top

1 pc.

Home Styles Consumer Assistance: www.homestyles-furniture.com,

servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319

9100 Series

Support Top

2 pcs.

M6x30

Head Cap Bolt

6 pcs. (+1 extra)

Table of Contents

Do you have a question about the 9100 Series and is the answer not in the manual?

Page 1 9100 Series 9100 Series completed product as it was designed. Top Assembly Instructions Part List Support Top Support Top 2 pcs. 1 pc. Hardware List M6x30 Head Cap Bolt 6 pcs. (+1 extra) Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
Page 2 9100 Series Top Assembly Instructions STEP 1 Put back end of Top Supports (V) into the pre-drilled holes in unit and attach with Head Cap Bolts. Head Cap Bolt STEP 2 Place Top (W) onto the unit and then tighten all Head Cap Bolts.
Page 3 We have taken great care in the design of this product and request that you carefully and strictly 9200 Series follow our assembly instructions to ensure a Top Assembly Instructions completed product as it was designed. Part List 1 Pc. Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
Page 4 9200 Series Top Assembly Instructions Steel Plate Connector Flat Washer Spring Washer Head Cap Bolt (short) Figure 1 STEP 1 Remove the drawers from the unit. Place Top (W) onto the unit and attach it to the body with the Steel Plate Connectors, Flat Washers, Spring Washers and Head Cap Bolts (short).

88 9100 104c
