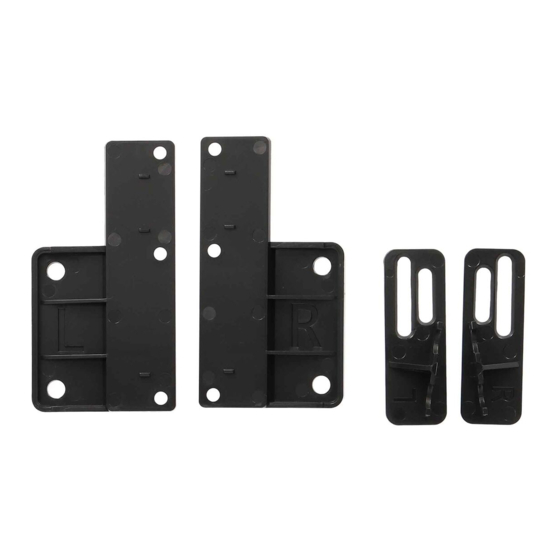

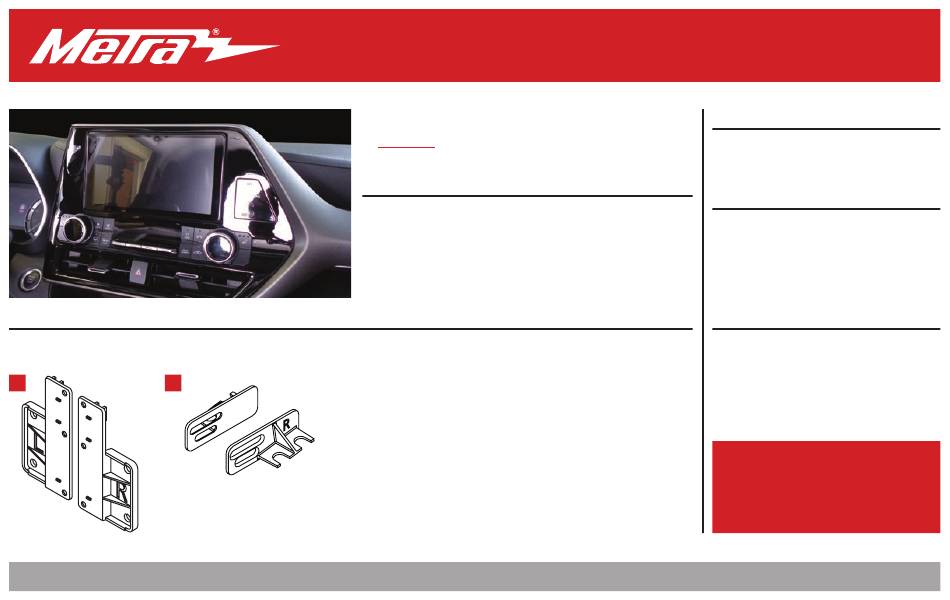

KIT COMPONENTS
• A) Screen brackets • C) Radio chassis brackets
A
B
Metra. The World's Best Kits.
®
Toyota Highlander
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Specifically designed for Pioneer 9" modular radios †
† Refer to the radio manufacturer for current models
MetraOnline.com
2020
(Without factory 12.3 inch screen)
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
109-TO7
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1765 non-amplified
See metra-online.com or axxessinterfaces.com
for audio and SWC interface options
Antenna Adapter: 40-LX11
TOOLS REQUIRED
• Panel removal tool • 10mm socket
• Phillips screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 11/10/20 INST109-TO7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 109-TO7
Summary of Contents for Metra Electronics 109-TO7
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/10/20 INST109-TO7...
- Page 2 DASH DISASSEMBLY 1. Unclip and remove the trim behind the radio. Remove (4) 10mm screws exposed. (Figure A) 2. Unclip, unplug, and remove the radio and panel. (Figure B) 3. Remove (4) Phillips screws securing the factory radio to the dash panel. (Figure C) Continue to Kit Assembly (Figure A)
- Page 3 KIT ASSEMBLY Note: For steps 1 and 2, reference the 5. Locate the factory wiring harness and installation manual provided with the radio antenna connector in the dash and for which hardware to use. The display complete all necessary connections to screen and radio chassis use two different the radio.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/10/20 INST109-TO7...
