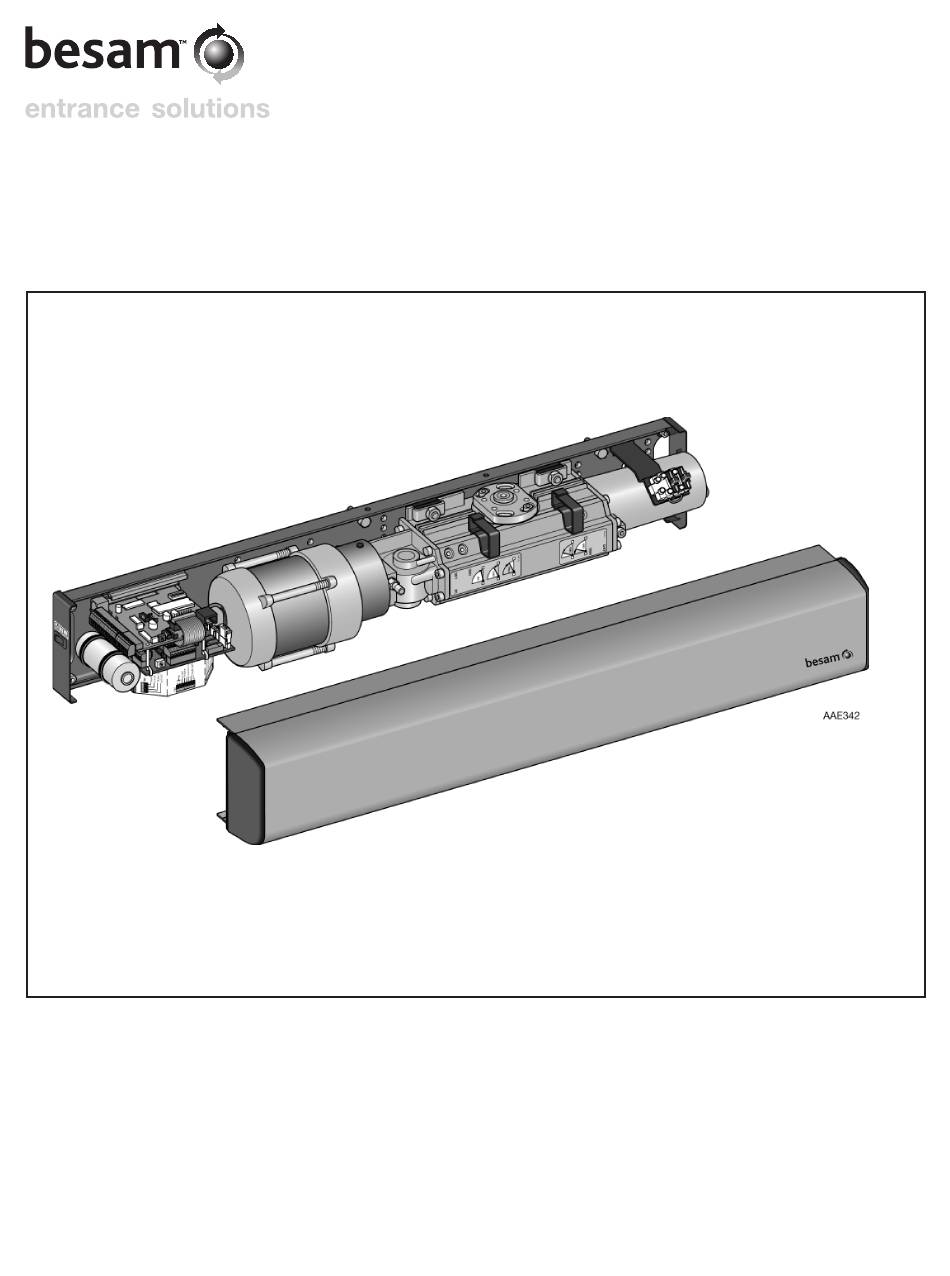

Besam PowerSwing
Installation, Adjustment and Troubleshooting Manual
Complies with ANSI/BHMA A156.10 standard for Power Operated Pedestrian Doors and A156.19
standard for Power Assist and Low Energy Power Operated Doors. UL 325 Listed.
US23-0922-02 10-21-2002
© Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerSwing and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Besam PowerSwing

Summary of Contents for Besam PowerSwing

  • Page 1 Complies with ANSI/BHMA A156.10 standard for Power Operated Pedestrian Doors and A156.19 standard for Power Assist and Low Energy Power Operated Doors. UL 325 Listed. US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 2: Revision

    01-18-2001 10-21-2002 10-21-2002 10-21-2002 10-21-2002 01-18-2001 01-18-2001 10-21-2002 01-18-2001 10-21-2002 10-21-2002 01-18-2001 10-21-2002 10-21-2002 01-18-2001 10-21-2002 01-18-2001 10-21-2002 10-21-2002 01-18-2001 01-18-2001 10-21-2002 01-18-2001 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 3: Table Of Contents

    Connection of Airing position to extension unit EXA Connection of PassPort presence sensor Cover Installation on fi re doors 33-38 Troubleshooting 39-40 Installation examples PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 4: Important Information

    Instructions, design, specifi cations and illustrations which are contained in this manual are not binding. Rights reserved for changes without previ- ous notice. 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 5: Introduction

    This manual contains the necessary details and instructions for the installation, maintenance and service of the Besam PowerSwing. The Besam PowerSwing is suitable for most types of external and internal swing doors. The operator can be mounted to walls on either side of the door for pull or push action and is suitable for single or double doors fi...

  • Page 6: Technical Specifi Cations

    * 716 is the European short header package. 746 allows for the operator to be mounted to the adapter plate with the addition of 2 cover clips. 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 7: Models

    Pushing and pulling arm system shown. It is also possible to use two pushing or two pulling arm systems. PowerSwing US23-0922-02 01-18-2001 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 8: Part Identifi Cation & Options

    Arm system, PULL-P P/N: 100 134 BK This arm system is delivered with drive arm, guide shoe door fi tting, and panic break-out. 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 9 Part Identifi cation & Options PowerSwing US23-0922-02 01-18-2001 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 10 Part Identifi cation & Options 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 11: Mechanical Installation

    The short operator package requires the installer to follow the ”Mounting Plate Applications” installation procedure. For jamb to jamb applications (full length header box surface applied) the installer must use ”Adapter Plate Application”. PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 12 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 13: Installation With Adapter Plate

    Use a 1” hole saw to cut the round hole for the output spindle. Use a sabre saw to make two straight cuts. PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 14 Arm System PULL-P Mount arm system in accordance with the instructions and illustrations on pages 18-19 together with separate instructions enclosed with the arm system. 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 15: Operator With Arm System Push

    1. Remove the door fi tting from the arm system. 2. Screw the door fi tting to the door leaf tight. Hinge center line Drive shaft center line PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 16 3. Turn the drive arm until the telescopic part is at an angle of 90° to the door. 4. Tighten the telescopic part with the lock screws. ➀ Telescopic part ➁ Drive arm 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 17 Open the door by hand to its maximum extent. Then let it close of its own accord. Check that the opening/closing movements are smooth and free. Continue on page 20 for electrical installation. PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 18: Operator With Arm System Pull

    4. Remount the four screws in the bearing sleeves and dismantle the washers and screws. ➀ Washer and screw ➃ Tool ➁ Screw (4 pcs) ➄ Setting lines ➂ Bearing sleeve (2 pcs) 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 19 3. Remove the template. 4. Tap, plug or re in force with rivnuts and screw the drive unit tight. Hinge center line Drive shaft center line PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 20 fi tting. Check also that the complete arm system operates without problems. 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 21 Mechanical Installation, PULL-P PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 22: Electrical Connection

    Push & Go, key impulse, presence impulse, inner and outer impulse, off, exit, open and presence detection for both doors on a double door application etc. 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 23 Connect the main power to the main terminal block. Note! Accessories and activation units must not be connected until the adjustment of speeds etc. has been carried out. Main power PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 24: Connection Of Control Units

    A four-pole cable (not enclosed) has to be connected between TB2 on the CSDA and TB6 on the CSDA-S. Note: Two CSDA controls can be used with signal inputs shared! Main power Main power 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 25 Remove program jumper B2 when connecting to terminal No. 8. These terminals will not be 0 V DC when ”kill” (terminals Nos. 1-2) on the CSDA is activated. PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 26: Start-Up

    Note! Opening the screw too much may delay the opening. 6. Connect the activation units. 7. Check that the installation complies with valid regulations and requirements from the authorities. 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 27 The limit switch can be slid into any of the grooves at the motor side of the outgoing shaft. PowerSwing US23-0922-02 01-18-2001 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 28: Connection Of Activation Units

    Start-Up Connection of Activation Units and Accessories 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 29: Connection Of Mat To Extension Unit Exa

    To obtain OPD safety set the function selectors FS:1 = ON, FS:2 = ON, FS:3 = ON and FS:4 = OFF on the EXA. PowerSwing US23-0922-02 01-18-2001 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 30: Connection Of Push & Go To Extension Unit Exa

    1. Give opening impulse on “Switch 1”. 2. Give stop impulse on “Switch 2” at the required airing angle during the open- ing. 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 31: Connection Of Passport Presence Sensor

    Start-Up Connection of PassPort Presence Sensor PowerSwing US23-0922-02 10-21-2002 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 32: Cover

    ➀ Ground/Fastening screw ➁ Star washer for earth connection ➂ Cover mounting clip with end plate ➃ End plates for cover ➄ Besam logotype 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 33 fi re exit hardware release button to the face of the frame where the Besam F50 Series Latch is to be installed. Also, mark a centerline from the activating plunger of the latch so it can be aligned with the mark on the frame.
  • Page 34 Fire Door Installation Follow step #5, manually hold plunger of Besam F50 Series Latch as if it were energized. Panic hardware should not activate; release plunger. Panic hardware should activate; adjust as required & tighten bolts. Drill & tap remaining mounting holes & install #10-24 bolts; this assures proper alignment.
  • Page 35 For single doors UL listed electric strike compatible with UL listed rim panic device (concealed or surface rod devices are not approved for single doors). Besam automatic fi re door accessory package, PowerSwing, is designed to be used with “A” or “B” labeled fi re doors.
  • Page 36 Besam F-50 Series Latch Operator is surface applied, mounted with push arm. (Latch, panic & wiring details) using SwingMaster style header plus operator adaptor plate. 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 37 The cable egress is a fl ex- ible metal conduit with a 1-1/4 inch minimum bend radius. PowerSwing US23-0922-02 01-18-2001 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 38: Installation On Fi Re Doors

    Fire Door Installation Installation on fi re doors 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 39: Troubleshooting

    Pump pressure too high Adjust pump pressure Low speed distance too short Increase opening angle, or Increase pre-tension of arm system PowerSwing US23-0922-02 01-18-2001 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 40 Magnetic valve - with ball and spring. Leaky valve will cause creeping close at 90°. Sticking valve will cause door stay open. 10-21-2002 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.

  • Page 41: Installation Examples

    C Expansion-shell bolt (for brick wall ➃ Plasterboard wall min. M6x85, UPAT PSEA B10/25) ➄ einforced concrete wall D Wood reinforcement E Steel beam PowerSwing US23-0922-02 01-18-2001 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 42 01-18-2001 PowerSwing US23-0922-02 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 43 PowerSwing US23-0922-02 01-18-2001 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
  • Page 44 © Copyright 2006 Besam Entrance Solutions. May not be reprinted or reproduced without permission.
