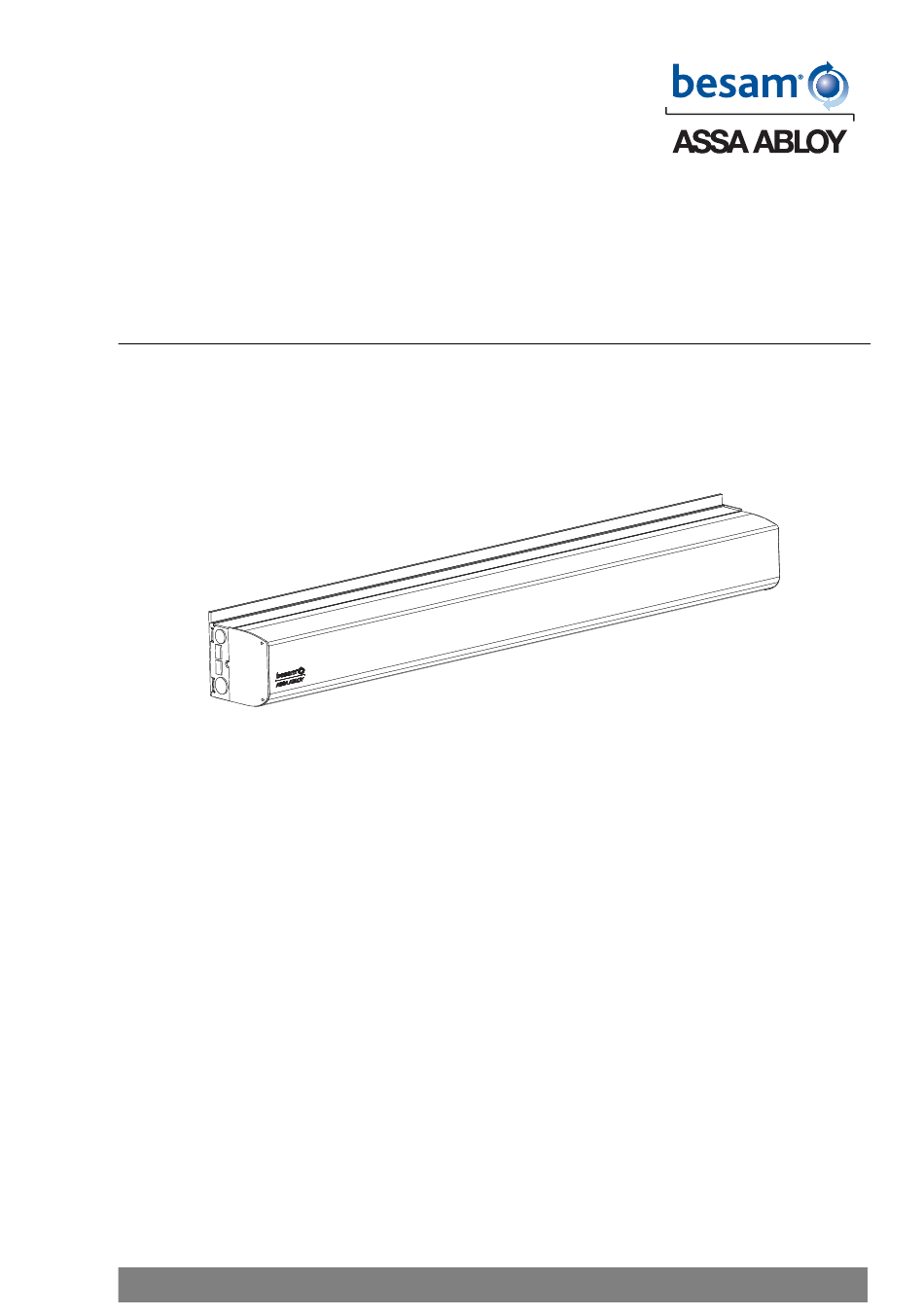

- Page 1 Besam Swing Door Operator SW200i Owners Manual Original instructions ASSA ABLOY, the global leader in door opening solutions...
-
Page 2: Table Of Contents
Other products from Besam ................... © All rights in and to this material are the sole property of Besam US Inc.. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of the applicable company within Besam US Inc.. -
Page 3: Congratulations On Your New Automatic Door
It is essential that you know your automatic door (system) and that you recognize the importance of maintaining it in compliance with applicable standards for safety. Your local Besam-authorized representative is familiar with these standards, as well as all ap- plicable local codes and Besam recommendations for power-operated pedestrian doors. Service and adjustments performed by your Besam-authorized representative, will ensure safe and proper operation of your automatic door unit. -
Page 4: Environmental Requirements
Warranty Besam warrants its products to be free from defects in material and workmanship under intended use and service for a warranty time of 12 months, beginning at time of delivery. This warranty extends only to the original buyer of the equipment. -
Page 5: Service

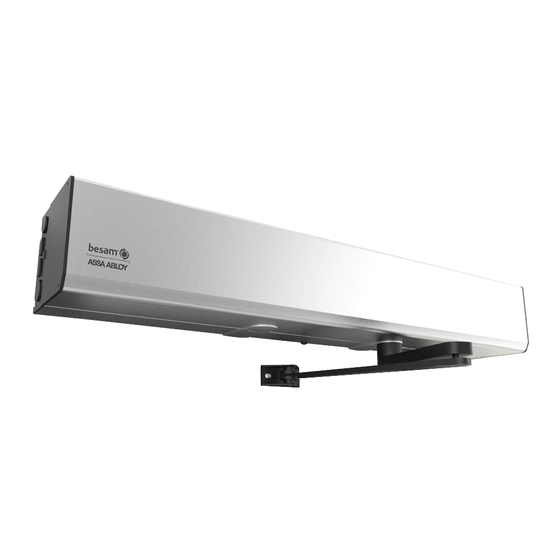

The Besam SW200i is an automatic swing door operator developed to facilitate entrances to buildings and within buildings. The SW200i is a combination of a Heavy Duty (HD) operator for large heavy doors as well as an low energy electromechanical operator (LE), mainly suitable for almost all types of internal swing doors - but also external doors. -
Page 6: How The Sw200I Works
The SW200i can be set in three or four different modes, depending on programme selector type, see table below. In fully manual use (or in case of a power failure) the SW200i acts as a normal door closer. Position Function The door is closed. -
Page 7: Regular Safety Checks
Let the door close after an impulse and make sure that no object will prevent the door from closing and locking (if demanded). Fire doors Contact your Besam representative. For contact information, see last page. Take appropriate measures. 1007717-US-1.0 Issue 2012-03-20... - Page 8 CLEANING The best way to remove dust and dirt from the SW200i is to use water and a soft cloth or a sponge. A gentle de- tergent may be used. To maintain the quality of the enamel layer, the surfaces should be cleaned once/four months period.
- Page 9 Recommended, if applicable (applied to both sides of the door) Dual Side “Activate Switch to Operate” Push side “PUSH TO ACTIVATE” Pull side “PULL TO ACTIVATE” Activation by disabled people: Recommended, if applicable Contact your Besam service representative. For contact information, see last page. 1007717-US-1.0 Issue 2012-03-20...
- Page 10 No entry, identifying one-way traffic: Mandatory, if applicable. Used in combination with label Dual Side “AUTOMATIC DOOR / CAUTION” Front Side “AUTOMATIC DOOR” – In Used in combination with label Contact your Besam service representative. For contact information, see last page. Issue 2012-03-20 1007717-US-1.0...
-
Page 11: General Accessories
Access control (not illustrated) Door stop (not illustrated) Safety accessories Even though the SW200i is installed to comply with all applicable safety regulations, it is possible to enhance safety/comfort with the following add-ons (please contact your local Besam company for detailed description). -
Page 12: Maintenance Plan
Maintenance plan As mentioned earlier in this manual, service and adjustments performed by your Besam-autho- rized representative will ensure safe and proper operation of your automatic door unit. The table below shows the recommended interval in months, when to replace parts during preventive maintenance. - Page 14 Tel: +33 1 43 77 55 66 Fax: +33 1 43 39 56 00 besam@besam.fr Besam US Inc., 1900 Airport Road, US-Monroe, NC 28110 Tel: (704) 290 5520 • Fax: (704) 290 5544 Tel: (877) 237 2687 (service) • Tel: (866) 237 2687 (sale) marketing@besam-usa.com •...
