superbrightleds WPFC-R1 User Manual

Important: Read all instructions prior to installation.

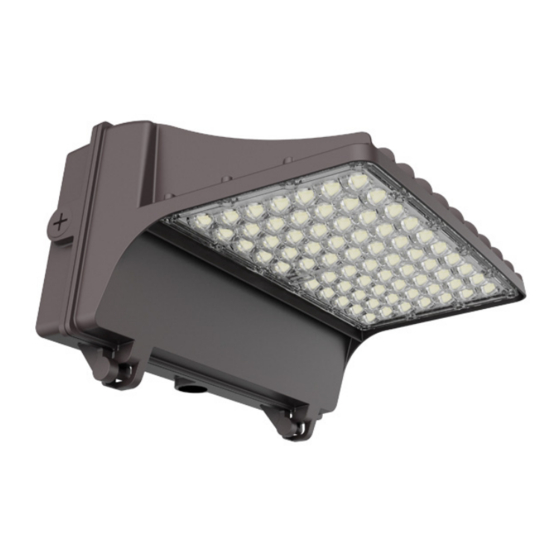

Full Cutoff LED Wall Pack
WPFC-R1-50K40-LD
Wiring Diagram
120–277 VAC Input
Line
Line
L
Neutral
L
N
Neutral
Ground
N
Ground GND
GND
0–10 V Dimming
Dim (+)
Dim (+) +
Dim (-)
+
Dim (-) -
-
Opening Fixture
Safety and Notes
• Product should be installed and serviced by a certified electrician in accordance
• To reduce the risk of electric shock, ensure that the main power source and circuit
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the fixture.
Black
Black
L
White
L
N
White
Green
N
GND Green
GND
Purple
+ Purple
Gray
+
- Gray
-
screws
with applicable national, state, and local building and electrical codes.
breakers are switched off before performing any installation or wiring procedures.
Failure to properly support fixture may result in damage or injury, for which the
manufacturer does not assume responsibility.
Specifications
Model
Operating Temperature
IP Rating
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Rev Date: V1 04/27/2021
4400 Earth City Expy, St. Louis, MO 63045
User Manual
WPFC-R1 and
WPFCCT-R1 Series
WPFC-R1 and WPFCCT-R1
-22°–113° F (-30°–45° C)
IP65
866-590-3533 superbrightleds.com
