superbrightleds WPGL Series User Manual

Important: Read all instructions prior to installation.

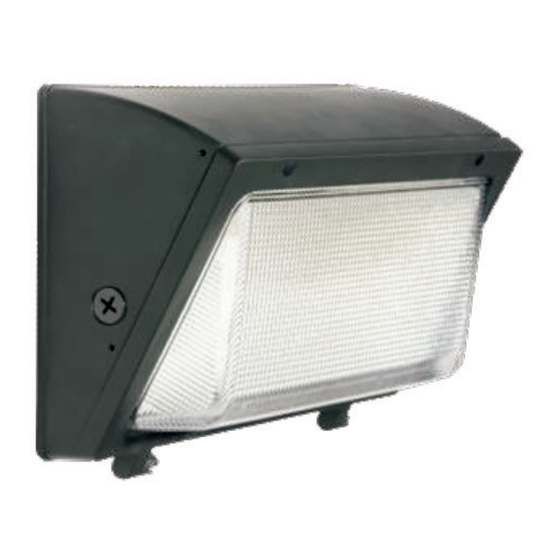

LED Wall Pack with Glass Lens
WPGL-xK60-H

Wiring Diagram

120–277 VAC Input
Line
Line
L
L
Neutral
Neutral
N
N
Ground
Ground
GND
GND
0–10 V Dimming
Dim (+)
Dim (+)
+
+
Dim (-)
Dim (-)
-
-

Opening Fixture

The fixture can be opened to bypass photocell if needed (where applicable)
or to use conduit wiring through one of the pipe plugs on the side of the unit.

Specifications

Operating Temperature
Photocell Operation (HPC models only)
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Black
Black
L
L
White
White
N
N
Green
Green
GND
GND
Purple
Purple
+
+
Gray
Gray
-
-
Model
IP Rating
Dimming
Light will turn on when the ambient light level falls below 15 lx

Safety and Notes

• Product should be installed and serviced by a certified electrician in accordance
with applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and circuit
breakers are switched off before performing any installation or wiring procedures.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the fixture.
Failure to properly support fixture may result in damage or injury, for which the
manufacturer does not assume responsibility.
• Photocell sensor can be disabled by rewiring the light to bypass the sensor on
photocell equipped models.
Rev Date: V1 11/09/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
WPGL Series
WPGL Series
-40°–113° F(-40°–45° C)
IP65
0–10 V
and will turn off when the ambient light level exceeds 60 lx.
866-590-3533 superbrightleds.com
