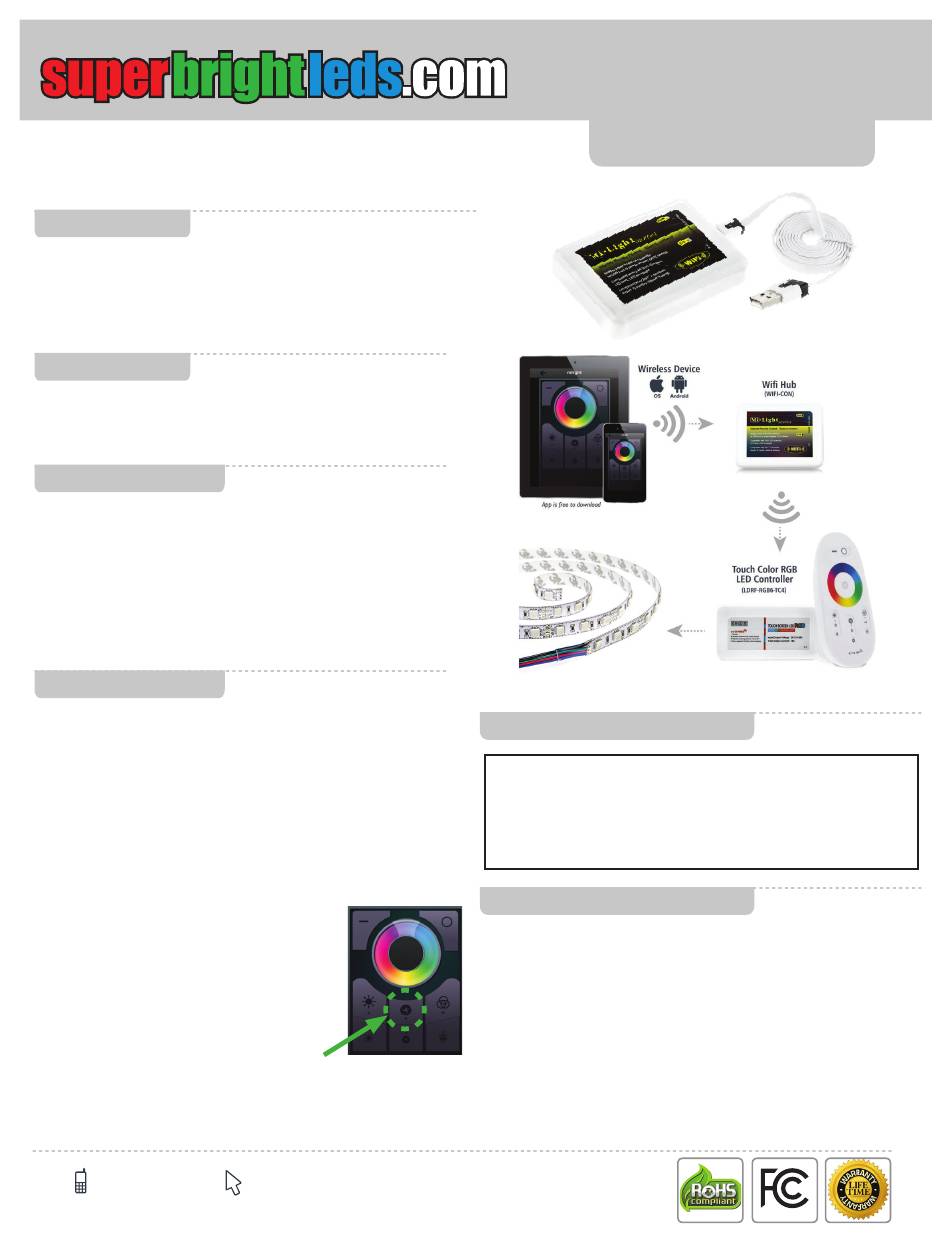

superbrightleds WIFI-CON User Manual

Important: Read all instructions prior to installation.
Wi-Fi LED Controller Hub Setup
Description
This Wi-Fi LED Controller Hub is compatible with all 2.4GHz RF LED
Wi-Fi Controllers from superbrightleds.com. After completing this simple
setup using just your smartphone or tablet, and with a Wi-Fi compatible
LED Controller, you can have complete Wi-Fi control of all of your Wi-Fi
LED lights in your home.
Parts Included
1 - Wi-Fi LED Controller Hub
1 - USB cord
1 - Free Wireless Device App (download)
Important
Go to page 3, 6 if using WIFI-CON Wi-Fi LED Controller Hub and LED
lights with your existing wireless home network. This method will allow
the user to use their existing home Wi-Fi network and also wirelessly
access and control your LEDs at the same time.
Go to page 2, 4 if using WIFI-CON Wi-Fi LED Controller hub as a
standalone wireless router to control your LED lights. If the same smart
device connects to your home Wi-Fi network, you will need to switch to
the "milight" network to control the LEDs.
Sync Smart Device
The Wi-Fi LED Controller Hub requires smart device to strips/bulbs (ex.
E27RF-RGB6-TC4) pairing to begin initial operation and to help eliminate
interference from other nearby units.
If you wish to control several strips/bulbs from a single smart device, the LED
lights (strips/bulbs) fi rst must be synced to the Wi-Fi LED Controller Hub.
Sync-ing Procedure:
1. Power all compatible LED lights (strips or bulbs), to an outlet or socket
controlled by a switch. Turn power to socket or outlet off . If there is no
externally controlled switch to outlet, unplug LED lights from power
source.
2. With the power off , grab the smart device, and
have app opened to your specifi c controller's
interface (or "monitor"). See page 2 image 6 for
reference.
3. Switch on power to bulbs or strips or plug in
power source if your set up does not have a
switch.
4. Within 3 seconds of connecting power, press
controller's sync button once on smart device.
(ex. E27RF-RGB6-TC4)
If sync procedure was successful any connected light strips or
bulbs should blink twice slowly and remote will immediately
be functional. .
866-590-3533 support@superbrightleds.com
User Manual
Wi-Fi
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. Any changes or
modifications in construction of this device which are not expressly approved
by the party responsible for compliance could void the user's authority to
operate the equipment.
Status LEDs ("SYS" and "LINK")
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
When power is fi rst applied or the controller is not connected to Wi-Fi, the
a residential installation. This equipment generates, uses and can radiate
"LINK" LED will be off , and the "SYS" LED will blink a slow, steady pace.
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
When Wi-Fi controller is connected directly to your phone's wi-fi or on your
However, there is no guarantee that interference will not occur in a particular
home Wi-Fi network, the "LINK" LED will be on, and the "SYS" LED will blink
installation. If this equipment does cause harmful interference to radio or
a slow, steady pace.
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
When controller is reset, all lights will blink rapidly after holding the reset
–Reorient or relocate the receiving antenna.
button for fi ve seconds. After the reset has been applied, only "SYS" LED
–Increase the separation between equipment and receiver.
blinks a slow, steady pace.
–Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
Part Number:
WIFI-CON WIFI-CON
