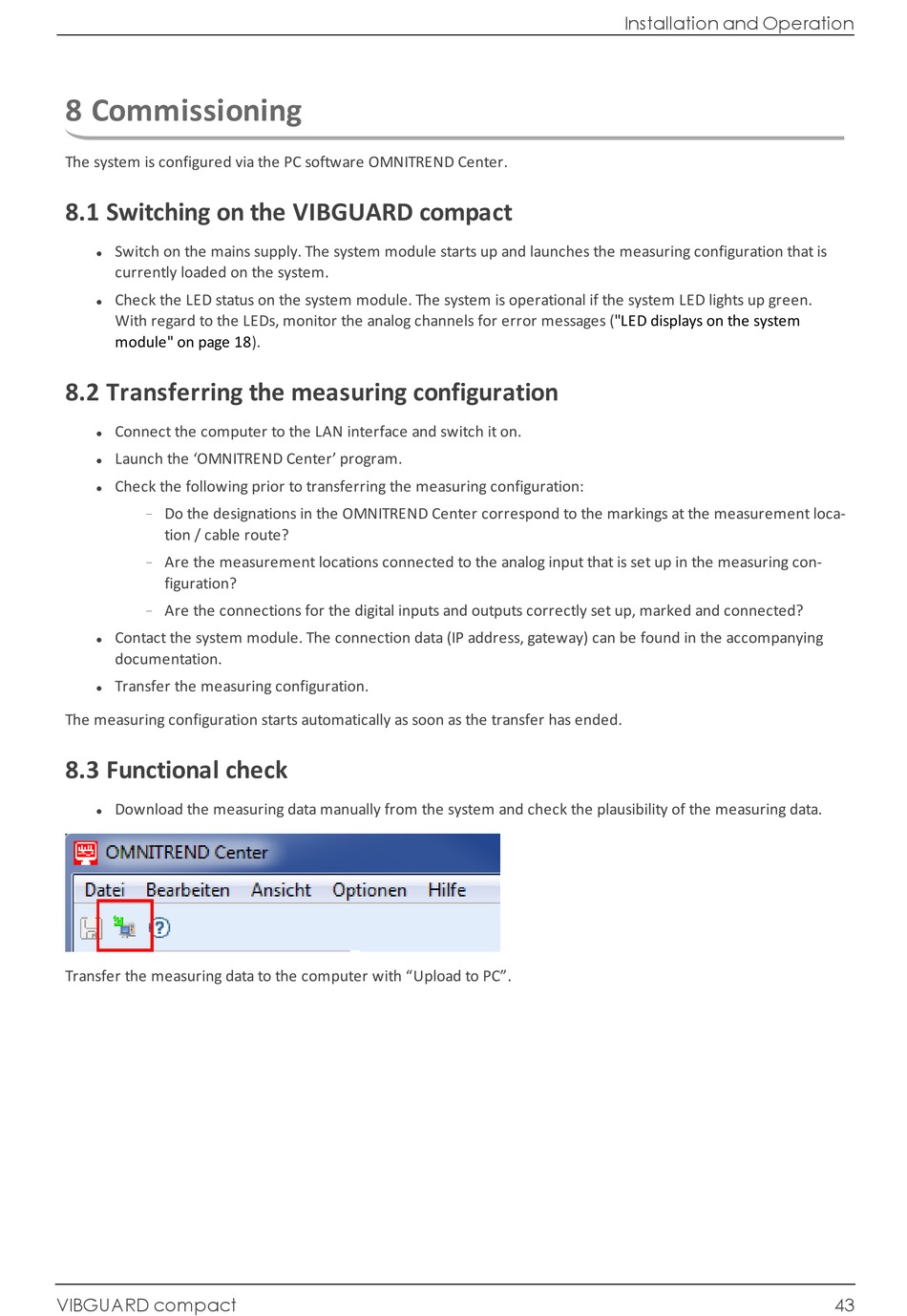

8 Commissioning

The system is configured via the PC software OMNITREND Center.

8.1 Switching on the VIBGUARD compact

Switch on the mains supply. The system module starts up and launches the measuring configuration that is
l
currently loaded on the system.
Check the LED status on the system module. The system is operational if the system LED lights up green.
l
With regard to the LEDs, monitor the analog channels for error messages
module" on page

8.2 Transferring the measuring configuration

Connect the computer to the LAN interface and switch it on.
l
Launch the 'OMNITREND Center' program.
l
Check the following prior to transferring the measuring configuration:
l
Do the designations in the OMNITREND Center correspond to the markings at the measurement loca-
tion / cable route?
Are the measurement locations connected to the analog input that is set up in the measuring con-
figuration?
Are the connections for the digital inputs and outputs correctly set up, marked and connected?
Contact the system module. The connection data (IP address, gateway) can be found in the accompanying
l
documentation.
Transfer the measuring configuration.
l
The measuring configuration starts automatically as soon as the transfer has ended.

8.3 Functional check

Download the measuring data manually from the system and check the plausibility of the measuring data.
l
Transfer the measuring data to the computer with "Upload to PC".
VIBGUARD compact
18).
