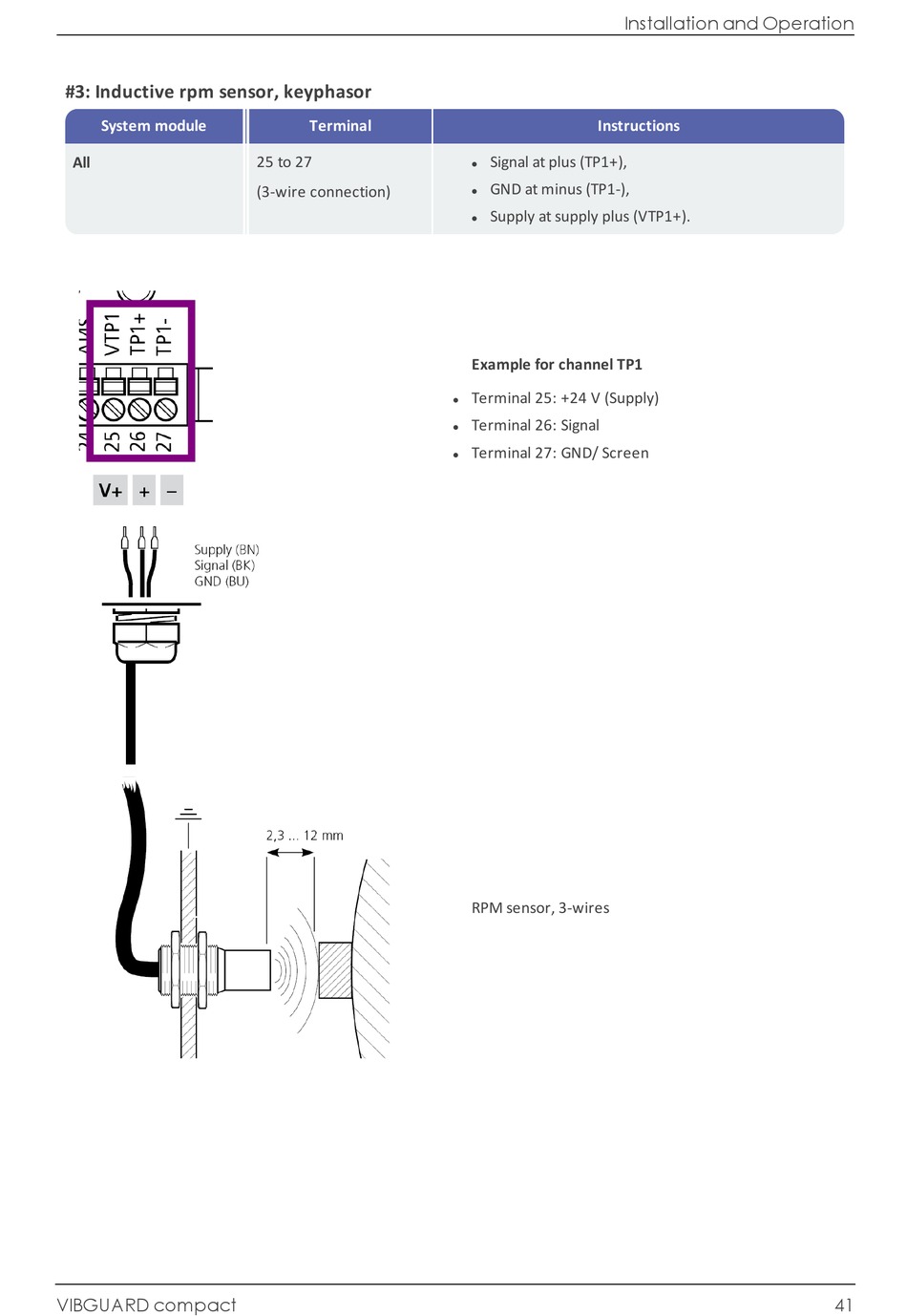

#3: Inductive rpm sensor, keyphasor
System module
All
VIBGUARD compact
Terminal
25 to 27
(3-wire connection)
Installation and Operation
Instructions
Signal at plus (TP1+),
l
GND at minus (TP1-),
l
Supply at supply plus (VTP1+).
l
Example for channel TP1
Terminal 25: +24 V (Supply)
l
Terminal 26: Signal
l
Terminal 27: GND/ Screen
l
RPM sensor, 3-wires
