Chapter 2: Jumpers and Connectors

PoE Switch Action Guidance

NViS14162 have a total of 16ch PoE ports 10/100 Mbps, 802.3af/at
compliance with a total of 240W max (PSE).
▪ 802.3af support 16 ports @ 15W
▪ 802.3at support 8 ports @ 30W
▪ **Note: The 16ch PoE ports of NViS14162 are divided into 2 groups
(A&B) of 8ch PoE switch and the deployment of Group A and Group B
are independent and cannot be mixed. For the following example, the
PoE switch deployment guidance will be based on group A and Group B.

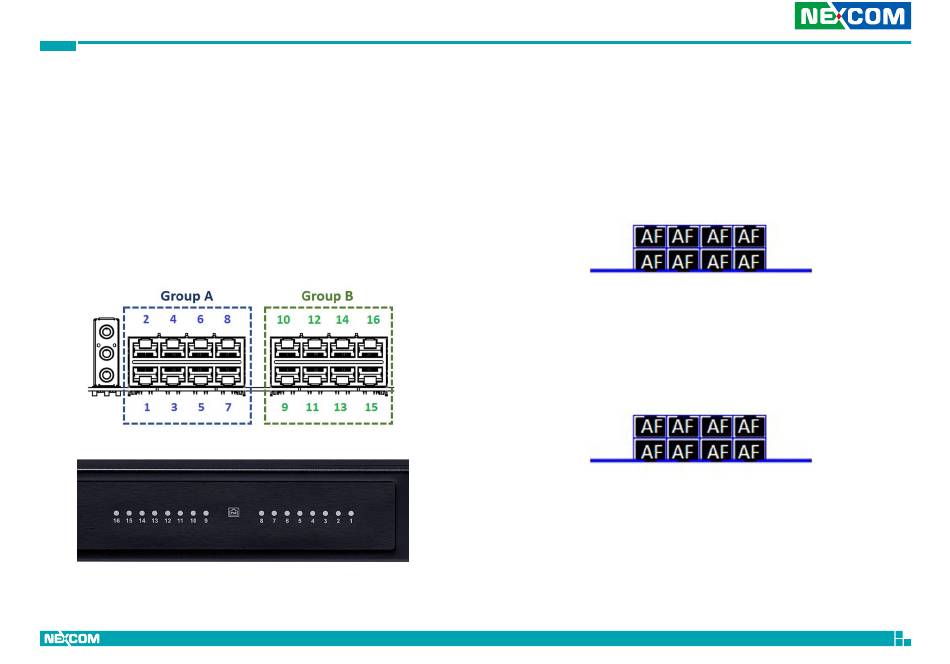

PoE Switch Connecter Define (Rear IO)

PoE Switch LED Indicator Status (Front Side)

▪ When the cable is plugged into the PoE port and if the device is detected,
then the LED will indicate the corresponding port.
▪ When PoE overload >120W, the LED of the last plug in PoE port will blink.
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.

PoE Switch Deployment

1. AF Mode
Group A: Port 1, 2, 3, 4, 5, 6, 7, 8
2
1
Group B: Port 9, 10, 11, 12, 13, 14, 15, 16
10
9
24
4 6 8
3 5 7
12 14 16
11 13 15
