Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External I/O Interfaces

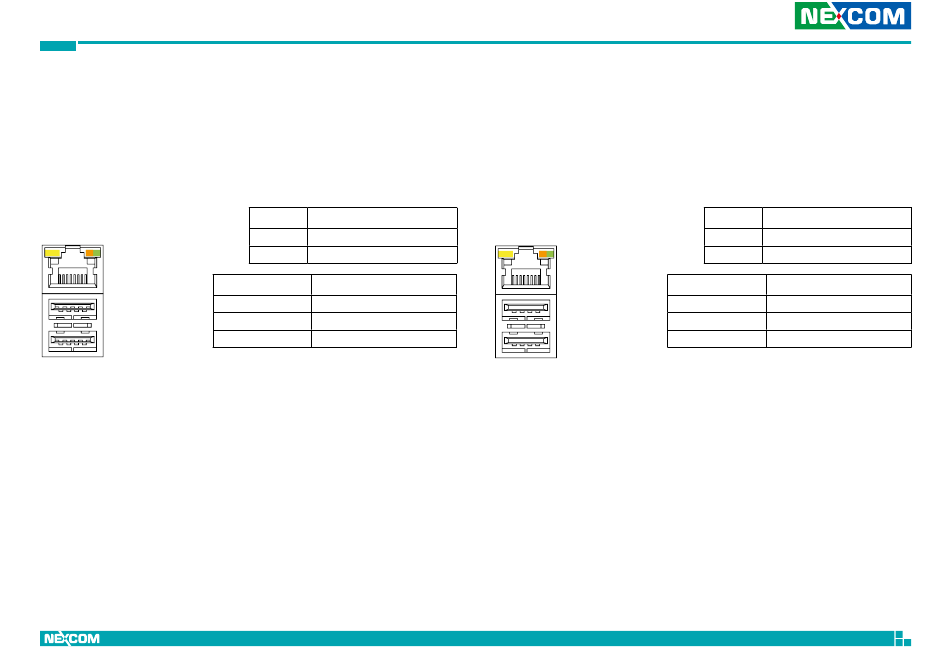

LAN1 Connector and USB 3.1 Ports
Connector type: RJ45 port with LEDs
Dual USB3.1 ports
Connector location: CON3
ACT
LINK
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Act
Status
Yellow
Data activity
Off
No activity
Link
Status
Steady Green
2.5Gbps network link
Steady Orange
1000Mbps network link
Off
100Mbps or no link
LAN2 Connector and USB 2.0 Ports
Connector type: RJ45 port with LEDs
Dual USB2.0 ports
Connector location: CON4
ACT
LINK
12
Act
Status
Yellow
Data activity
Off
No activity
Link
Status
Steady Green
1Gbps network link
Steady Orange
100Mbps network link
Off
10Mbps or no link
