Chapter 2: Jumpers and Connectors

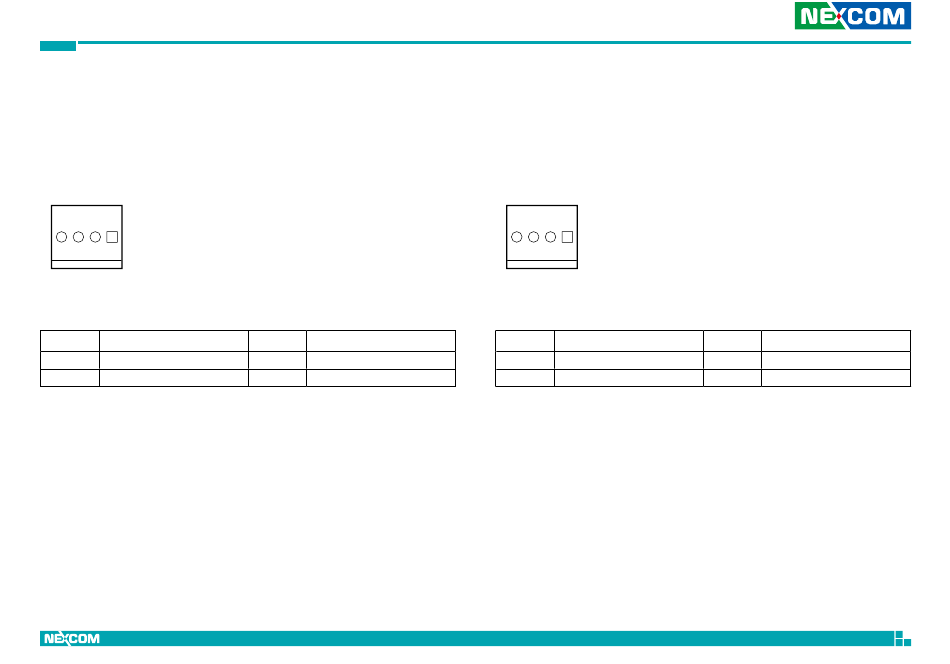

SATA Power Connector
Connector type: 1x4 4-pin header
Connector location: CN2
4
1
Pin
Definition
1
V12P0_SATA
3
GND
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
V5P0_SATA
SATA Power Connector
Connector type: 1x4 4-pin header
Connector location: CN8
4
1
Pin
Definition
1
V12P0_RAID_1
3
GND
21
Pin
Definition
2
GND
4
V5P0_RAID_1
NViS 14162 Series User Manual
