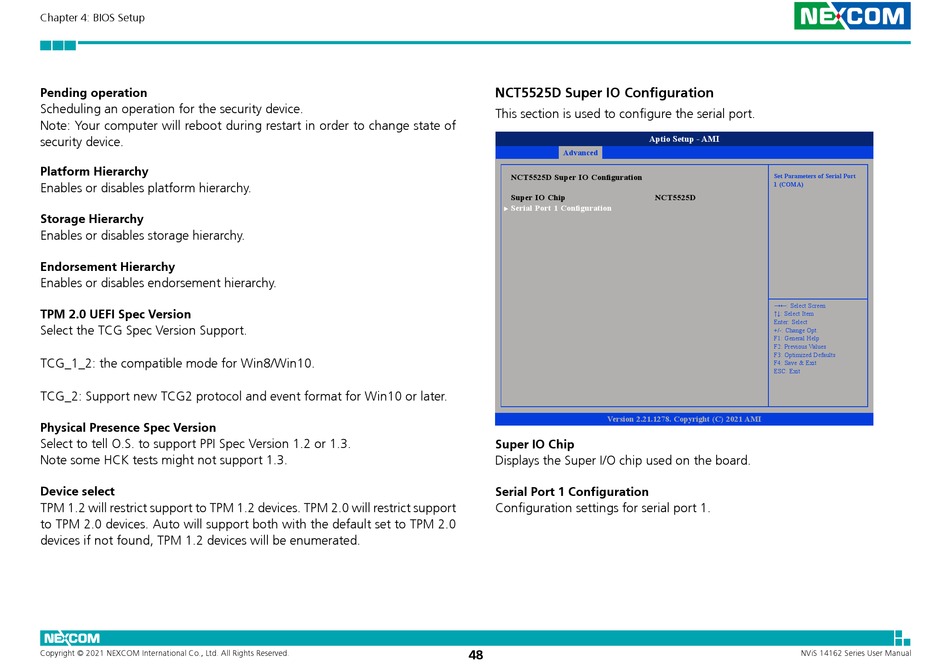

Nexcom NViS 14162 Series User Manual page 63

Chapter 4: BIOS Setup
Pending operation
Scheduling an operation for the security device.
Note: Your computer will reboot during restart in order to change state of
security device.
Platform Hierarchy
Enables or disables platform hierarchy.
Storage Hierarchy
Enables or disables storage hierarchy.
Endorsement Hierarchy
Enables or disables endorsement hierarchy.
TPM 2.0 UEFI Spec Version
Select the TCG Spec Version Support.
TCG_1_2: the compatible mode for Win8/Win10.
TCG_2: Support new TCG2 protocol and event format for Win10 or later.
Physical Presence Spec Version
Select to tell O.S. to support PPI Spec Version 1.2 or 1.3.
Note some HCK tests might not support 1.3.
Device select
TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support
to TPM 2.0 devices. Auto will support both with the default set to TPM 2.0
devices if not found, TPM 1.2 devices will be enumerated.
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
NCT5525D Super IO Configuration
This section is used to configure the serial port.
Main
Advanced Chipset
NCT5525D Super IO Configuration
Super IO Chip
Serial Port 1 Configuration

Version 2.21.1278. Copyright (C) 2021 AMI
Super IO Chip
Displays the Super I/O chip used on the board.
Serial Port 1 Configuration
Configuration settings for serial port 1.
48
Aptio Setup - AMI
Exit
PCIPnP Security
Set Parameters of Serial Port
1 (COMA)
NCT5525D
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
NViS 14162 Series User Manual
