Chapter 1: Product Introduction

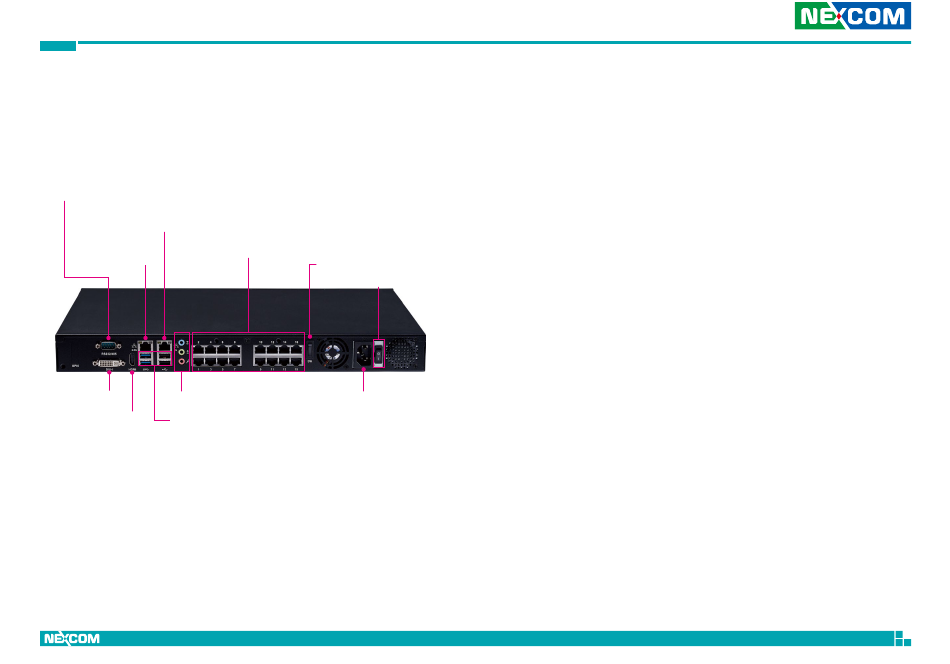

NViS 14162 Rear Panel
1x COM (RS232/RS485) Port
1.0 GbE RJ45
16x PoE LAN Ports
2.5 GbE RJ45
DVI-I
Audio Connectors
HDMI
2x USB3.1 Ports , 2x USB2.0 Ports
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
1x COM (RS232/RS485) Port (BIOS Support)
Supports RS232 and RS485 compatible serial devices.
DVI-I
Used to connect a digital LCD panel.
HDMI
Used to connect a high-definition display.
1.0 GbE RJ45/2.5 GbE RJ45
1x PWR SW
Power Supply SW
Used to connect the system to a local area network.
2x USB3.1 Ports (Under 2.5GbE) & 2x USB2.0 Ports (Under 1GbE)
Four USB ports to connect the system with USB devices.
Audio Connectors (Line in/Line out/MIC in)
Line in: Receives audio signal input
100~240V AC Input
Line out: Provides audio signal output
MIC-in: Used to connect an external microphone
16x PoE LAN Ports RJ45 Connectors
Enables communication among network clients and delivers power using
the same RJ45 to PoE-enabled edge devices.
Power Switch/Power Supply SW
Press to power on the device/Press for power from power source.
100~240V AC Input
Used to plug a AC power cord.
