Chapter 2: Jumpers and Connectors

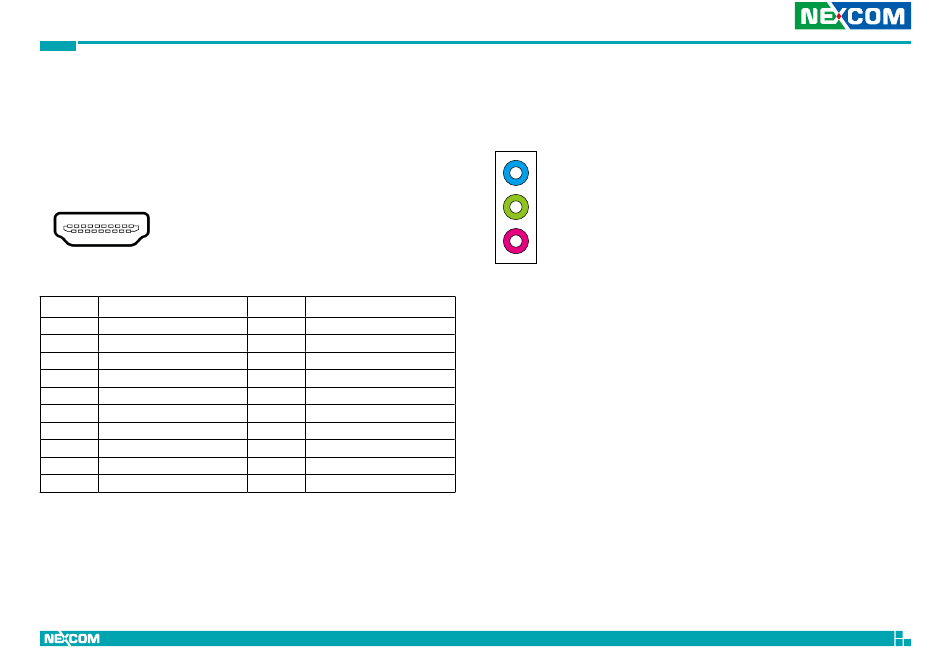

HDMI Connector

Connector type: HDMI
Connector location: CON2
19 1
18 2
Pin Definition
1 HDMI_TX2_DP_CM
3 HDMI_TX2_DN_CM
5 GND
7 HDMI_TX0_DP_CM
9 HDMI_TX0_DN_CM
11 GND
13 NC
15 HDMI_RT_SCL_SNK
17 GND
19 HDMI_RT_HPD_SNK
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 HDMI_TX1_DP_CM
6 HDMI_TX1_DN_CM
8 GND
10 HDMI_CLK_DP_CM
12 HDMI_CLK_DN_CM
14 NC
16 HDMI_RT_SDA_SNK
18 V5P0_HDMI

Audio Connectors

Connector location: AUDIO1
Line-in
Line-out
Mic-in
14
