Chapter 2: Jumpers and Connectors

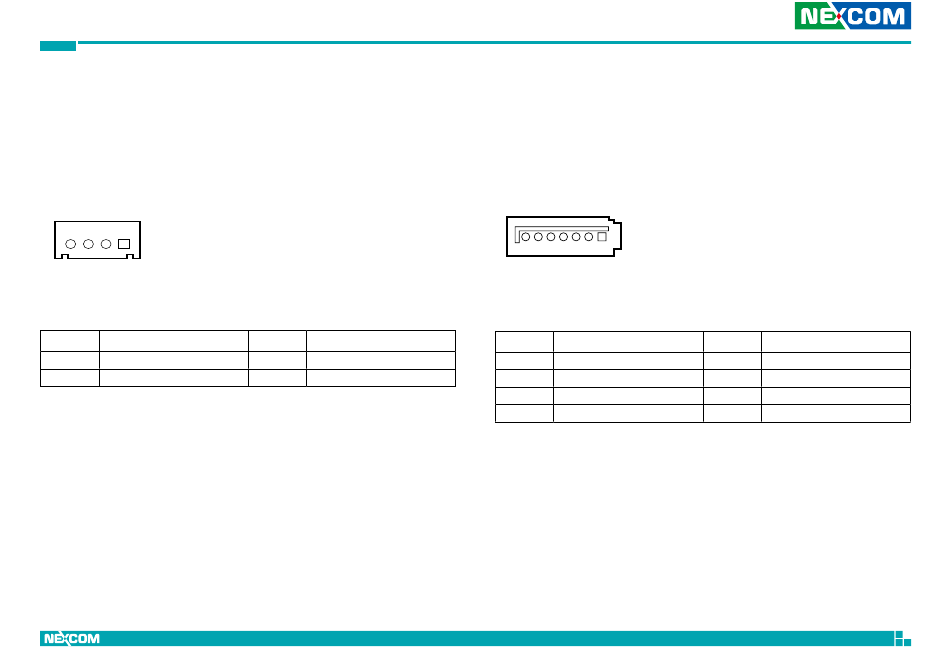

HDD/PWR LED Wire
Connector type: 1x4 4-pin header
Connector location: CN14
4
1
Pin
Definition
1
LED_PWR_PU
3
LED_HDD_LOGIC_N
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
LED_PWR_LOGIC_N
4
LED_HDD_PU
SATA Connector
Connector location: CN1
7
1
Pin
Definition
1
GND
3
SATA_CON2_TXN
5
SATA_CON2_RXN
7
GND
19
Pin
Definition
2
SATA_CON2_TXP
4
GND
6
SATA_CON2_RXP
NViS 14162 Series User Manual
