Chapter 2: Jumpers and Connectors

Connector Pin Definitions

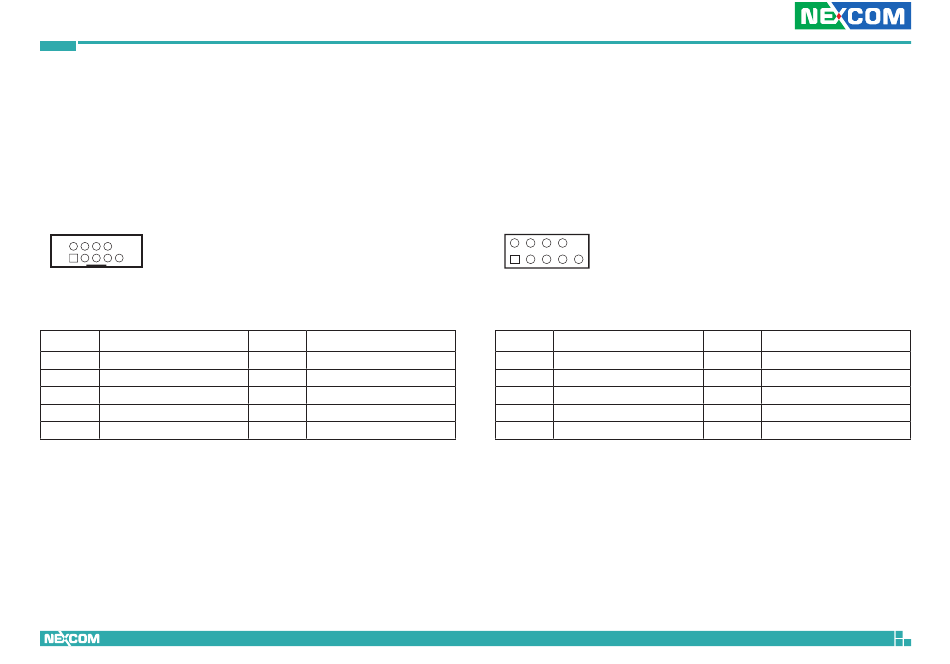

COM2 to COM6 Internal Serial Port Connectors

Connector type: 2x5 10-pin header
Connector location: COM3, COM4, COM5 and COM6
10
2
1
9
Pin
Definition
1
DCD#
3
TXD
5
GND
7
RTS#
9
Ring
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
RXD
4
DTR#
6
DSR#
8
CTS#
10
(NC)

Front Panel Connector

Connector type: 2x5 10-pin header
Connector location: F_PANEL1
2
1
9
Pin
Definition
1
HDLED+
3
HDLED-
5
GND
7
RSTCON#
9
(NC)
12
Pin
Definition
2
PLED+
4
PLED-
6
PWRBTN#
8
GND
10
(kill pin)
