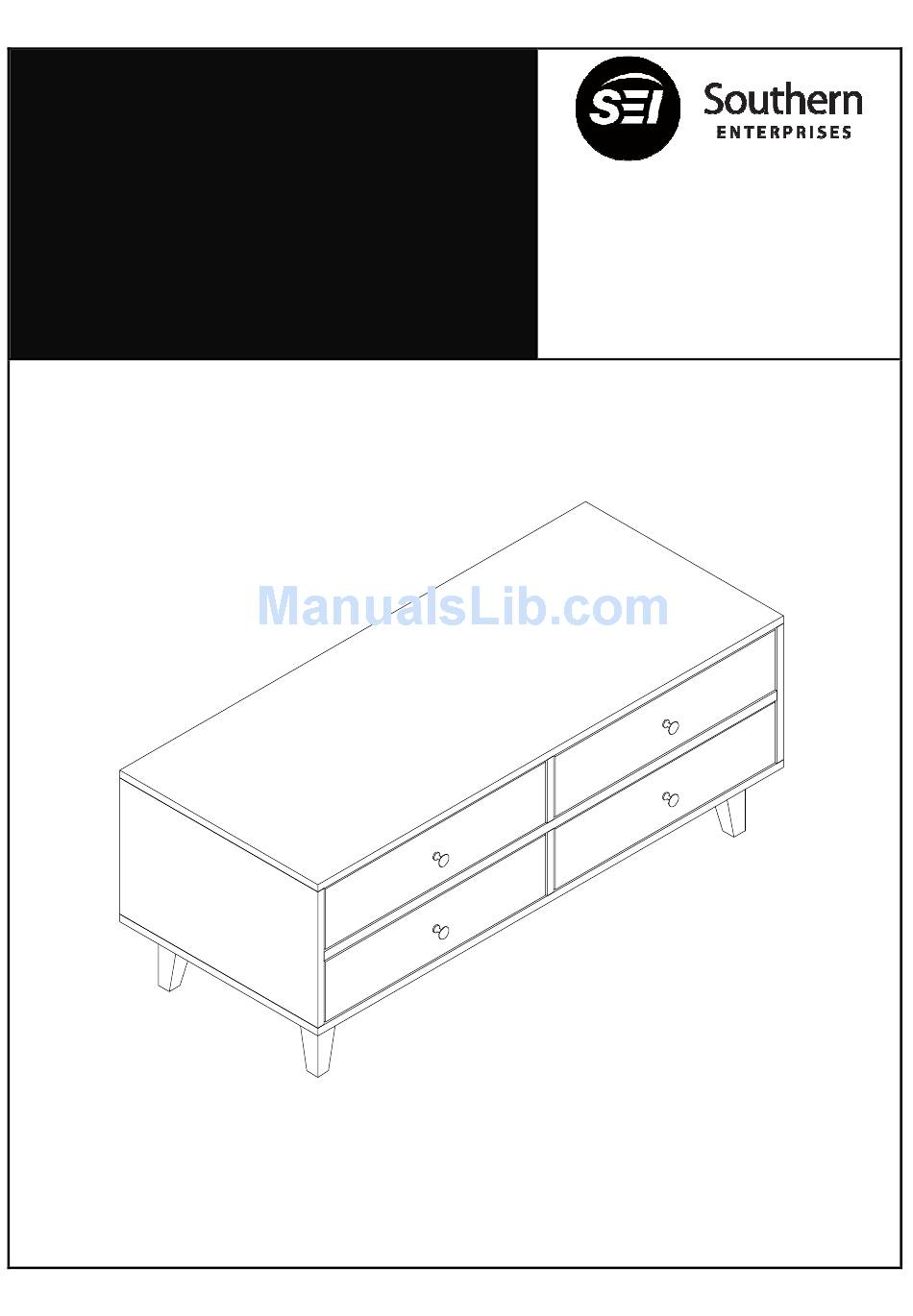

- Page 1 MS872600TX For assistance with assembly, contact: Cadman 4-Drawer TV Console Southern Enterprises Inc. Customer Service 1-800-633-5096 Assembly Instruction service@seidal.com www.seidal.com PO# 13412 Page | 1...
- Page 2 MS872600TX Cadman 4-Drawer TV Console Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 3 MS872600TX Cadman 4-Drawer TV Console Assembly Instructions Step 1: Attach Legs (G) to Bottom Frame (F) using Flat Washers (5), Spring Washers (4) and Bolts (3). Tighten Bolts with Allen Wrench (12). Step 2: Attach Support Rail (E) to Right side panel (C) and Left...
- Page 4 Step 3: Attach Bottom Frame (F) to Left Side Panel (B), Right Side Panel (C) and Divider (D) by inserting Wood Dowels (10), Barrel Nuts (2) and Bolts (1) into their corresponding holes. Note: Make sure Barrel Nuts threaded inserts are facing towards adjacent hole in order for Bolts to meet and secure with Barrel Nut.
- Page 5 Step 5: Screw Cam Bolts (6) into bottom of Top (A). Step 6: Attach Top (A) with Side Panels and Divider by inserting Wood Dowels (10) and attached Cam Bolts (6) into their corresponding holes. Insert Cam Locks (7) into their corresponding holes and turn clockwise with a Phillips screwdriver to tighten.
- Page 6 Step 7: Attach Drawer Left Panel (J) and Right Panel (K) to Drawer Back Panel (I) using Screws (11). Insert Drawer Bottom (L) into grooves of assembled drawer. Attach Drawer Support (N) and secure with Screw (11). Step 8: Attach Drawer Front (M) to Drawer Side Panels using Screws (11) as shown.
- Page 7 Step 9: Insert assembled drawers into drawer slides and assure they slide back and forth smoothly. Page | 7...
-
Page 8: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas) Mon-Fri 9am – 4pm CST, or email us at service@seidal.com.
