Summary of Contents for Southern Enterprises MS991900TX

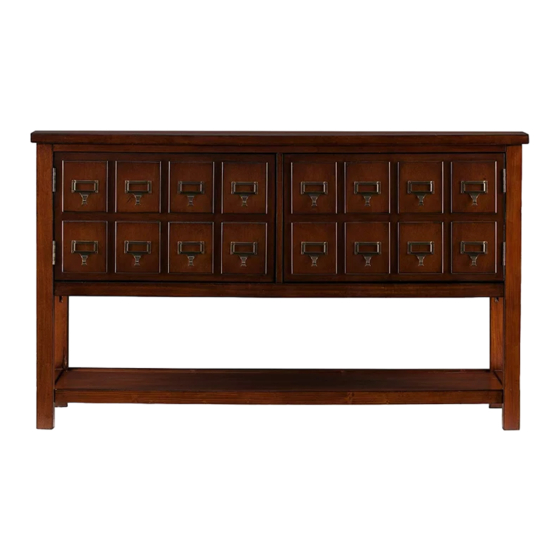

- Page 1 MS991900TX Apothecary Console /TV Stand For assistance with assembly, contact: Southern Enterprises Inc. Brown Mahogany Customer Service 1-800-633-5096 service@seidal.com www.seidal.com Assembly Instructions PO#:...
-
Page 2: Parts List
Apothecary Console /TV Stand Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures. - Page 3 Quantity of 4 Quantity of 28 Quantity of 20 ∮3x12 mm Hinge Screw Wood Dowel 8 x30 Quantity of 21 Quantity of 8 Quantity of 4 ∮3x12 mm ∮4x25 Screw Shelf Holder Screw Quantity of 2 Quantity of 2 Quantity of 2 Magnet Magnet Plate Anti-Tipping Hardware...
- Page 4 APOTHECARY CONSOLE /TV STAND Assembly Instructions Figure 1 Attach middle panel (D) to shelf ( 1 ) ( 2 ) panel (E) using cam bolts (1), cam locks (2), and wood dowels (6) Cover cam locks with adhesive pads “Please do not over tighten cam bolts, (13) as shown.
- Page 5 Attach wood top (A) to left/right side Figure 3 panels (B), (C), and cross panel (G) using cam bolts (1), cam locks (2), wood dowels (6), and screws (9) as shown. Cover cam locks using adhesive pads (13). Figure 4 Attach back panel (L) to the back of frame using screws (7) as shown.
- Page 6 Attach left door (H) and right door (I) Figure 5 to the frame using hinges (4) and screws (5) as shown. Then attach magnets (10) to the top panel using screws (7). Attach magnet plates (11) using screws (3) as shown. If console is not level, please adjust the leg’s adjustable foot pad by hand as shown.
- Page 7 Attach anti-tipping hardware (12) Figure 7 to back panels using screws. Tighten screws using Philips screwdriver. Mark two desired locations and drill two 3/16" holes on wall. Insert plastic anchors into the two holes in wall as shown. Lightly hammer plastic anchors into wall. Attach the anti-tipping hardware （12）...
- Page 8 Figure 8 Your Apothecary console /TV stand is ready to use.
-
Page 9: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts. - Page 10 DO NOT EXCEED RECOMMENDED LOAD. Use with products heavier than the maximum sizes and weights indicated may result in instability causing possible injury. This unit contains a permanent warning sticker located on under side of top shelf or inside drawer. Model: MS991900TX APOTHECARY CONSOLE /TV STAND Southern Enterprises, Inc...
