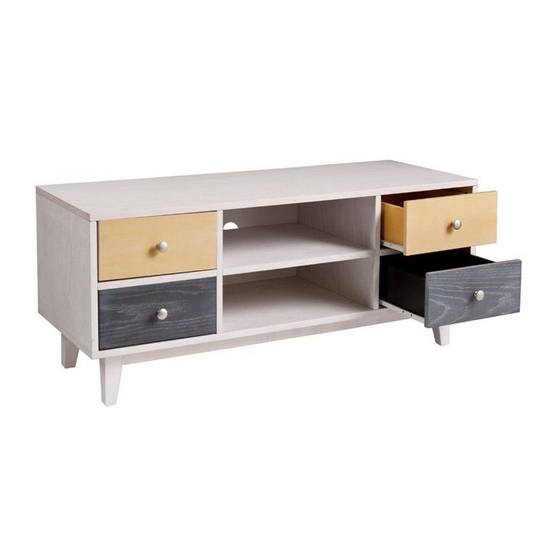

- Page 1 MS872500TX For assistance with assembly, contact: Cadman 4-Drawer TV / Media Stand Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com Assembly Instruction www.seidal.com PO# 13412 Page | 1...
- Page 2 MS872500TX Cadman 4-Drawer TV / Media Stand Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 3 MS872500TX Cadman 4-Drawer TV / Media Stand Assembly Instructions Step 1: Attach Legs (H) to Bottom Frame (G) using Flat Washers (5), Spring Washers (4) and Bolts (3) as shown. Tighten Bolts with Allen Wrench (13). Step 2: Screw Cam Bolts (6) into Left Side Panel (B) and Right Side Panel (C).
- Page 4 Step 3: Attach Right Side Panel (C) and Left Side Panel (B) to Shelf (D) by inserting Wood Dowels (10) and attached Cam Bolts (6) into corresponding holes. Insert Cam Locks (7) into corresponding holes and turn clock-wise with a Phillips screwdriver to tighten.
- Page 5 Step 5: Attach Bottom Frame (G) to assembled unit using Wood Dowels (10), Barrel Nuts (2) and Bolts (1). Note: Make sure threaded insert on Barrel Nuts are facing towards adjacent hole so Bolts are able to meet and attach to Barrel Nuts. Step 6: Attach Back Panel (I) using Screws (12).
- Page 6 Step 7: Screw Cam Bolts (6) into bottom of Top (A). Step 8: Attach Top (A) to Side Panels and Dividers by inserting Wood Dowels (10) and Cam Bolts (6) into their corresponding holes. Insert Cam Locks (7) into their corresponding holes and turn clockwise with a Phillips screwdriver to tighten.
- Page 7 Step 9: Attach Drawer Left Panel (K) and Right Panel (L) to Drawer Back Panel (J) using Screws (11). Insert Drawer Bottom (M) into grooves of Drawer Panels. Step 10: Attach Drawer Front (N) with drawer Side Panels using Screws (11). Attach Knob (8) using Bolt (9).
- Page 8 Step 11: Insert drawers onto drawer slides and ensure glide back and forth smoothly. Page | 8...
-
Page 9: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas) Mon-Fri 9am – 4pm CST, or email us at service@seidal.com.
